Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

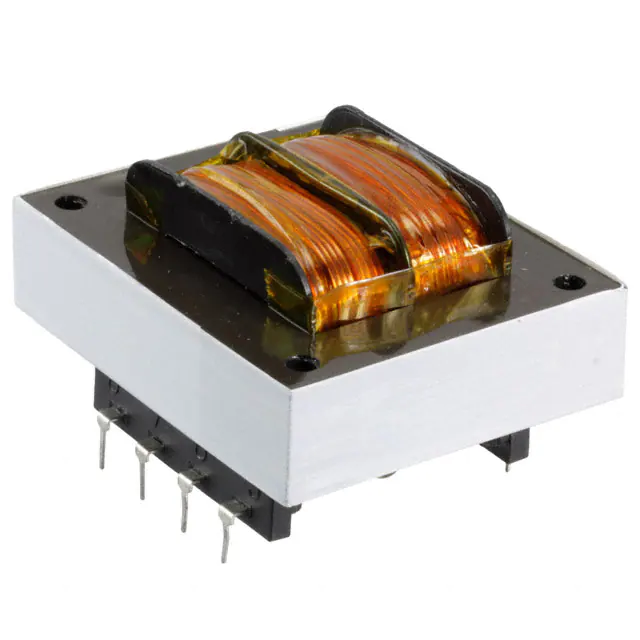

F36-65PWR XFMR LAMINATED 2.5VA TH |
1,225 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
FP34-75PWR XFMR LAMINATED 2.5VA TH |
1,065 | - |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 150mA, Series 75mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
|

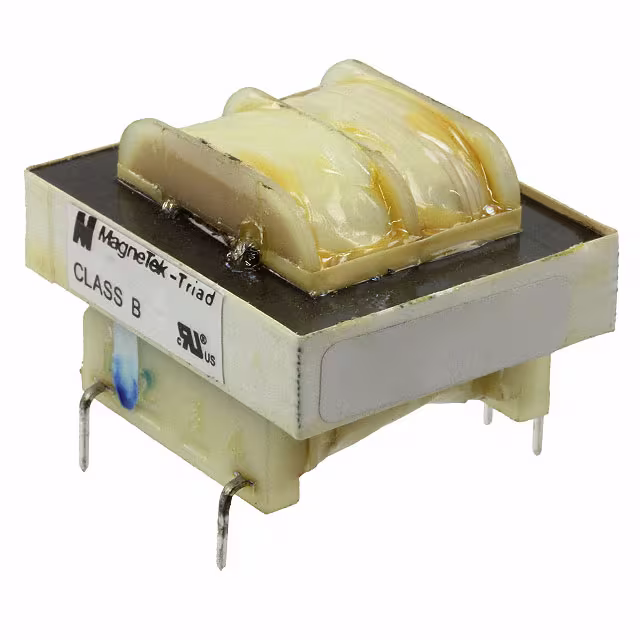

F24-100PWR XFMR LAMINATED 2.5VA TH |
2,624 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|

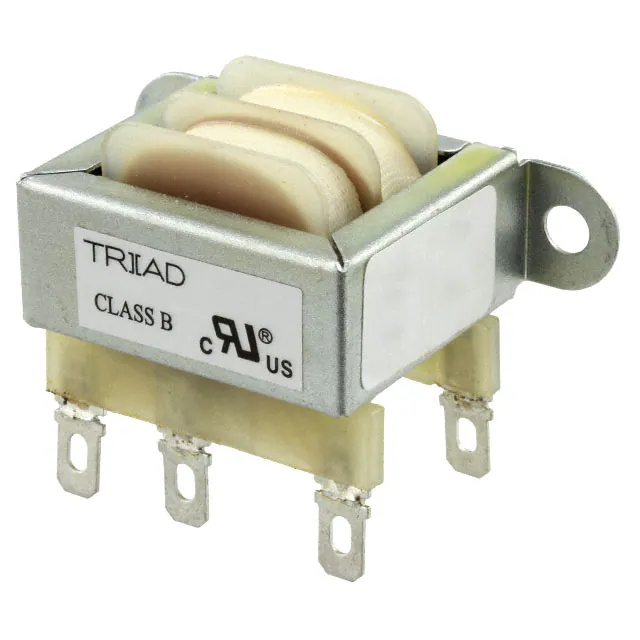

F3-24PWR XFMR LAMINATED 2.4VA CHAS MT |
4,507 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 100mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|

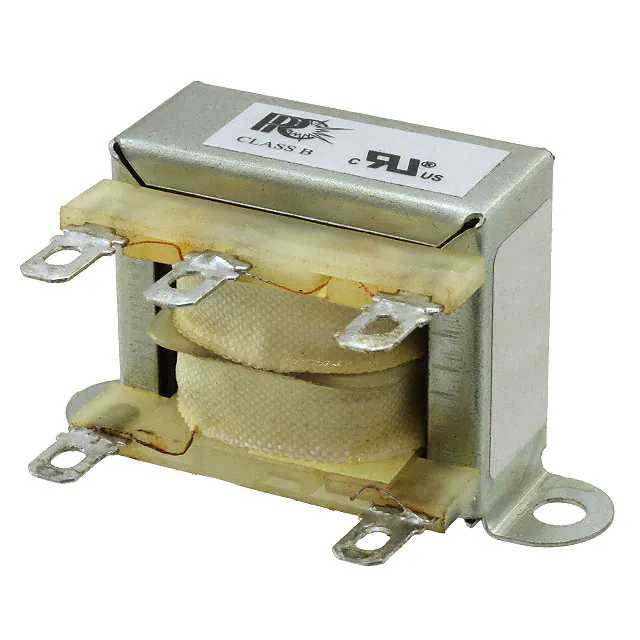

F3-36PWR XFMR LAMINATED 2.4VA CHAS MT |
1,056 | - |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 36V | 65mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC | 0.25 lb (113.4 g) |
|

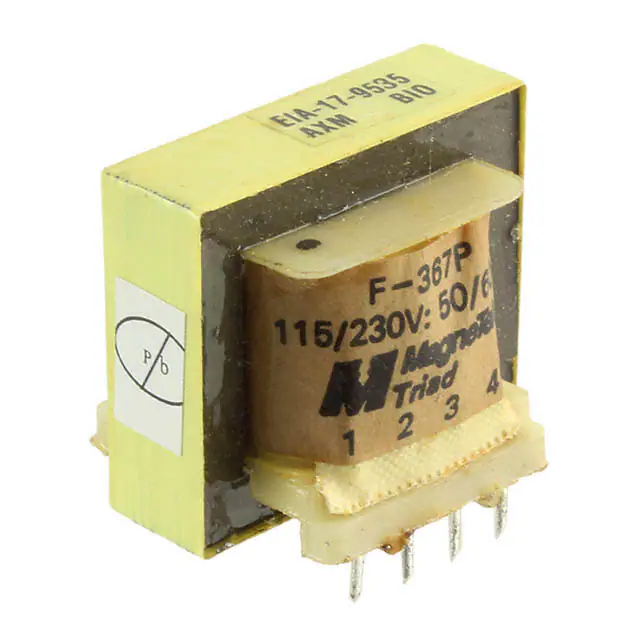

F-367PPWR XFMR LAMINATED 1.5VA TH |
3,403 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 13mA, Series 6.5mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms | 0.25 lb (113.4 g) |
|
TCT3-04E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
4,742 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 12V | 208mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
FS24-045PWR XFMR LAMINATED 1.1VA TH |
4,242 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
F-113XPWR XFMR LAMINATED 1.8VA CHAS MT |
3,430 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 150mA | Single | Single | No | 1.8VA | Chassis Mount | Wire Leads | 60.32mm L x 34.93mm W | 34.93mm | 1500Vrms | 0.4 lb (181.44 g) |
|

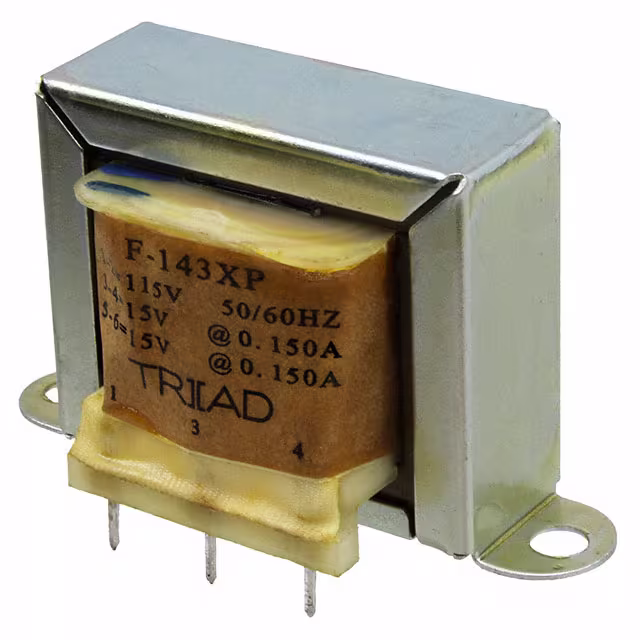

F-143XPPWR XFMR LAMINATED 4.5VA CHAS MT |
4,727 | - |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 300mA, Series 150mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
