Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

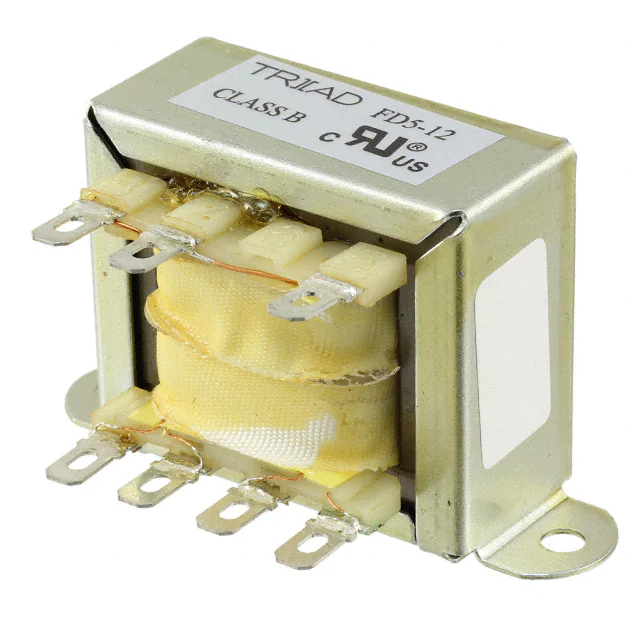

FD5-12PWR XFMR LAMINATED 12VA CHAS MT |
3,372 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 12.6V | 1A | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|

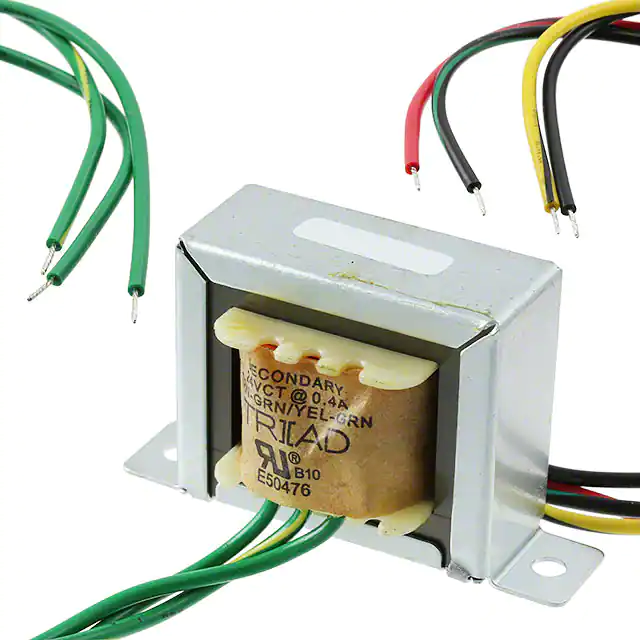

F-3117XPWR XFMR LAMINATED 9.6VA CHAS MT |
3,589 | - |
|
Datasheet | Single Secondary | Bulk | Active | Laminated Core | 115V, 230V | 24V | 400mA | Dual | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.42mm L x 38.10mm W | 41.28mm | 1500Vrms | 0.75 lb (340.19 g) |
|

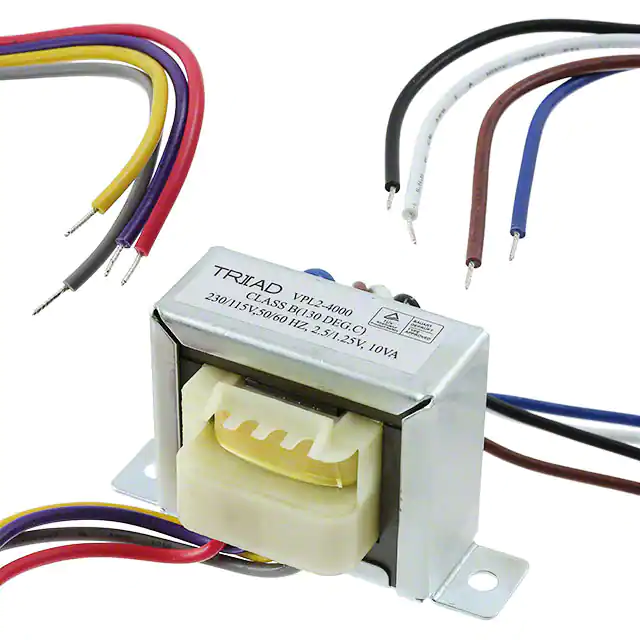

VPL2-4000PWR XFMR LAMINATED 10.0VA CHAS |
1,040 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 2.5V | 4A | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|

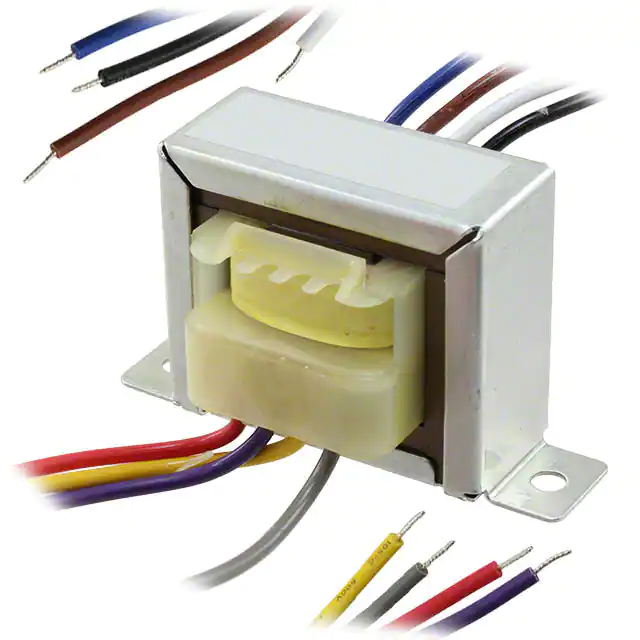

VPL20-500PWR XFMR LAMINATED 10.0VA CHAS |
1,285 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 500mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
|
VPL16-600PWR XFMR LAMINATED 10.0VA CHAS |
3,729 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 16V | 630mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|

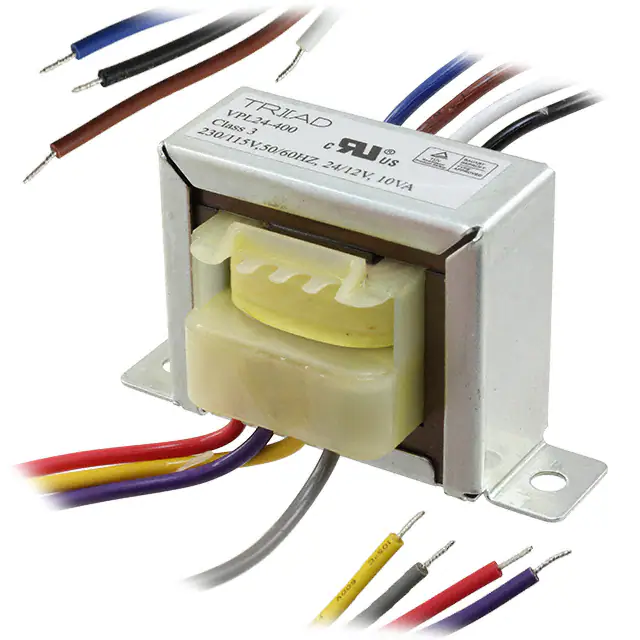

VPL24-400PWR XFMR LAMINATED 10.0VA CHAS |
1,859 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 24V | 410mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|

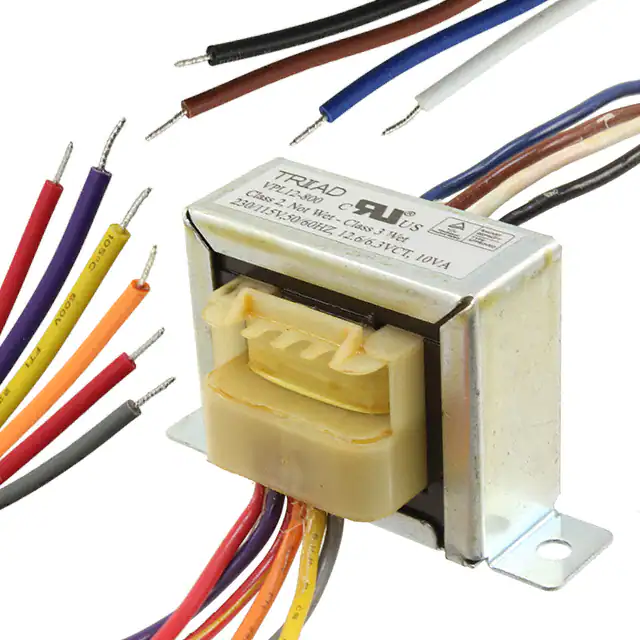

VPL12-800PWR XFMR LAMINATED 10.0VA CHAS |
1,126 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 12.6V | 790mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms | 0.7 lb (317.51 g) |
|
F20-1000PWR XFMR LAMINATED 20VA TH |
4,272 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|
F28-1300-C2-BPWR XFMR LAMINATED 36VA TH |
4,562 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Tube | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms | 1.1 lbs (499 g) |
|
VPP10-2000PWR XFMR LAMINATED 20VA TH |
3,517 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
