Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

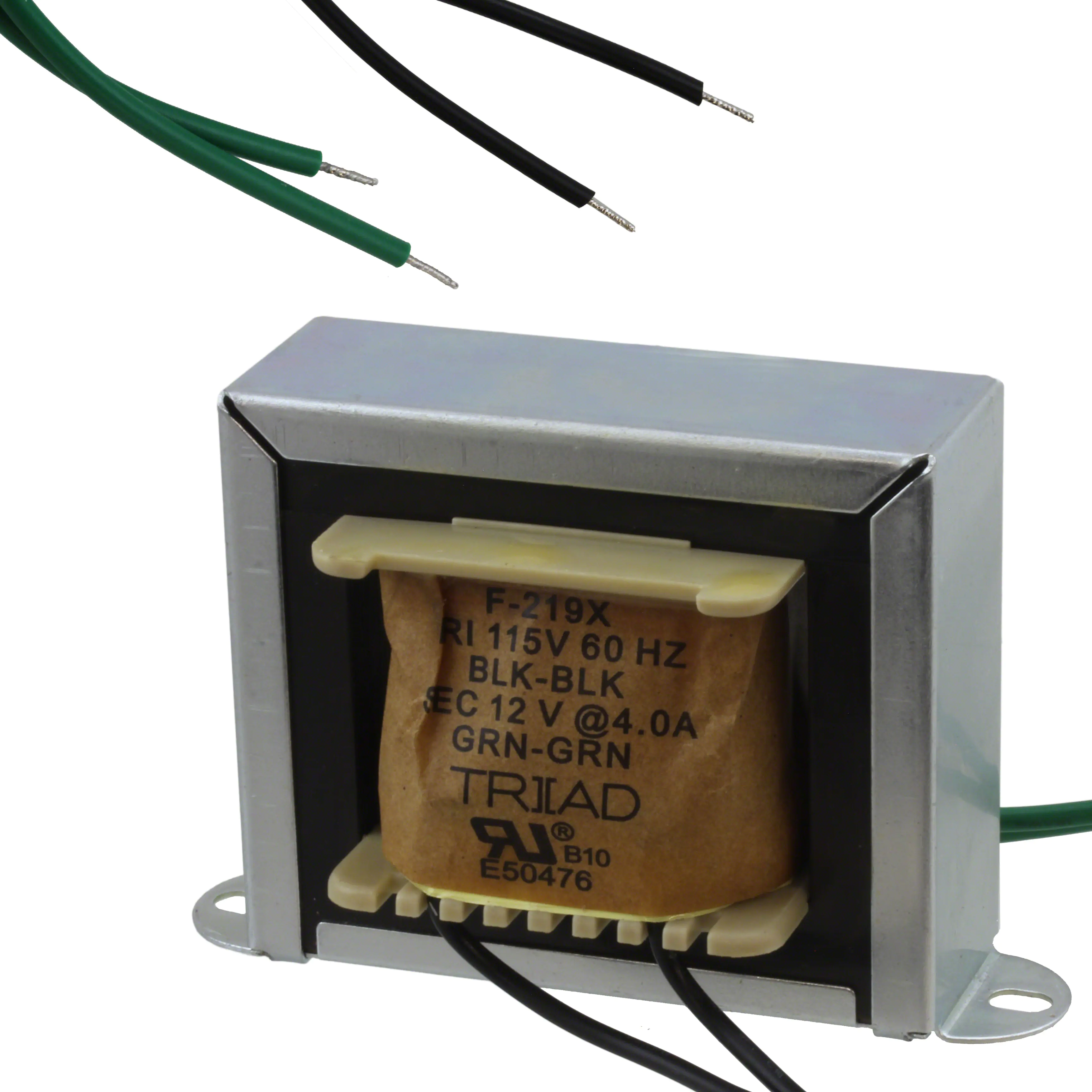

F-219XPWR XFMR LAMINATED 48VA CHAS MT |
4,454 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 4A | Single | Single | No | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.07mm | 1500Vrms | 2.3 lbs (1 kg) |
|

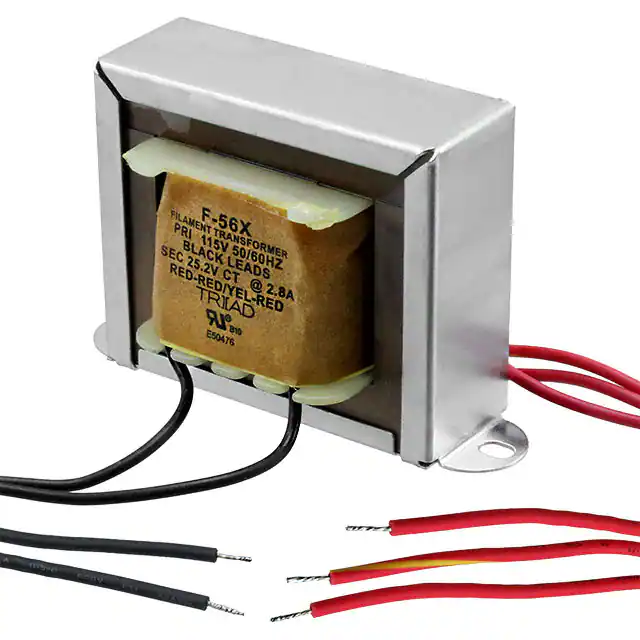

F-56XPWR XFMR LAMINATED 71VA CHAS MT |
2,105 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 25.2V | 2.8A | Single | Single | Yes | 71VA | Chassis Mount | Wire Leads | 101.60mm L x 63.50mm W | 65.15mm | 1500Vrms | 2.5 lbs (1.1 kg) |
|

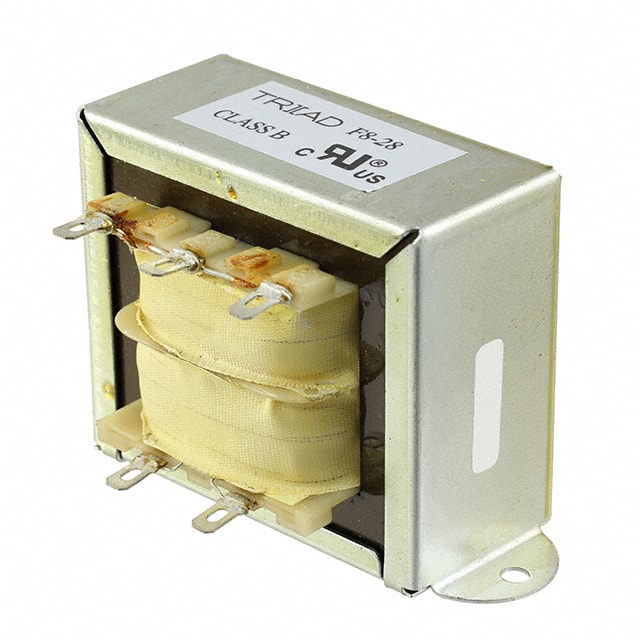

F8-28PWR XFMR LAMINATED 100VA CHAS MT |
2,740 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 28V | 3.6A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

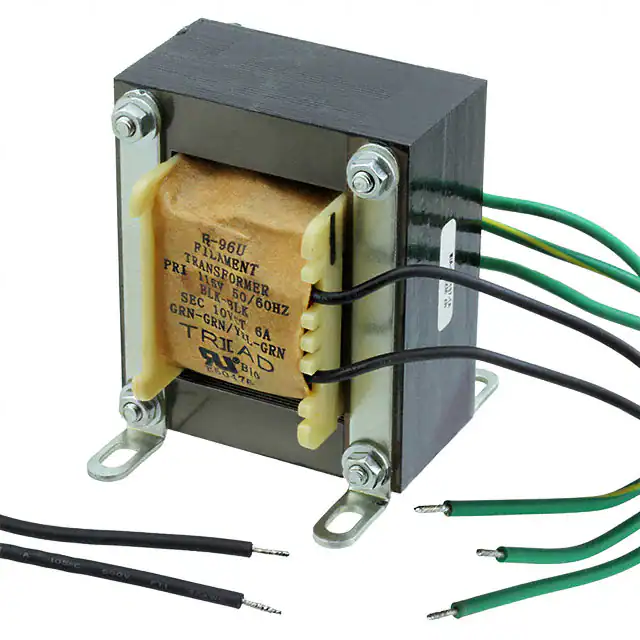

F-96UPWR XFMR LAMINATED 60VA CHAS MT |
3,060 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 10V | 6A | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 76.20mm | 1500Vrms | 2.1 lbs (952.5 g) |
|
VPS20-4000PWR XFMR LAMINATED 80VA CHAS MT |
4,254 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 8A, Series 4A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 74.68mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS230-350PWR XFMR LAMINATED 80VA CHAS MT |
2,628 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS16-5000PWR XFMR LAMINATED 80VA CHAS MT |
3,148 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS28-2800PWR XFMR LAMINATED 80VA CHAS MT |
2,132 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS12-6300PWR XFMR LAMINATED 80VA CHAS MT |
1,430 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

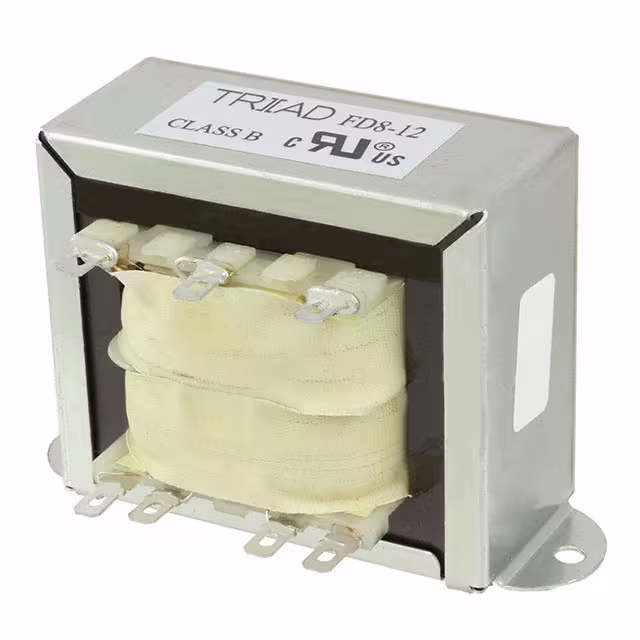

FD8-12PWR XFMR LAMINATED 100VA CHAS MT |
1,094 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 12.6V | 8A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
