Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP28-1060PWR XFMR LAMINATED 30VA TH |
2,755 | - |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
VPL10-2500PWR XFMR LAMINATED 25.0VA CHAS |
1,303 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 10V | 2.5A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|
VPL36-700PWR XFMR LAMINATED 25.0VA CHAS |
1,450 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 36V | 700mA | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|
VPL16-1600PWR XFMR LAMINATED 25.0VA CHAS |
4,882 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 16V | 1.57A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms | 1.3 lbs (589.7 g) |
|
TCT40-05E07ABPWR XFMR LAMINATED 40VA CHAS MT |
1,296 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 208V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
|
TCT40-02E07ABPWR XFMR LAMINATED 40VA CHAS MT |
3,504 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|

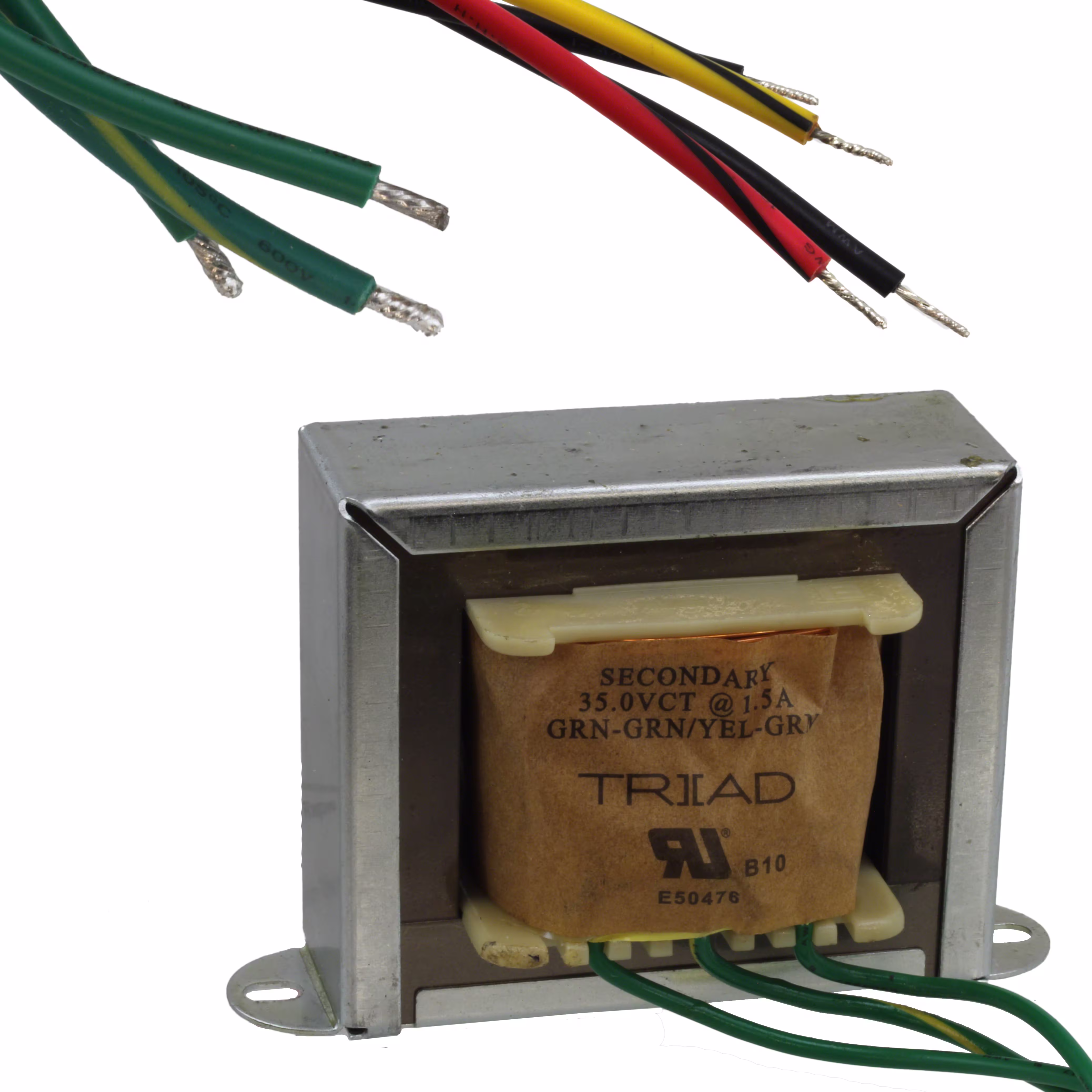

F-354XPWR XFMR LAMINATED 52.5VA CHAS |
2,166 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 35V | 1.5A | Dual | Single | Yes | 52.5VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.2 lbs (997.9 g) |
|

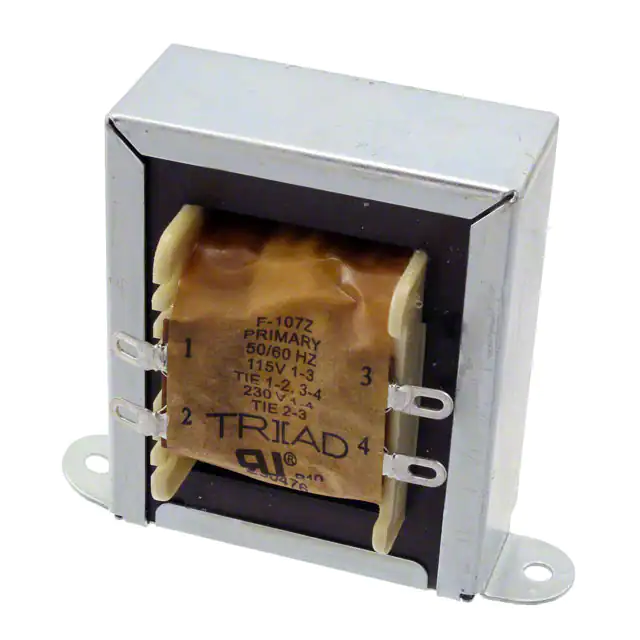

F-107ZPWR XFMR LAMINATED 48VA CHAS MT |
3,020 | - |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 85.73mm | 1500Vrms | 2.5 lbs (1.1 kg) |
|
VPP12-4400PWR XFMR LAMINATED 56VA TH |
1,577 | - |
|
Datasheet | PC Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 8.8A, Series 4.4A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
FS28-1300-C2PWR XFMR LAMINATED 36VA TH |
1,320 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
