Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS20-1800-C2PWR XFMR LAMINATED 36VA TH |
3,690 | - |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|

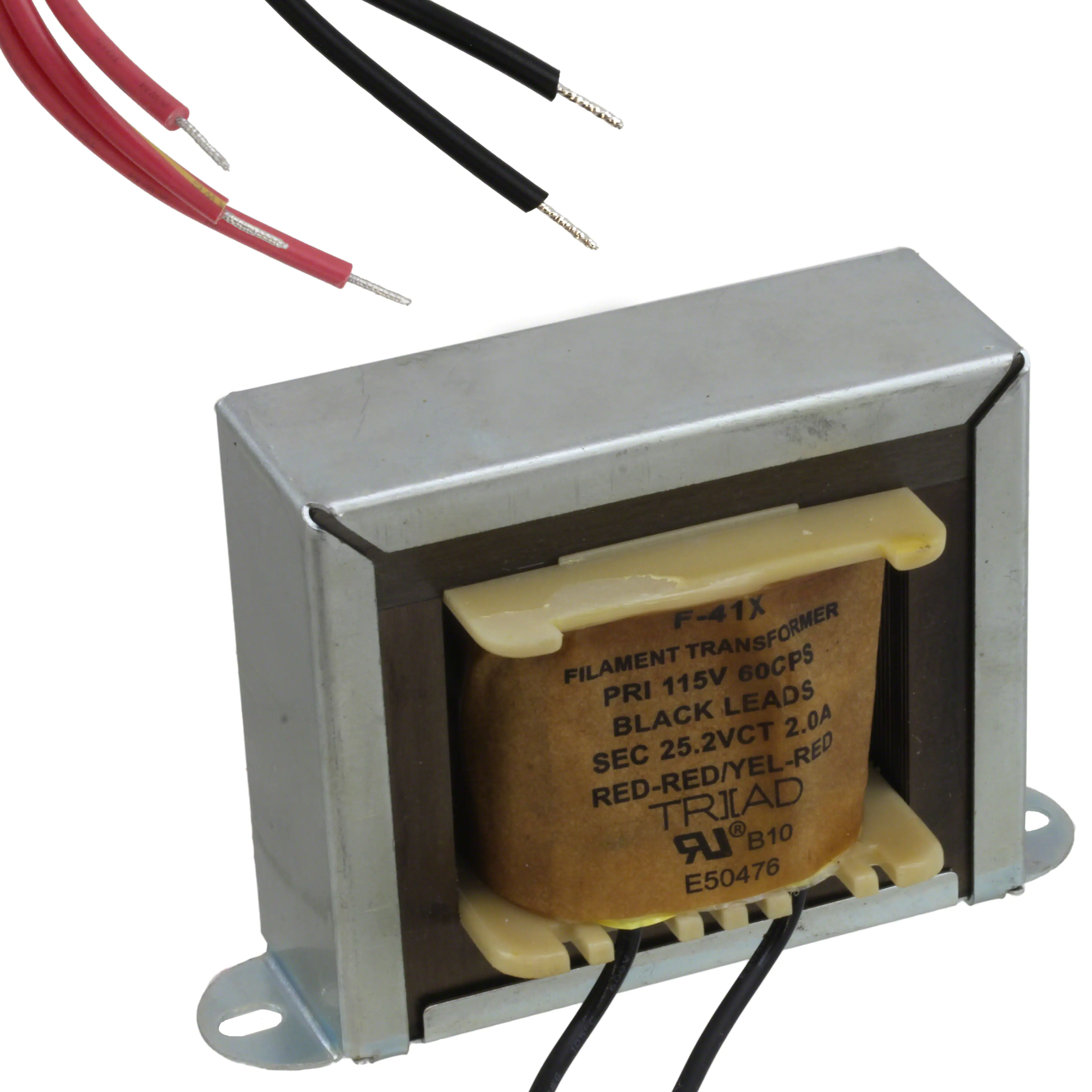

F-41XPWR XFMR LAMINATED 50.4VA CHAS |
2,380 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 25.2V | 2A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.2 lbs (997.9 g) |
|
VPS10-17500PWR XFMR LAMINATED 175VA CHAS MT |
3,544 | - |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
VPM48-1040PWR XFMR TOROIDAL 50VA CHAS MT |
4,212 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 2.08A, Series 1.04A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPM48-2080PWR XFMR TOROIDAL 100VA CHAS MT |
2,490 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms | 2.7 lbs (1.2 kg) |
|
|
VPM100-25000PWR XFMR TOROIDAL 2500VA CHAS MT |
1,572 | - |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 2500VA | Chassis Mount | Wire Leads | 215.00mm Dia | 120.00mm | 4000Vrms | 44 lbs (20 kg) |
|
F24-800-C2-BPWR XFMR 20VA TH |
3,321 | - |
|
Datasheet | - | Bulk | Active | - | 115V | 12V | 500mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 58.01mm L x 48.51mm W | 38.51mm | - | - |
|
FS10-110PWR XFMR LAMINATED 1.1VA TH |
4,875 | - |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
VPP12-1600-BPWR XFMR LAMINATED 20VA TH |
2,153 | - |
|
Datasheet | PC Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
FP24-100-BPWR XFMR LAMINATED 2.5VA TH |
3,513 | - |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
