Power Transformers
Use the filters and product table below to compare Power Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F16-400PWR XFMR LAMINATED 6VA TH |
1,045 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
FD4-28PWR XFMR LAMINATED 6VA CHAS MT |
4,794 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 200mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

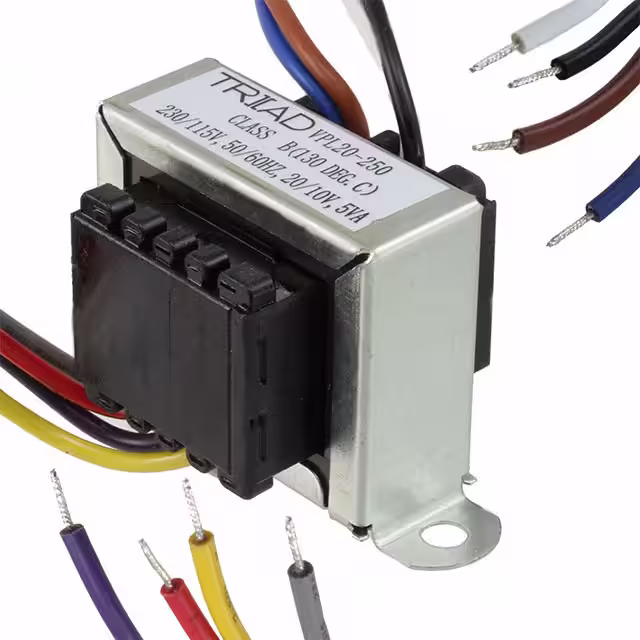

VPL20-250PWR XFMR LAMINATED 5.0VA CHAS MT |
1,810 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 250mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|
F48-400PWR XFMR LAMINATED 20VA TH |
2,778 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|

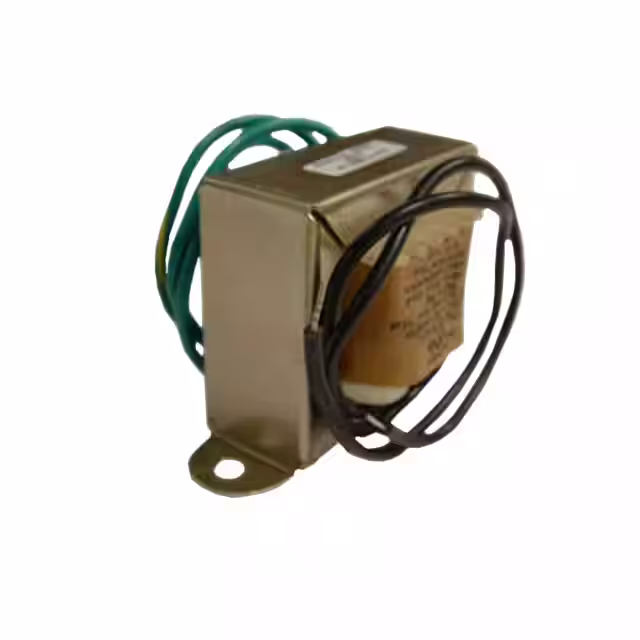

F-44XPWR XFMR LAMINATED 25.2VA CHAS |
2,031 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 2A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
FP230-50PWR XFMR LAMINATED 12VA TH |
4,853 | - |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|
VPS28-1500PWR XFMR LAMINATED 43VA CHAS MT |
1,984 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
F16-2250PWR XFMR LAMINATED 36VA TH |
3,785 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.55mm W | 39.62mm | 2500Vrms | 1.1 lbs (499 g) |
|
FD6-28PWR XFMR LAMINATED 30VA CHAS MT |
1,702 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 1.1A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
TCT40-06E07ABPWR XFMR LAMINATED 40VA CHAS MT |
2,994 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
Power Transformers FAQ
Common questions about filtering, comparing and sourcing Power Transformers components.
How can I narrow the Power Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
