Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

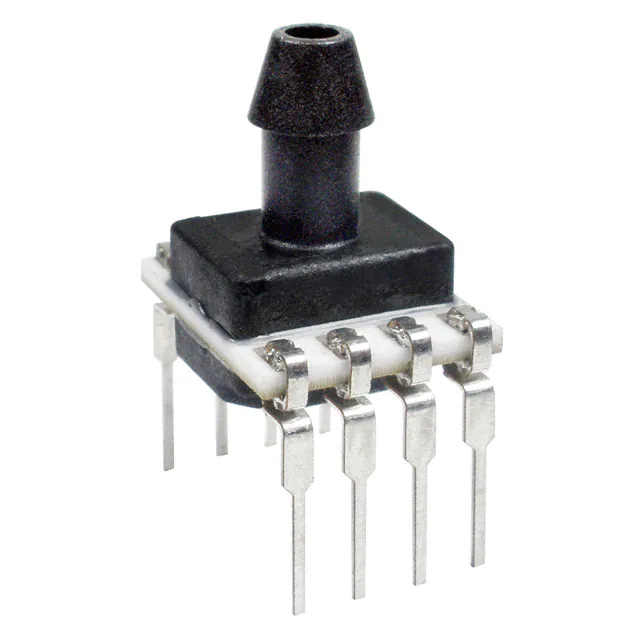

NSCDANN100PGUNVSENSOR 100PSIG 0.19" .086V 8DIP |
145 | - |
|
Datasheet | TruStability® NSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
24PCFFH6GSENSOR 100PSIC M5 .225V |
3,720 | - |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - M5 | Threaded | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

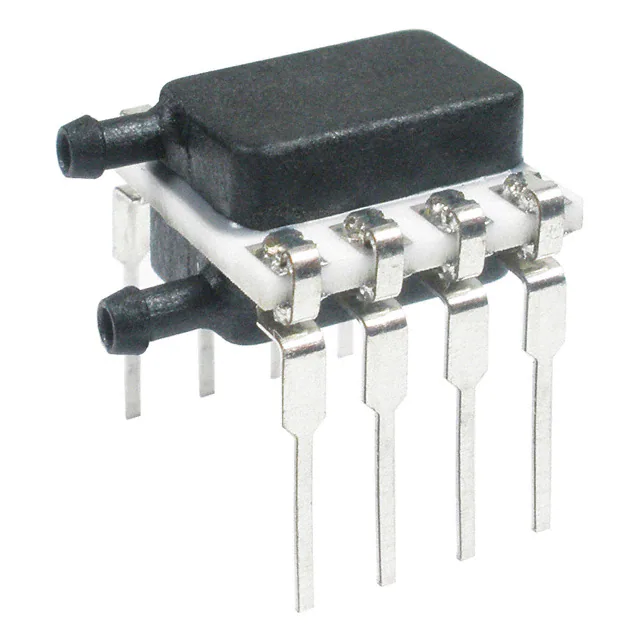

NSCDRRN005PDUNVSENSOR 5PSID 0.08" .15V 8DIP |
103 | - |
|
Datasheet | TruStability® NSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDANN005PGSA5SENSOR 5PSIG 0.19" 12BIT 8DIP |
114 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
MIPAF1XX250PSAAXSENSOR 250PSIS 7/16" 4.5V |
4,937 | - |
|
Datasheet | MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|
26PCGNM6GSENSOR 250PSIC 1/4" .15V |
1,934 | - |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (10V) | ±0.7% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HSCMRRD006MD2A3SENSOR 0.09PSID 0.08" 12BIT 8SMD |
600 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.09PSI (±0.6kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
BPS6C-H00SENSOR 43.51PSIA MODULE |
1,369 | - |
|
Datasheet | BPS | Module | Box | Active | - | Absolute | 7.25PSI ~ 43.51PSI (50kPa ~ 300kPa) | CAN Bus | - | ±0.580PSI (±4kPa) | 6V ~ 18V | - | No Port | - | Connector | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | Module |
|
HSCDRRN001ND2A5SENSOR 0.04PSID 0.08" 12BIT 8DIP |
183 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 8DIP |
178 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
