Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24PCDFA6DSENSOR 30PSID 0.2" .33V |
1,605 | - |
|
Datasheet | 24PC | 4-SIP Module | Tray | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 0.2" (5mm) Tube, Dual | Barbless | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDANV150PGAA5SENSOR 150PSIG 0.19" 4.5V 8DIP |
2,246 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCSRNN015PA3A3SENSOR 15PSIA 0.08" 12BIT 4SIP |
3,386 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.92mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSAND005PGAA5SENSOR 5PSIG 0.19" 4.5V 4SIP |
3,915 | - |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCDANN600MDSA3SENSOR 8.7PSID 0.19" 12BIT 8DIP |
1,093 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Differential | ±8.7PSI (±60kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TBFLPNS015PGUCVSENSOR 15PSIG .02625V 6SMD |
1,138 | - |
|
Datasheet | TBF | 6-SMD Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 26.25mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | 0°C ~ 50°C | - | - | Surface Mount | 6-SMD |
|
HSCDANN030PAAA5SENSOR 30PSIA 0.19" 4.5V 8DIP |
2,656 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRNN015PAAA3SENSOR 15PSIA 0.08" 2.97V 8SMD |
3,313 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

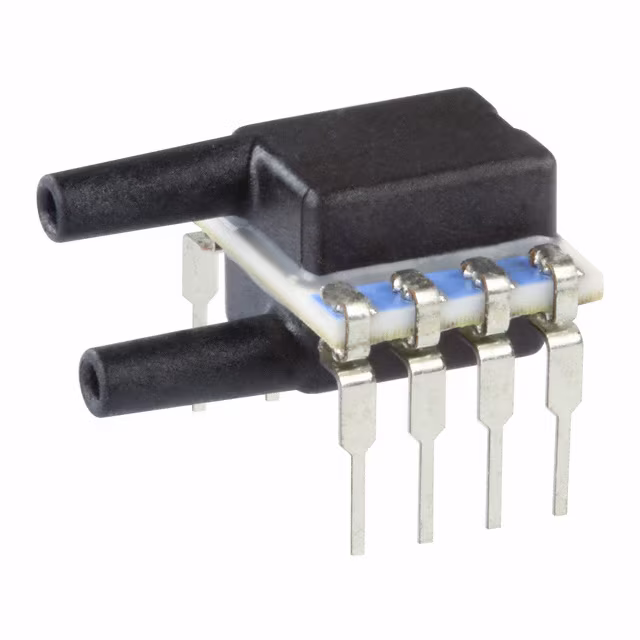

TSCDJJN001PDUCVSENSOR 1PSID 0.09" .015V 8DIP |
3,173 | - |
|
Datasheet | TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
ABP2MRRN004ND2B3BBSENS 0.144PSID 0.063" 14BIT SMD |
3,711 | - |
|
Datasheet | ABP2 | 6-SMD, J-Lead, Dual Ports, Same Side | Box | Active | Medical Ventilation | Differential | -0.144PSI ~ 0.144PSI (-1.0kPa ~ 1.0kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.063" (1.6mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 9.75PSI (67.25kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
