Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19C100PA8KSENSOR 100PSIA 0.1V |
3,681 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA8KSENSOR 200PSIA 0.1V |
4,510 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C010PG2LSENSOR 10PSIG 0.1V |
3,798 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 10PSI (68.95kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C5000PA1KSENSOR 5000PSIA .152V |
4,460 | - |
|
Datasheet | 13 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 5000PSI (34473.79kPa) | Wheatstone Bridge | 148 mV ~ 152 mV | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 10000PSI (68947.57kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG3LSENSOR 5PSIG 0.1V |
1,909 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA7KSENSOR 200PSIA 1/4" 0.1V |
3,165 | - |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
1865-02G-KDNSENSOR 10PSIG 7.5V |
2,726 | - |
|
Datasheet | 1865 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 30PSI (206.84kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
|
19C050PA1LSENSOR 50PSIA 0.1V |
3,616 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|

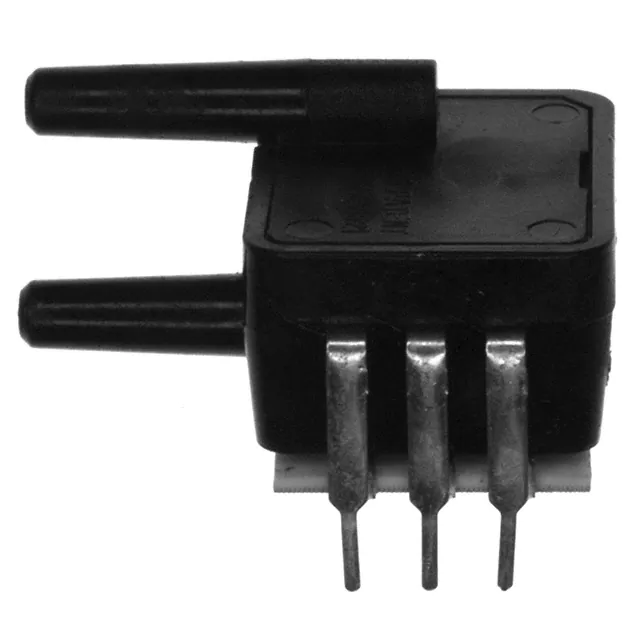

SDX30D4SENSOR 30PSID 0.09" .09V |
4,901 | - |
|
Datasheet | SDX | 6-DIP Module | Bulk | Active | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 20V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
19C200PG1KSENSOR 200PSIG 0.1V |
4,659 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
