Pressure Sensors, Transducers
Browse available Pressure Sensors, Transducers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-19M-200A2SENSOR 200PSIA M12 14BIT |
4,403 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Absolute | 200PSI (1378.95kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-300G-RSENSOR 300PSIG 0.1V |
2,922 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C | - | - | - | - |
|
82-100G-CSENSOR 100PSIG 0.1V |
2,446 | - |
|
Datasheet | - | - | Tube | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-005G-RTSENSOR 5PSIG 0.1V |
4,772 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
|
NPI-19M-002G2SENSOR 2.5PSIG M12 14BIT |
4,585 | - |
|
Datasheet | NPI-19 | Cylinder | Tray | Active | Industrial Automation | Gauge | 2.5PSI (17.24kPa) | I2C | 14 b | ±1% | 2.5V ~ 5.5V | Male - M12 x 1.0 | Threaded | Temperature Compensated | Wire Leads | 5PSI (34.47kPa) | -10°C ~ 80°C | - | - | - | - |
|
P993-5BSENSOR 0.18PSID 4V |
4,387 | - |
|
Datasheet | - | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
M3256-00000E-020BGSENSOR 290.08PSIG 1/4" .02A |
1,111 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 290.08PSI (2000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 580PSI (4000kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-5B-ASENSOR 0.18PSI 4V |
4,043 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | -0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
HSCDRRN004ND2A5SENSOR 0.15PSID 0.08" 12BIT 8DIP |
147 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |

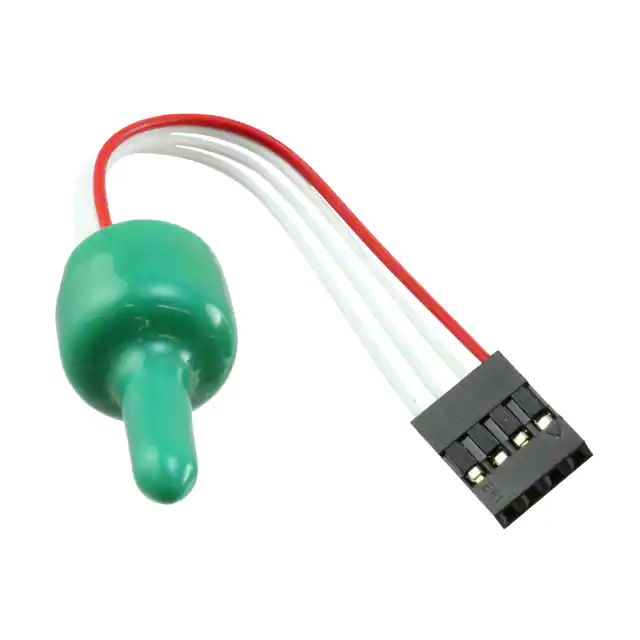

.jpg "NPI-12-101GH (5V)")
|
NPI-12-101GH (5V)SENSOR 15PSIG |
1,213 | - |
|
Datasheet | NPI-12 | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | - | ±4% | 5V | - | No Port | - | Cable | 50PSI (344.74kPa) | 10°C ~ 40°C | - | - | Through Hole | - |
|
|
M325M-00000P-250PGSENSOR 250PSIG 7/16" .02A |
4,679 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-00000P-01KPGSENSOR 1000PSIG 7/16" .02A |
4,203 | - |
|
Datasheet | M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M326M-00000B-007BGSENSOR 101.53PSIG 1/4" 5V |
2,773 | - |
|
Datasheet | - | - | Box | Active | - | Gauge | 101.53PSI (700kPa) | Analog Voltage | 0 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 1/4" (6.35mm) G | Threaded | Amplified Output, Temperature Compensated | - | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
P992-2B-CSENSOR 0.07PSI 4V |
2,619 | - |
|
Datasheet | - | 2-SIP Module | Bulk | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
HSCDRRN010MDAA3SENSOR 0.15PSID 0.08" 2.97V 8DIP |
3,090 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCMRRN001ND2A3SENSOR 0.04PSID 0.08" 12BIT 8SMD |
120 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.76PSI (±67.28kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
85-015G-FCSENSOR 15PSIG 0.1V |
1,927 | - |
|
Datasheet | - | Cylinder | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
P993-1BSENSOR 0.04PSID 4V |
4,231 | - |
|
Datasheet | - | 3-SIP Module | Bulk | Active | Board Mount | Differential | -0.04PSI ~ 0.04PSI (-0.25kPa ~ 0.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | Barbed | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-10-ASENSOR 0.36PSI 4V |
240 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
|
P992-2-ASENSOR 0.07PSI 4V |
1,545 | - |
|
Datasheet | - | 4-DIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
Pressure Sensors, Transducers FAQ
Common questions about selecting, comparing and sourcing Pressure Sensors, Transducers components through Winsun (HK) Electronics.
What should I check when selecting Pressure Sensors, Transducers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Pressure Sensors, Transducers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Pressure Sensors, Transducers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Pressure Sensors, Transducers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
