PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
RHEF100-AP PTC RESET FUSE 30V 1A RADIAL Littelfuse Inc.	840	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RHEF	Cut Tape (CT)	Active	Polymeric	30V	1 A	1.8 A	40 A	5.2 s	180 mOhms	430 mOhms	-	-40°C ~ 125°C	-	-	-	Through Hole	0.382" Dia x 0.118" T (9.70mm x 3.00mm)	0.535" (13.60mm)	-	0.199" (5.05mm)
PFRA.185 PTC RESET FUSE 30V 1.85A RADIAL SCHURTER Inc.	637	-	RFQ	Datasheet	Radial, Disc	PFRA	Bulk	Active	Polymeric	30V	1.85 A	3.7 A	40 A	8.7 s	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.472" Dia x 0.118" T (12.00mm x 3.00mm)	0.724" (18.40mm)	-	0.201" (5.10mm)
0ZRR0250FF1A PTC RESET FUSE 60V 2.5A RADIAL Bel Fuse Inc.	233	-	RFQ	Datasheet	Radial, Disc	0ZRR	Bulk	Active	Polymeric	60V	2.5 A	5 A	40 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.839" Dia x 0.122" T (21.30mm x 3.10mm)	1.039" (26.40mm)	-	0.402" (10.20mm)
RXEF135-2 PTC RESET FUSE 72V 1.35A RADIAL Littelfuse Inc.	599	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RXEF	Tape & Reel (TR)	Active	Polymeric	72V	1.35 A	2.7 A	40 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.571" Dia x 0.118" T (14.50mm x 3.00mm)	0.752" (19.10mm)	-	0.199" (5.05mm)
0ZRP0160FF1A PTC RESET FUSE 60V 1.6A RADIAL Bel Fuse Inc.	3,501	-	RFQ	Datasheet	Radial, Disc	0ZRP	Bulk	Active	Polymeric	60V	1.6 A	3.2 A	40 A	9 s	100 mOhms	320 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.480" L x 0.142" W (12.20mm x 3.60mm)	0.720" (18.30mm)	-	0.201" (5.10mm)
RUEF400-AP PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	191	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Cut Tape (CT)	Active	Polymeric	30V	4 A	8 A	100 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.760" (19.30mm)	-	0.199" (5.05mm)
PFRA.300 PTC RESET FUSE 30V 3A RADIAL SCHURTER Inc.	159	-	RFQ	Datasheet	Radial, Disc	PFRA	Bulk	Active	Polymeric	30V	3 A	6 A	40 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.472" L x 0.118" W (12.00mm x 3.00mm)	0.720" (18.30mm)	-	0.201" (5.10mm)

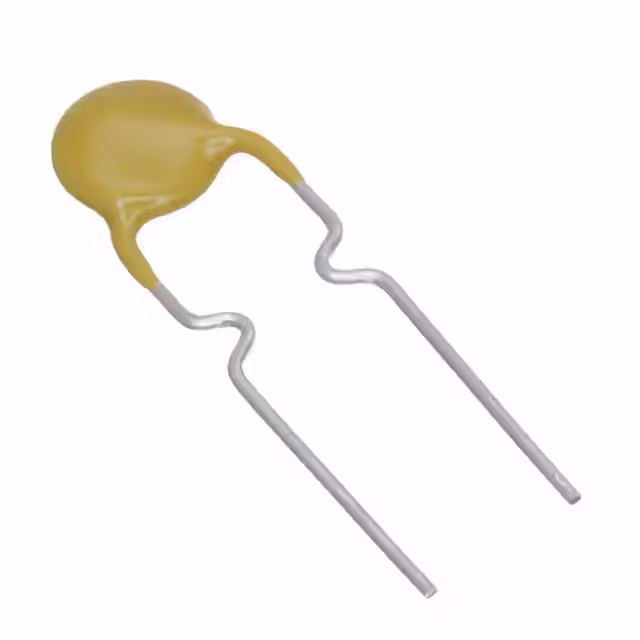

AHRF050 PTC RESET FUSE 30V 500MA RADIAL Littelfuse Inc.	601	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	30V	500 mA	1 A	40 A	3 s	350 mOhms	1.1 Ohms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.130" T (7.40mm x 3.30mm)	0.500" (12.70mm)	-	0.199" (5.05mm)
60R090XU PTC RESET FUSE 60V 900MA RADIAL Littelfuse Inc.	451	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 60R	Bulk	Active	Polymeric	60V	900 mA	1.8 A	40 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.441" Dia x 0.122" T (11.20mm x 3.10mm)	0.622" (15.80mm)	-	0.201" (5.10mm)
RGEF500-1 PTC RESET FUSE 16V 5A RADIAL Littelfuse Inc.	125	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RGEF	Bag	Active	Polymeric	16V	5 A	8.5 A	100 A	2 s	15 mOhms	34 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.390" L x 0.098" W (9.90mm x 2.50mm)	0.563" (14.30mm)	-	0.199" (5.05mm)
PRG21AR420MS1RA PTC RESET FUSE 20V 54MA 0805 Murata Electronics	648	-	RFQ	Datasheet	0805 (2012 Metric)	POSISTOR®, PRG	Tape & Reel (TR)	Active	Ceramic	20V	54 mA	100 mA	590 mA	-	-	-	42 Ohms	-40°C ~ 105°C	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	-	0.043" (1.10mm)	-
LR4-190F PTC RESET FUSE 15V 1.9A STRAP Littelfuse Inc.	642	-	RFQ	Datasheet	Strap	PolySwitch®, LR4	Bag	Active	Polymeric	15V	1.9 A	3.9 A	100 A	5 s	39 mOhms	102 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.827" L x 0.205" W (21.00mm x 5.20mm)	-	-	-
RXEF185K PTC RESET FUSE 72V 1.85A RADIAL Littelfuse Inc.	390	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RXEF	Bag	Active	Polymeric	72V	1.85 A	3.7 A	40 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.660" Dia x 0.118" T (16.76mm x 3.00mm)	0.906" (23.00mm)	-	0.199" (5.05mm)
LVR016K PTC RESET FUSE 240V 160MA RADIAL Littelfuse Inc.	352	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	160 mA	370 mA	2 A	15 s	2.5 Ohms	7.8 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.390" Dia x 0.150" T (9.90mm x 3.80mm)	0.543" (13.80mm)	-	0.200" (5.08mm)
PTR030V0600-BK PTC RESET FUSE 30V 6A RADIAL Eaton - Electronics Division	290	-	RFQ	Datasheet	Radial, Disc	PTR030V	Bulk	Active	Polymeric	30V	6 A	12 A	100 A	16 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	1.169" (29.70mm)	-	0.394" (10.00mm)
PFRA.400 PTC RESET FUSE 30V 4A RADIAL SCHURTER Inc.	3,990	-	RFQ	Datasheet	Radial, Disc	PFRA	Bulk	Active	Polymeric	30V	4 A	8 A	40 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.567" L x 0.118" W (14.40mm x 3.00mm)	0.976" (24.80mm)	-	0.201" (5.10mm)
MF-RX030/72-0 PTC RESET FUSE 72V 300MA RADIAL Bourns Inc.	477	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/72	Bulk	Active	Polymeric	72V	300 mA	600 mA	40 A	3 s	760 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.528" (13.40mm)	-	0.201" (5.10mm)
RGEF700 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	464	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RGEF	Bag	Active	Polymeric	16V	7 A	11.9 A	100 A	3.5 s	7.7 mOhms	20 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.421" L x 0.098" W (10.70mm x 2.50mm)	0.776" (19.70mm)	-	0.199" (5.05mm)
MF-RX250/72-2 PTC RESET FUSE 72V 2.5A RADIAL Bourns Inc.	446	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RX/72	Tape & Reel (TR)	Active	Polymeric	72V	2.5 A	5 A	40 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.702" L x 0.122" W (17.84mm x 3.10mm)	0.939" (23.84mm)	-	0.402" (10.20mm)
MINIASMDC260F/13.2-2 PTC RESET FUSE 13.2V 2.6A 1812 Littelfuse Inc.	163	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Bulk	Active	Polymeric	13.2V	2.6 A	5 A	100 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.060" (1.52mm)	-
