PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
0ZRN0300FF1E PTC RESET FUSE 16V 3A RADIAL Bel Fuse Inc.	990	-	RFQ	Datasheet	Radial, Disc	0ZRN	Bulk	Active	Polymeric	16V	3 A	6 A	100 A	5 s	33 mOhms	79 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.346" L x 0.118" W (8.80mm x 3.00mm)	0.543" (13.80mm)	-	0.201" (5.10mm)
B59980C0130A070 PTC RESET FUSE 80V 85MA RADIAL EPCOS - TDK Electronics	961	-	RFQ	Datasheet	Radial, Disc	B59980	Bulk	Active	Ceramic	80V	85 mA	130 mA	700 mA	-	-	-	62 Ohms	-40°C ~ 125°C	-	-	-	Through Hole	0.157" Dia x 0.138" T (4.00mm x 3.50mm)	0.295" (7.50mm)	-	0.197" (5.00mm)

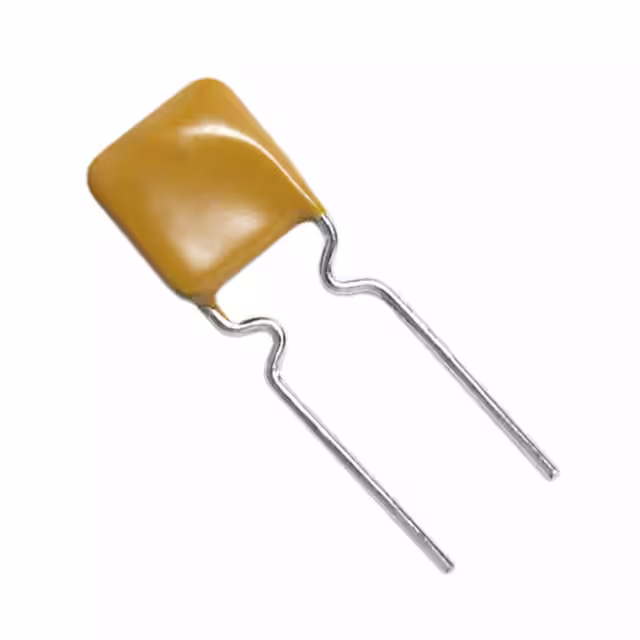

AHEF070 PTC RESET FUSE 32V 700MA RADIAL Littelfuse Inc.	473	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHEF	Bag	Active	Polymeric	32V	700 mA	1.4 A	100 A	3.2 s	230 mOhms	800 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.272" L x 0.118" W (6.90mm x 3.00mm)	0.425" (10.80mm)	-	0.118" (3.00mm)
PTSLR12106V500 PTC RESET FUSE 6V 5A 1210 Eaton - Electronics Division	126	-	RFQ	Datasheet	1210 (3225 Metric), Concave	PTSLR1210	Tape & Reel (TR)	Active	Polymeric	6V	5 A	10 A	50 A	2 s	2 mOhms	12 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.101" W (3.22mm x 2.58mm)	-	0.047" (1.20mm)	-
2920L300DR PTC RESET FUSE 6V 3A 2920 Littelfuse Inc.	906	-	RFQ	Datasheet	2920 (7351 Metric), Concave	POLY-FUSE®, 2920L	Tape & Reel (TR)	Active	Polymeric	6V	3 A	5 A	40 A	20 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.289" L x 0.202" W (7.35mm x 5.12mm)	-	0.049" (1.25mm)	-
AHS200-2 PTC RESET FUSE 16V 2A 2SMD Littelfuse Inc.	783	-	RFQ	Datasheet	2-SMD	PolySwitch®, AHS	Tape & Reel (TR)	Active	Polymeric	16V	2 A	4 A	70 A	13.4 s	50 mOhms	140 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.343" L x 0.250" W (8.70mm x 6.36mm)	-	0.118" (3.00mm)	-
MF-NSML500/6-2 PTC RESET FUSE 6V 5A 1206 Bourns Inc.	747	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Multifuse®, MF-NSML/X	Tape & Reel (TR)	Active	Polymeric	6V	5 A	10 A	50 A	5 s	2 mOhms	11 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.063" W (3.25mm x 1.60mm)	-	0.039" (1.00mm)	-
TRF250-180 PTC RESET FUSE 100V 180MA RADIAL Littelfuse Inc.	108	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bulk	Active	Polymeric	100V (250V Int)	180 mA	650 mA	10 A	2 s	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.354" Dia x 0.150" T (9.00mm x 3.80mm)	0.472" (12.00mm)	-	0.197" (5.00mm)
LVR025S-1 PTC RESET FUSE 240V 250MA RADIAL Littelfuse Inc.	400	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	250 mA	560 mA	3.5 A	18.5 s	1.3 Ohms	3.8 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.378" L x 0.150" W (9.60mm x 3.80mm)	0.685" (17.40mm)	-	0.200" (5.08mm)
TRF250-145U PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc.	540	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	60V (250V Int)	145 mA	290 mA	3 A	4 s	3.5 Ohms	14 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.236" L x 0.150" W (6.00mm x 3.80mm)	0.394" (10.00mm)	-	0.197" (5.00mm)
AHRF450S-1 PTC RESET FUSE 16V 4.5A RADIAL Littelfuse Inc.	1,000	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	16V	4.5 A	8.7 A	100 A	4 s	17 mOhms	54 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.409" Dia x 0.122" T (10.40mm x 3.10mm)	0.563" (14.30mm)	-	0.199" (5.05mm)
RKEF375K PTC RESET FUSE 60V 3.75A RADIAL Littelfuse Inc.	806	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RKEF	Bag	Active	Polymeric	60V	3.75 A	7.5 A	40 A	22 s	17 mOhms	60 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.992" (25.20mm)	-	0.199" (5.05mm)
VTP210SF PTC RESET FUSE 16V 2.1A STRAP Littelfuse Inc.	688	-	RFQ	Datasheet	Strap	PolySwitch®, VTP	Bulk	Active	Polymeric	16V	2.1 A	4.7 A	100 A	5 s	18 mOhms	60 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.909" L x 0.209" W (23.10mm x 5.30mm)	-	0.032" (0.80mm)	-
PTCCL05H940EBE PTC RESET FUSE 60V 94MA RADIAL Vishay Beyschlag/Draloric/BC Components	671	-	RFQ	Datasheet	Radial, Disc	PTCCL - 60V	Bulk	Active	Ceramic	60V	94 mA	145 mA	800 mA	-	-	-	50 Ohms	-40°C ~ 85°C	-	-	-	Through Hole	0.197" Dia x 0.157" T (5.00mm x 4.00mm)	0.394" (10.00mm)	-	0.197" (5.00mm)
PICOASMDC010S-2 PTC RESET FUSE 15V 100MA 0805 Littelfuse Inc.	504	-	RFQ	Datasheet	0805 (2012 Metric)	PolySwitch®, picoASMDC	Tape & Reel (TR)	Active	Polymeric	15V	100 mA	300 mA	20 A	600 ms	1.5 Ohms	11 Ohms	-	-	Automotive	AEC-Q200	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.040" (1.02mm)	-
AHRF550 PTC RESET FUSE 16V 5.5A RADIAL Littelfuse Inc.	219	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	16V	5.5 A	10 A	100 A	6 s	13 mOhms	37 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.441" L x 0.118" W (11.20mm x 3.00mm)	0.744" (18.90mm)	-	0.199" (5.05mm)
60R075XU PTC RESET FUSE 60V 750MA RADIAL Littelfuse Inc.	459	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 60R	Bulk	Active	Polymeric	60V	750 mA	1.5 A	40 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.402" Dia x 0.122" T (10.20mm x 3.10mm)	0.591" (15.00mm)	-	0.201" (5.10mm)
PTSLR12066V350 PTC RESET FUSE 6V 3.5A 1206 Eaton - Electronics Division	227	-	RFQ	Datasheet	1206 (3216 Metric), Concave	PTSLR1206	Tape & Reel (TR)	Active	Polymeric	6V	3.5 A	7 A	50 A	5 s	3 mOhms	18 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.047" (1.20mm)	-
LVR033K PTC RESET FUSE 240V 330MA RADIAL Littelfuse Inc.	214	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	330 mA	740 mA	4.5 A	21 s	770 mOhms	2.6 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.449" L x 0.150" W (11.40mm x 3.80mm)	0.748" (19.00mm)	-	0.200" (5.08mm)
AHRF300 PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	16V	3 A	6.5 A	100 A	5 s	29 mOhms	79 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.346" L x 0.118" W (8.80mm x 3.00mm)	0.543" (13.80mm)	-	0.199" (5.05mm)

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
