PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805L150SLYRPTC RESET FUSE 6V 1.5A 0805 |
4,115 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 50 A | 500 ms | 15 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
 Concave.jpg "0603L150SLYR")
|
0603L150SLYRPTC RESET FUSE 6V 1.5A 0603 |
2,283 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 50 A | 500 ms | 7 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
1812L020/60DRPTC RESET FUSE 60V 200MA 1812 |
9,304 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2 s | 1.4 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
1812L200/12DRPTC RESET FUSE 12V 2A 1812 |
2,100 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 12V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
2920L330/24MRPTC RESET FUSE 24V 3.3A 2920 |
10,514 | - |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | 5.5 A | 40 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
0603L050SLYRPTC RESET FUSE 6V 500MA 0603 |
15,351 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 50 A | 100 ms | 70 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L075SLYRPTC RESET FUSE 6V 750MA 0603 |
13,493 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 200 ms | 20 mOhms | 165 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.030" (0.75mm) | - |
|
|
0603L175SLYRPTC RESET FUSE 6V 1.75A 0603 |
6,392 | - |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 600 ms | 5 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|

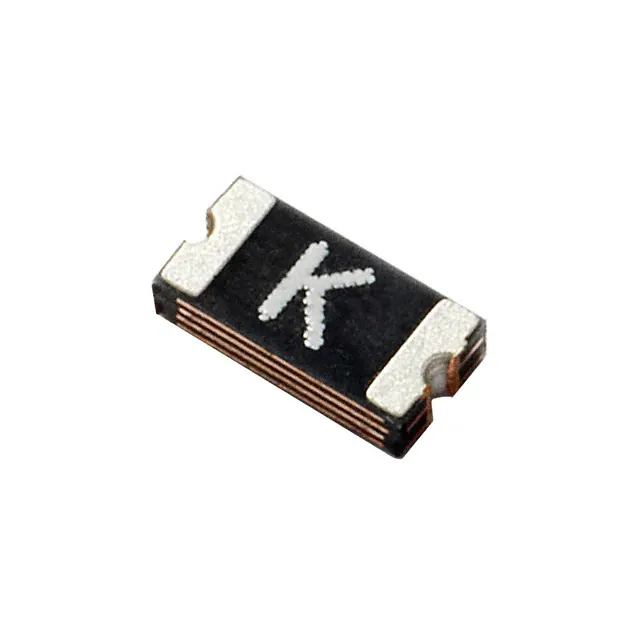

1206L175SLYRPTC RESET FUSE 6V 1.75A 1206 |
6,371 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 400 ms | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.071" (1.80mm) | - |
|
|
1206L350SLTHYRPTC RESET FUSE 6V 3.5A 1206 |
5,592 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 5 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
1812L035/30DRPTC RESET FUSE 30V 350MA 1812 |
6,342 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 750 mA | 40 A | 150 ms | 400 mOhms | 1.7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
0402L020SLKRPTC RESET FUSE 6V 200MA 0402 |
48,447 | - |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 200 mA | 500 mA | 40 A | 1 s | 100 mOhms | 1.25 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
|
0402L050SLKRPTC RESET FUSE 6V 500MA 0402 |
27,876 | - |
|
Datasheet | 0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 50 A | 100 ms | 40 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
|
0805L010/24YRPTC RESET FUSE 24V 100MA 0805 |
13,390 | - |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 24V | 100 mA | 300 mA | 100 A | 1.5 s | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
1206L600SLWRPTC RESET FUSE 6.0A 6V 1206 |
8,625 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 6 A | 12 A | 50 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
|
1206L260/12SLYRPTC RESET FUSE 2.6A 12V 1206 |
4,240 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 2.6 A | 5 A | 50 A | 4 s | 3 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
1206L400SLWRPTC RESET FUSE 6V 4A 1206 |
3,599 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
|
1206L400/12SLWRPTC RESET FUSE 4.0A 12V 1206 |
2,368 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 4 A | 8 A | 50 A | 2 s | 3 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
LR4-1300SSFPTC RESET FUSE 20V 13A STRAP |
32,365 | - |
|
Datasheet | Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 13 A | 21.2 A | 100 A | 10 s | 3.5 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 2.520" L x 0.382" W (64.00mm x 9.70mm) | - | - | - |
|
|
1812L300/24SLERPTC RESET FUSE 3.0A 24V 1812 |
5,413 | - |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 24V | 3 A | 6 A | 50 A | 2 s | 1 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.032" (0.82mm) | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
