PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCL20 500100-APTC RESET FUSE 680V 250MA RADIAL |
12,554 | - |
|
Datasheet | Radial, Disc | - | Bulk | Active | - | 680V | 250 mA | 400 mA | - | - | - | - | 50 Ohms | -50°C ~ 150°C | - | - | - | Through Hole | 0.748" Dia x 0.354" T (19.00mm x 9.00mm) | - | - | 0.307" (7.80mm) |
|

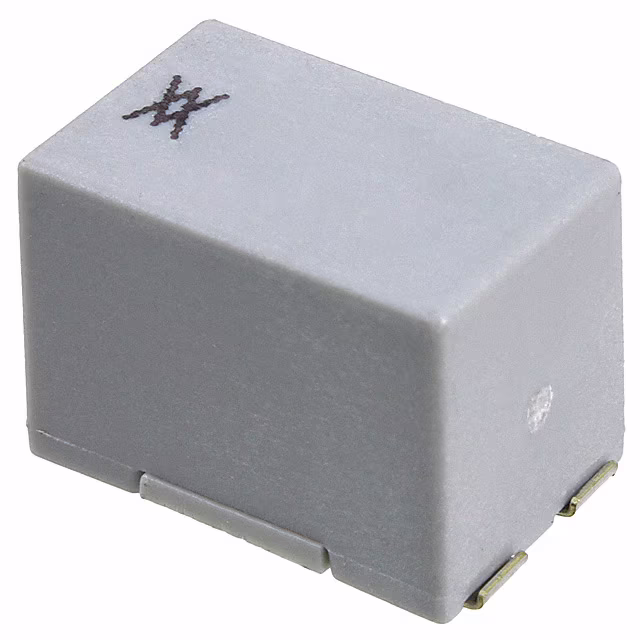

TSM600-250F-2PTC RESET FUSE 250V 250MA 4SMD |
1,111 | - |
|
Datasheet | 4-SMD | PolySwitch®, TSM | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 250 mA | 860 mA | 3 A | 6 s | 1 Ohms | 7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.681" L x 0.425" W (17.30mm x 10.80mm) | - | 0.461" (11.70mm) | - |
|
BD280-1130-20/16PTC RESET FUSE 14V 16A BLADE |
1,451 | - |
|
Datasheet | Blade Type | PolySwitch®, BD280 | Bulk | Active | Polymeric | 14V | 16 A | 26 A | 100 A | 10 s | 2.8 Ohms | 6.4 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Holder | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 0.262" (6.65mm) | - | - |
|
SMD1206B012TFPTC RESET FUSE 30V 125MA 1206 |
7,844 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 125 mA | 290 mA | 100 A | 200 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
SMD1812B050TFPTC RESET FUSE 15V 500MA 1812 |
2,189 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1206B025TFPTC RESET FUSE 16V 250MA 1206 |
35,569 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 500 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1206B050TF/15PTC RESET FUSE 15V 500MA 1206 |
10,987 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 15V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
|
SMD1206B020TF/24PTC RESET FUSE 24V 200MA 1206 |
10,209 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 420 mA | 100 A | 100 ms | 650 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
|
SMD1206B016TFPTC RESET FUSE 30V 160MA 1206 |
8,803 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 370 mA | 100 A | 300 ms | 1.2 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
|
SMD1206B035TF/16PTC RESET FUSE 16V 350MA 1206 |
7,872 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
|
SMD1206B010TFPTC RESET FUSE 30V 100MA 1206 |
4,946 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 270 mA | 100 A | 200 ms | 1.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.057" (1.45mm) | 0.057" (1.45mm) | - |
|
|
SMD1206B005TFPTC RESET FUSE 30V 50MA 1206 |
4,382 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 30V | 50 mA | 150 mA | 100 A | 250 ms | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.057" (1.45mm) | - |
|
|
SMD1206B025TF/24PTC RESET FUSE 24V 250MA 1206 |
3,439 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 24V | 250 mA | 550 mA | 100 A | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
|
SMD1206B050TFPTC RESET FUSE 6V 500MA 1206 |
2,255 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.033" (0.85mm) | - |
,-Concave.jpg "0ZCG0050FF2C")
|
0ZCG0050FF2CPTC RESET FUSE 16V 500MA 1812 |
342,432 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.026" (0.65mm) | - |
|
|
SMD1206B075TF/13.2PTC RESET FUSE 13.2V 750MA 1206 |
11,203 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
|
SMD1206B200TFPTC RESET FUSE 6V 2A 1206 |
3,631 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 3.5 A | 100 A | 1.5 s | 18 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
|
SMD1812B150TF/16PTC RESET FUSE 16V 1.5A 1812 |
2,930 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.5 A | 2.8 A | 100 A | 500 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
|
SMD1206B110TFTPTC RESET FUSE 8V 1.1A 1206 |
1,719 | - |
|
Datasheet | 1206 (3216 Metric), Concave | SMD1206 | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|
SMD0805B020TFPTC RESET FUSE 9V 200MA 0805 |
31,031 | - |
|
Datasheet | 0805 (2012 Metric), Concave | SMD0805 | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 500 mA | 100 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
