PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing

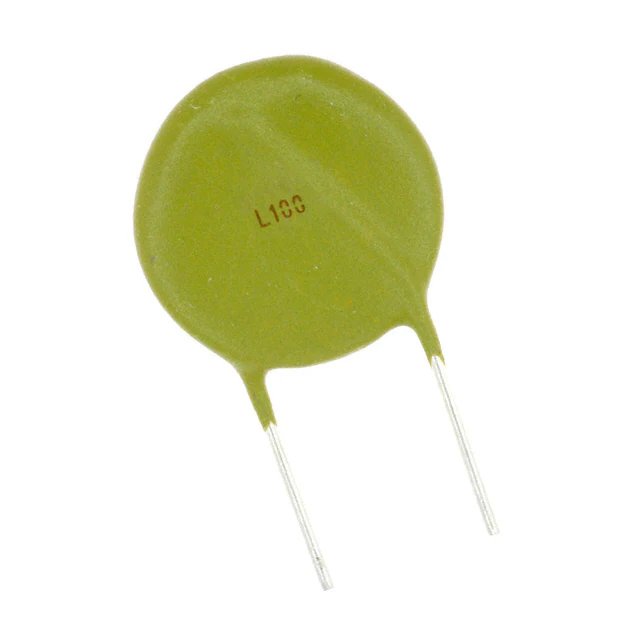

LVR100S PTC RESET FUSE 240V 1A RADIAL Littelfuse Inc.	2,661	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	1 A	2 A	10 A	21 s	218 mOhms	580 mOhms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.736" Dia x 0.201" T (18.70mm x 5.10mm)	0.961" (24.40mm)	-	0.400" (10.15mm)

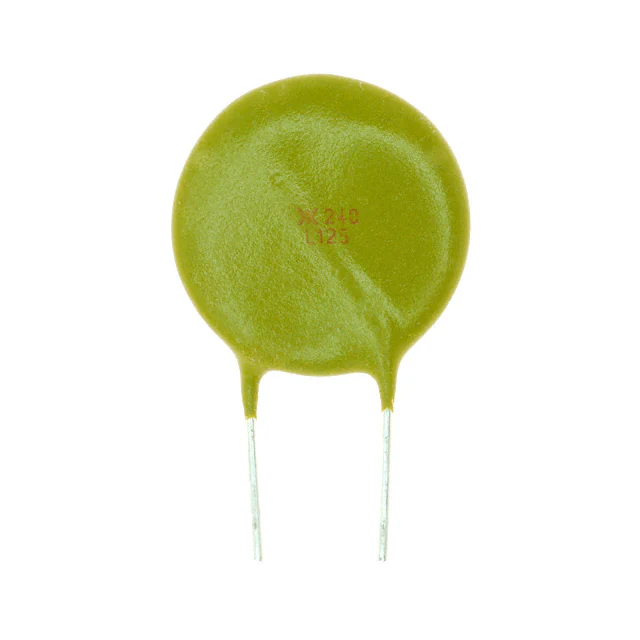

LVR125S PTC RESET FUSE 240V 1.25A RADIAL Littelfuse Inc.	6,809	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	1.25 A	2.5 A	12.5 A	23 s	165 mOhms	440 mOhms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.835" Dia x 0.209" T (21.20mm x 5.30mm)	1.079" (27.40mm)	-	0.400" (10.15mm)
LVR200S PTC RESET FUSE 240V 2A RADIAL Littelfuse Inc.	8,066	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bulk	Obsolete	Polymeric	240V (265V Int)	2 A	4 A	20 A	28 s	89 mOhms	221 mOhms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.980" L x 0.240" W (24.90mm x 6.10mm)	1.331" (33.80mm)	-	0.400" (10.15mm)
PTGL07BB220N0B52A0 PTC RESET FUSE 250V 130MA RADIAL Murata Electronics	9,900	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Cut Tape (CT)	Obsolete	Ceramic	250V	130 mA	250 mA	500 mA	-	-	-	22 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.315" Dia x 0.236" T (8.00mm x 6.00mm)	0.315" (8.00mm)	-	0.197" (5.00mm)
PTGL09AR390N0B52A0 PTC RESET FUSE 250V 115MA RADIAL Murata Electronics	7,306	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Ceramic	250V	115 mA	245 mA	600 mA	-	-	-	39 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.394" Dia x 0.236" T (10.00mm x 6.00mm)	0.630" (16.00mm)	-	0.197" (5.00mm)
PTGL09AR250H8B52B0 PTC RESET FUSE 265V 150MA RADIAL Murata Electronics	4,829	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	265V	150 mA	290 mA	1 A	-	-	-	25 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.394" Dia x 0.236" T (10.00mm x 6.00mm)	0.630" (16.00mm)	-	0.197" (5.00mm)
CMF-SD25-2 PTC RESET FUSE 230V 130MA 4SMD Bourns Inc.	8,226	-	RFQ	Datasheet	4-SMD Cube	CMF-SD	Tape & Reel (TR)	Obsolete	Ceramic	230V (600V Int)	130 mA	260 mA	2.8 A	300 ms	-	-	25 Ohms	-	-	-	-	Surface Mount	0.402" L x 0.354" W (10.20mm x 9.00mm)	-	0.425" (10.80mm)	-

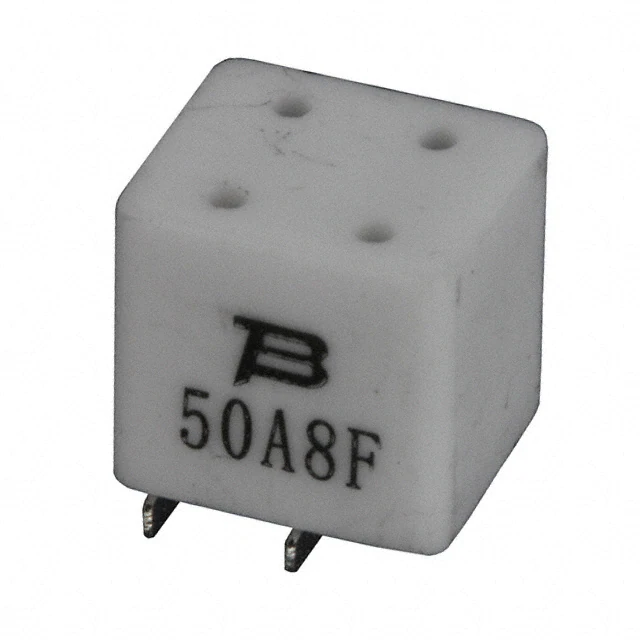

CMF-SD50A-10-2 PTC RESET FUSE 230V 90MA 4SMD Bourns Inc.	8,646	-	RFQ	Datasheet	4-SMD Cube	CMF-SD	Tape & Reel (TR)	Obsolete	Ceramic	230V (600V Int)	90 mA	190 mA	3 A	100 ms	-	-	50 Ohms	-	-	-	-	Surface Mount	0.319" L x 0.282" W (8.10mm x 7.15mm)	-	0.335" (8.50mm)	-
YPBL2.30T PTC RESET FUSE 80V 450MA RADIAL Amphenol Advanced Sensors (Thermometrics)	8,550	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	450 mA	900 mA	8 A	-	-	-	2.3 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.689" Dia x 0.138" T (17.50mm x 3.50mm)	0.748" (19.00mm)	-	0.200" (5.08mm)
YPBL5.60T PTC RESET FUSE 80V 250MA RADIAL Amphenol Advanced Sensors (Thermometrics)	6,815	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	250 mA	500 mA	4.3 A	-	-	-	5.6 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.433" Dia x 0.138" T (11.00mm x 3.50mm)	0.492" (12.50mm)	-	0.200" (5.08mm)
YPBL9.40T PTC RESET FUSE 80V 150MA RADIAL Amphenol Advanced Sensors (Thermometrics)	6,423	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	150 mA	300 mA	3 A	-	-	-	9.4 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.354" Dia x 0.138" T (9.00mm x 3.50mm)	0.413" (10.50mm)	-	0.200" (5.08mm)
YPBL0025T PTC RESET FUSE 80V 85MA RADIAL Amphenol Advanced Sensors (Thermometrics)	9,673	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	80V	85 mA	170 mA	1 A	-	-	-	25 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.138" T (6.50mm x 3.50mm)	0.315" (8.00mm)	-	0.200" (5.08mm)
YPCL0006T PTC RESET FUSE 265V 330MA RADIAL Amphenol Advanced Sensors (Thermometrics)	3,096	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	330 mA	660 mA	4.1 A	-	-	-	6 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.689" Dia x 0.197" T (17.50mm x 5.00mm)	0.748" (19.00mm)	-	0.200" (5.08mm)
YPCL0025T PTC RESET FUSE 265V 100MA RADIAL Amphenol Advanced Sensors (Thermometrics)	8,459	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	100 mA	200 mA	1 A	-	-	-	25 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.354" Dia x 0.197" T (9.00mm x 5.00mm)	0.413" (10.50mm)	-	0.200" (5.08mm)
YPCL0120T PTC RESET FUSE 265V 35MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,011	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	265V	35 mA	80 mA	400 mA	-	-	-	120 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	0.315" (8.00mm)	-	0.200" (5.08mm)
YPDL0600T PTC RESET FUSE 420V 21MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,676	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	420V	21 mA	39 mA	200 mA	-	-	-	600 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	0.315" (8.00mm)	-	0.200" (5.08mm)
YPEK1200T PTC RESET FUSE 550V 15MA RADIAL Amphenol Advanced Sensors (Thermometrics)	7,348	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	550V	15 mA	30 mA	100 mA	-	-	-	1.2 kOhms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	0.315" (8.00mm)	-	0.200" (5.08mm)
YPEK3500T PTC RESET FUSE RADIAL DISC Amphenol Advanced Sensors (Thermometrics)	3,711	-	RFQ	Datasheet	Radial, Disc	YP	Tape & Reel (TR)	Active	Ceramic	-	-	-	-	-	-	-	-	-	-	-	-	Through Hole	0.157" Dia x 0.157" T (4.00mm x 4.00mm)	0.217" (5.50mm)	-	0.200" (5.08mm)
SRP120SF PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	2,513	-	RFQ	Datasheet	Strap	PolySwitch®, SRP	Bulk	Active	Polymeric	15V	1.2 A	2.7 A	100 A	5 s	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.827" L x 0.199" W (21.00mm x 5.05mm)	-	0.039" (1.00mm)	-
SRP175LF PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	7,434	-	RFQ	Datasheet	Strap	PolySwitch®	Bulk	Active	Polymeric	15V	1.75 A	3.8 A	100 A	5 s	50 mOhms	90 mOhms	-	-	-	-	-	User Defined	0.866" L x 0.199" W (22.00mm x 5.05mm)	-	0.039" (1.00mm)	-

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
