PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
SRP175SF PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	3,630	-	RFQ	Datasheet	Strap	PolySwitch®, SRP	Bulk	Active	Polymeric	15V	1.75 A	3.8 A	100 A	5 s	50 mOhms	120 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.866" L x 0.199" W (22.00mm x 5.05mm)	-	0.039" (1.00mm)	-

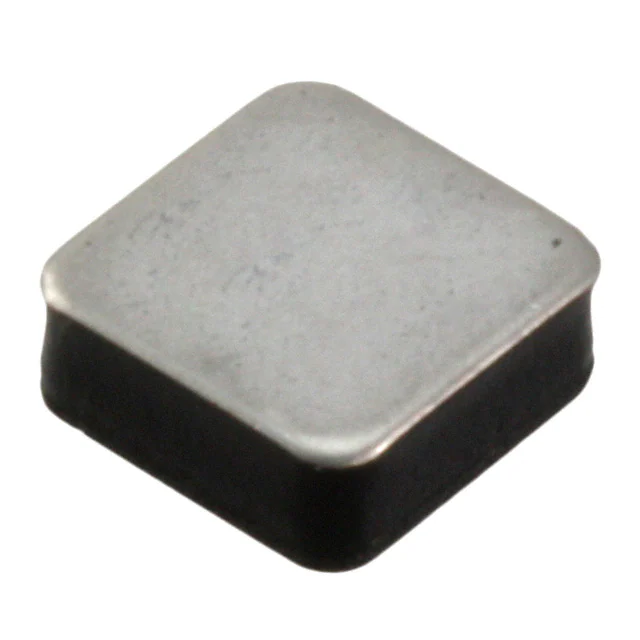

TCF250-100T-RB-B-0.5 PTC RESET FUSE 60V 90MA SMD Littelfuse Inc.	9,848	-	RFQ	Datasheet	Nonstandard SMD	PolySwitch®, TCF250	Bulk	Active	Polymeric	60V (250V Int)	90 mA	150 mA	3 A	200 ms	15.4 Ohms	24 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.187" L x 0.187" W (4.75mm x 4.75mm)	-	0.091" (2.30mm)	-
TRF250-120T-RG-B-0.5 PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc.	4,350	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bulk	Active	Polymeric	60V (250V Int)	120 mA	240 mA	3 A	750 ms	8.5 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.256" L x 0.181" W (6.50mm x 4.60mm)	0.433" (11.00mm)	-	0.197" (5.00mm)

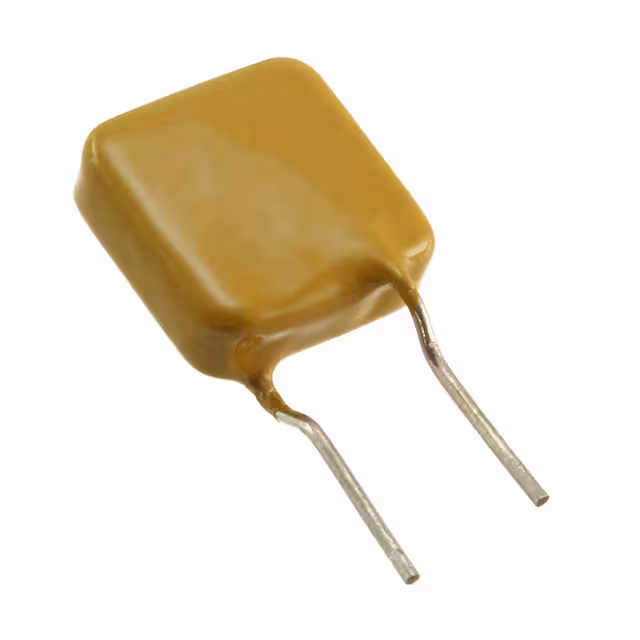

TR600-150QF-EX-B-0.5 PTC RESET FUSE RADIAL DISC Littelfuse Inc.	6,209	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TR600	Bag	Active	Polymeric	-	-	-	-	-	-	-	-	-	-	-	-	Through Hole	0.532" L x 0.236" W (13.50mm x 6.00mm)	0.496" (12.60mm)	-	0.197" (5.00mm)
VLP190UF PTC RESET FUSE 16V 1.9A STRAP Littelfuse Inc.	7,994	-	RFQ	Datasheet	Strap	PolySwitch®, VLP	Bulk	Active	Polymeric	16V	1.9 A	4.7 A	60 A	5 s	21 mOhms	72 mOhms	-	-	-	-	-	User Defined	1.004" L x 0.906" W (25.50mm x 23.00mm)	-	0.276" (7.00mm)	-

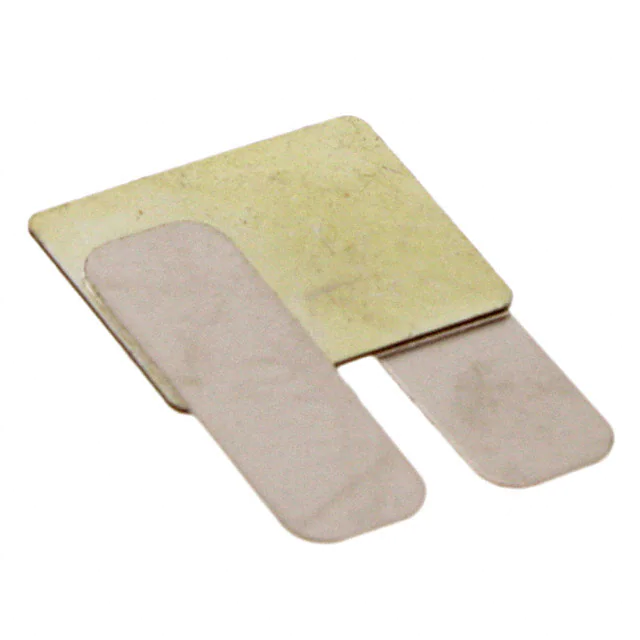

VLP270XXUF PTC RESET FUSE 16V 2.7A STRAP Littelfuse Inc.	3,343	-	RFQ	Datasheet	Strap	PolySwitch®, VLP	Bulk	Active	Polymeric	16V	2.7 A	6.5 A	60 A	5 s	12 mOhms	36 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.866" L x 0.201" W (22.00mm x 5.10mm)	-	0.032" (0.80mm)	-
VLR170UF PTC RESET FUSE 12V 1.7A STRAP Littelfuse Inc.	6,736	-	RFQ	Datasheet	Strap	PolySwitch®, VLR	Bulk	Active	Polymeric	12V	1.7 A	4.1 A	100 A	5 s	18 mOhms	64 mOhms	-	-40°C ~ 70°C	-	-	-	User Defined	0.866" L x 0.142" W (22.00mm x 3.60mm)	-	0.028" (0.70mm)	-
VLR175UF PTC RESET FUSE 12V 1.75A STRAP Littelfuse Inc.	5,651	-	RFQ	Datasheet	Strap	PolySwitch®, VLR	Bulk	Active	Polymeric	12V	1.75 A	4.2 A	100 A	5 s	17 mOhms	62 mOhms	-	-40°C ~ 70°C	-	-	-	User Defined	0.935" L x 0.118" W (23.75mm x 3.00mm)	-	0.028" (0.70mm)	-
LVR005NS-1 PTC RESET FUSE 240V 50MA RADIAL Littelfuse Inc.	6,045	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	50 mA	120 mA	1 A	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.272" Dia x 0.181" T (6.90mm x 4.60mm)	0.390" (9.90mm)	-	0.200" (5.08mm)
LVR005NK-2 PTC RESET FUSE 240V 50MA RADIAL Littelfuse Inc.	3,273	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Tape & Reel (TR)	Active	Polymeric	240V	50 mA	120 mA	1 A	10 s	18.5 Ohms	65 Ohms	-	-	-	-	-	Through Hole	0.272" Dia x 0.181" T (6.90mm x 4.60mm)	0.476" (12.10mm)	-	0.200" (5.08mm)
16R1100GMR PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	4,233	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Tape & Box (TB)	Obsolete	Polymeric	16V	11 A	18.7 A	100 A	7 s	3.7 mOhms	8.9 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.689" L x 0.118" W (17.50mm x 3.00mm)	1.024" (26.00mm)	-	0.201" (5.10mm)
16R1200GMR PTC RESET FUSE 16V 12A RADIAL Littelfuse Inc.	9,345	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Tape & Box (TB)	Obsolete	Polymeric	16V	12 A	20.4 A	100 A	7.5 s	3.3 mOhms	8.6 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.689" L x 0.138" W (17.50mm x 3.50mm)	1.102" (28.00mm)	-	0.402" (10.20mm)
16R800GMR PTC RESET FUSE 16V 8A RADIAL Littelfuse Inc.	8,025	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Tape & Box (TB)	Obsolete	Polymeric	16V	8 A	13.6 A	100 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.500" L x 0.118" W (12.70mm x 3.00mm)	0.823" (20.90mm)	-	0.201" (5.10mm)
72R300XMR PTC RESET FUSE 72V 3A RADIAL Littelfuse Inc.	2,091	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 72R	Tape & Box (TB)	Obsolete	Polymeric	72V	3 A	6 A	40 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.910" Dia x 0.122" T (23.11mm x 3.10mm)	1.154" (29.30mm)	-	0.402" (10.20mm)
16R250GU PTC RESET FUSE 16V 2.5A RADIAL Littelfuse Inc.	8,379	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Bulk	Obsolete	Polymeric	16V	2.5 A	4.7 A	100 A	5 s	22 mOhms	53 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.350" L x 0.118" W (8.90mm x 3.00mm)	0.504" (12.80mm)	-	0.201" (5.10mm)
16R600GU PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	9,623	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Bulk	Obsolete	Polymeric	16V	6 A	10.2 A	100 A	3.3 s	10 mOhms	28 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.421" L x 0.118" W (10.70mm x 3.00mm)	0.673" (17.10mm)	-	0.201" (5.10mm)
16R700GF PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	4,979	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Bulk	Obsolete	Polymeric	16V	7 A	11.9 A	100 A	3.5 s	7.7 mOhms	20 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.441" L x 0.118" W (11.20mm x 3.00mm)	0.776" (19.70mm)	-	0.201" (5.10mm)
16R1000GF PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	2,028	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Bulk	Obsolete	Polymeric	16V	10 A	17 A	100 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.992" (25.20mm)	-	0.201" (5.10mm)
16R1200GH PTC RESET FUSE 16V 12A RADIAL Littelfuse Inc.	9,201	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Bulk	Obsolete	Polymeric	16V	12 A	20.4 A	100 A	7.5 s	3.3 mOhms	8.6 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.689" L x 0.138" W (17.50mm x 3.50mm)	1.102" (28.00mm)	-	0.402" (10.20mm)
72R020XU PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	5,921	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 72R	Bulk	Obsolete	Polymeric	72V	200 mA	400 mA	40 A	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.122" T (7.40mm x 3.10mm)	0.461" (11.70mm)	-	0.201" (5.10mm)

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
