PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRC0050FF2EPTC RESET FUSE 90V 500MA RADIAL |
16,926 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" L x 0.122" W (7.90mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|
0ZRR0017FF1EPTC RESET FUSE 60V 170MA RADIAL |
3,002 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PFUF.010.2PTC RESET FUSE 30V 100MA 1210 |
6,230 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 30V | 100 mA | 300 mA | 10 A | 600 ms | 800 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.093" W (3.22mm x 2.35mm) | - | 0.037" (0.95mm) | - |
|
PFNF.075.2PTC RESET FUSE 6V 750MA 1206 |
5,162 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.110.2PTC RESET FUSE 6V 1.1A 1210 |
2,847 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.050.2PTC RESET FUSE 13.2V 500MA 1210 |
1,241 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
|
PFUF.150.2PTC RESET FUSE 6V 1.5A 1210 |
1,050 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PFUF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 40 A | 5 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.025" (0.63mm) | - |
|
PTSA121013V050PTC RESET FUSE 500MA 13V 1210 |
3,944 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PTSA1210 | Tape & Reel (TR) | Active | - | 13.2V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.098" W (3.25mm x 2.50mm) | - | 0.033" (0.85mm) | - |
|
PTSA181230V030PTC RESET FUSE 300MA 30V 1812 |
1,736 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 30V | 300 mA | 600 mA | 40 A | 150 ms | 200 mOhms | 1.75 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA181260V010PTC RESET FUSE 100MA 60V 1812 |
1,373 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 60V | 100 mA | 300 mA | 10 A | 150 ms | 700 mOhms | 15 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
MF-LR190PTC RESET FUSE 15V 1.9A STRAP |
5,989 | - |
|
Datasheet | Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 15V | 1.9 A | 3.9 A | 100 A | 5 s | 39 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
|
PTSA181260V014PTC RESET FUSE 140MA 60V 1812 |
3,995 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 60V | 140 mA | 340 mA | 10 A | 300 ms | 650 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.039" (1.00mm) | - |
|
RXEF050S-APPTC RESET FUSE 72V 500MA RADIAL |
3,773 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|

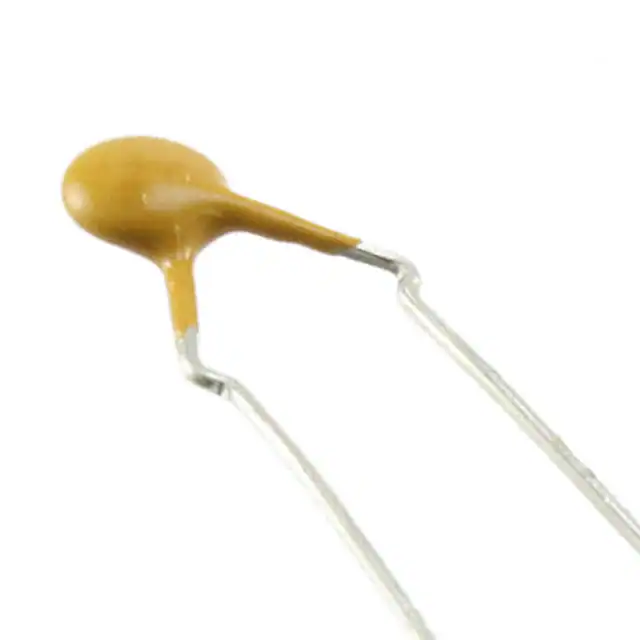

RXEF017S-2PTC RESET FUSE 60V 170MA RADIAL |
5,000 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.441" (11.20mm) | - | 0.199" (5.05mm) |
|
MF-R020-APPTC RESET FUSE 60V 200MA RADIAL |
1,548 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-R135-2PTC RESET FUSE 30V 1.35A RADIAL |
18,371 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
RUEF135-APPTC RESET FUSE 30V 1.35A RADIAL |
3,999 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Cut Tape (CT) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 100 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
0ZRG0160FF1EPTC RESET FUSE 30V 1.6A RADIAL |
2,651 | - |
|
Datasheet | Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0110FF1EPTC RESET FUSE 30V 1.1A RADIAL |
1,824 | - |
|
Datasheet | Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZRG0090FF1EPTC RESET FUSE 30V 900MA RADIAL |
1,467 | - |
|
Datasheet | Radial, Disc | 0ZRG | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
