PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR030V0250-TRPTC RESET FUSE 30V 2.5A RADIAL |
1,430 | - |
|
Datasheet | Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.197" (5.00mm) |
|
MF-R090-0-17PTC RESETTABLE 0.9A 60V RADIAL L |
2,343 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-RX110/72-2-14PTC RESET FUSE 72V 1.1A RADIAL |
2,999 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Cut Tape (CT) | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.663" (16.84mm) | - | 0.201" (5.10mm) |
|
MF-R185-APPTC RESET FUSE 30V 1.85A RADIAL |
2,594 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" Dia x 0.118" T (12.00mm x 3.00mm) | 0.724" (18.40mm) | - | 0.201" (5.10mm) |
|
MF-NSMF175-21206 POLYMER PTC 1.75A/6V |
2,580 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 1 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.063" (1.60mm) | - |
|
ASMD250F-2PTC RESET FUSE 16V 1.97A 2SMD |
1,435 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.97 A | 5 A | 40 A | 30 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
72R090XPRPTC RESET FUSE 72V 900MA RADIAL |
2,860 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.122" T (11.20mm x 3.10mm) | 0.622" (15.80mm) | - | 0.201" (5.10mm) |
|
RGEF600-2PTC RESET FUSE 16V 6A RADIAL |
1,945 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|

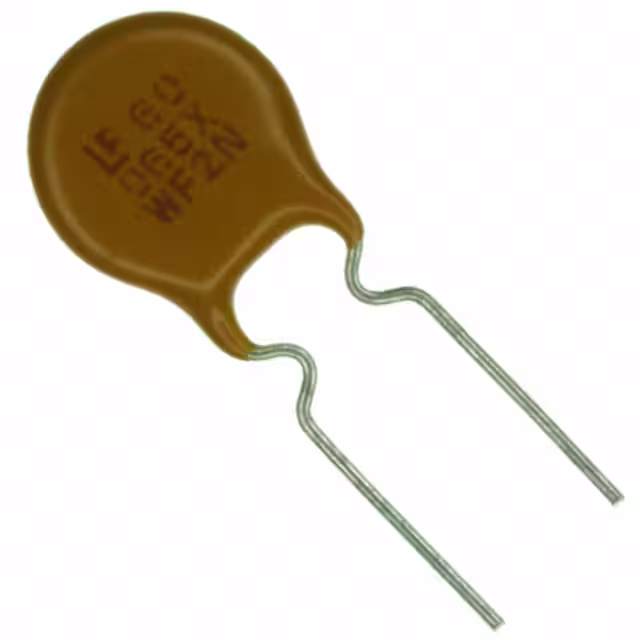

60R065XPRPTC RESET FUSE 60V 650MA RADIAL |
3,897 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.370" Dia x 0.122" T (9.40mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
MF-RX050/72-2PTC RESET FUSE 72V 500MA RADIAL |
3,785 | - |
|
Datasheet | Radial, Disc | MF-RX/72 | Tape & Reel (TR) | Active | - | 72V | 500 mA | 1 A | 40 A | 4 s | - | - | - | - | - | - | - | Through Hole | 0.311" Dia x 0.122" W (7.90mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|
MF-RM012/240-0PTC RESET FUSE 240V 120MA RADIAL |
2,945 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RM | Bulk | Active | Polymeric | 240V (265V Int) | 120 mA | 300 mA | 1.2 A | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.114" (2.90mm) |
|
MF-RG700-0PTC RESET FUSE 16V 7A RADIAL |
2,580 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 8 mOhms | 21 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.740" (18.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RX040/72-2PTC RESET FUSE 72V 400MA RADIAL |
2,247 | - |
|
Datasheet | Radial, Disc | MF-RX/72 | Tape & Reel (TR) | Active | - | 72V | 400 mA | 800 mA | 40 A | 3.9 s | - | - | - | - | - | - | - | Through Hole | 0.291" Dia x 0.122" W (7.40mm x 3.10mm) | - | - | 0.201" (5.10mm) |
|
MF-VS170-0PTC RESET FUSE 16V 1.7A STRAP |
1,982 | - |
|
Datasheet | Strap | Multifuse®, MF-VS | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.669" L x 0.205" W (17.00mm x 5.20mm) | - | 0.035" (0.90mm) | - |
|
LVR008NS-1PTC RESET FUSE 240V 80MA RADIAL |
1,500 | - |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.402" (10.20mm) | - | 0.200" (5.08mm) |
|
MF-USML260/12-2PTC RESET FUSE 12V 2.6A 1210 |
4,860 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2.6 A | 5.2 A | 50 A | 5 s | 4 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.031" (0.80mm) | - |
|
CMF-RL50-10-0PTC RESET FUSE 220V 65MA RADIAL |
3,551 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 65 mA | 150 mA | 3 A | 150 ms | - | - | 50 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.386" L x 0.197" W (9.80mm x 5.00mm) | 0.532" (13.50mm) | - | 0.200" (5.08mm) |
|

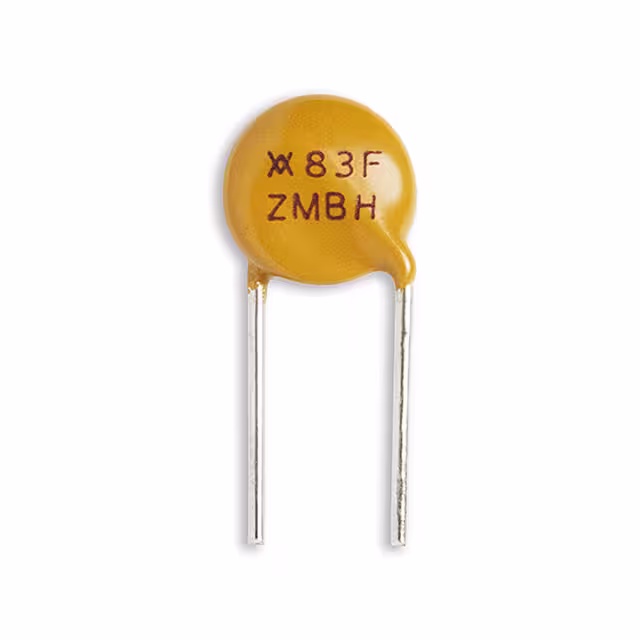

TRF250-183SPTC RESET FUSE 100V 183MA RADIAL |
1,210 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.295" Dia x 0.150" T (7.50mm x 3.80mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
0ZRN0070FF1EPTC RESET FUSE 30V 700MA RADIAL |
2,985 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|
|
MF-RG800-0PTC RESET FUSE 16V RADIAL DISC |
2,829 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | - | - | 100 A | - | - | - | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
