PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
MF-PSML400/8-2 PTC RESET FUSE 8V 4A 0805 Bourns Inc.	1,717	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Multifuse®, MF-PSML/X	Tape & Reel (TR)	Active	Polymeric	8V	4 A	8 A	50 A	12.5 s	1 mOhms	14 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.055" (1.40mm)	-
B59770B0120A070 PTC RESET FUSE 420V RADIAL DISC EPCOS - TDK Electronics	930	-	RFQ	Datasheet	Radial, Disc	B59770	Bulk	Active	Ceramic	420V	-	127 mA	1.4 A	4 s	-	-	70 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.335" Dia x 0.276" T (8.50mm x 7.00mm)	0.197" (5.00mm)	-	0.197" (5.00mm)
B59860C0080A070 PTC RESET FUSE 265V 90MA RADIAL EPCOS - TDK Electronics	990	-	RFQ	Datasheet	Radial, Disc	-	Bulk	Active	Ceramic	265V	90 mA	180 mA	1.5 A	-	-	-	15 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.354" Dia x 0.197" T (9.00mm x 5.00mm)	0.492" (12.50mm)	-	0.197" (5.00mm)
PTR016V1400-TR1 PTC RESET FUSE 16V 14A RADIAL Eaton - Electronics Division	742	-	RFQ	Datasheet	Radial, Disc	PTR016V	Tape & Reel (TR)	Active	Polymeric	16V	14 A	23.8 A	100 A	9 s	2 mOhms	7 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.925" L x 0.122" W (23.50mm x 3.10mm)	1.181" (30.00mm)	-	0.394" (10.00mm)
B59850C0080A070 PTC RESET FUSE 265V 110MA RADIAL EPCOS - TDK Electronics	943	-	RFQ	Datasheet	Radial, Disc	-	Bulk	Active	Ceramic	265V	110 mA	230 mA	2.2 A	-	-	-	10 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.532" Dia x 0.197" T (13.50mm x 5.00mm)	0.669" (17.00mm)	-	0.197" (5.00mm)

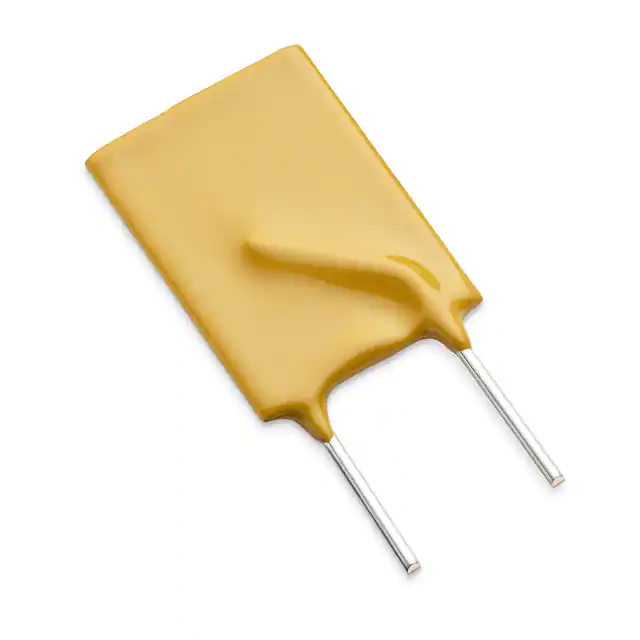

AHRL1300 PTC RESET FUSE 13A 16V RAD Littelfuse Inc.	240	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRL	Bulk	Active	Polymeric	16V	13 A	26 A	100 A	14 s	3.3 mOhms	5.3 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.685" L x 0.142" W (17.40mm x 3.60mm)	0.976" (24.80mm)	-	0.400" (10.15mm)
PFRA.400.2 PTC RESET FUSE 30V 4A RADIAL SCHURTER Inc.	1,195	-	RFQ	Datasheet	Radial, Disc	PFRA	Tape & Reel (TR)	Active	Polymeric	30V	4 A	8 A	40 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.567" L x 0.118" W (14.40mm x 3.00mm)	0.976" (24.80mm)	-	0.201" (5.10mm)
YQS5750PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Advanced Sensors (Thermometrics)	995	-	RFQ	Datasheet	Radial, Disc	PTO	Bulk	Active	Ceramic	25V	-	-	-	-	-	-	50 Ohms	10°C ~ 55°C	-	-	-	Through Hole	0.350" Dia x 0.150" T (8.90mm x 3.80mm)	0.413" (10.50mm)	-	0.197" (5.00mm)
MF-PSML380/8-2 PTC RESET FUSE 8V 3.8A 0805 Bourns Inc.	7,260	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Multifuse®, MF-PSML/X	Tape & Reel (TR)	Active	Polymeric	8V	3.8 A	7.6 A	50 A	5 s	1 mOhms	16 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.085" L x 0.053" W (2.15mm x 1.35mm)	-	0.055" (1.40mm)	-
RHEF1500-2 PTC RESET FUSE 16V 15A RADIAL Littelfuse Inc.	770	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RHEF	Tape & Reel (TR)	Active	Polymeric	16V	15 A	28 A	100 A	20 s	3.2 mOhms	9.2 mOhms	-	-40°C ~ 125°C	-	-	-	Through Hole	0.925" L x 0.142" W (23.50mm x 3.60mm)	1.130" (28.70mm)	-	0.400" (10.15mm)
MF-RG1000-2 PTC RESET FUSE 16V 10A RADIAL Bourns Inc.	2,759	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RG	Tape & Reel (TR)	Active	Polymeric	16V	10 A	17 A	100 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.854" (21.70mm)	-	0.201" (5.10mm)
MF-RG1000-0 PTC RESET FUSE 16V 10A RADIAL Bourns Inc.	2,723	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RG	Bag	Active	Polymeric	16V	10 A	17 A	100 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	0.854" (21.70mm)	-	0.201" (5.10mm)
MF-RHT1300-2 PTC RESET FUSE 16V 13A RADIAL Bourns Inc.	187	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Tape & Reel (TR)	Active	Polymeric	16V	13 A	24 A	100 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.925" L x 0.142" W (23.50mm x 3.60mm)	1.130" (28.70mm)	-	0.215" (5.45mm)
AHRL1400 PTC RESET FUSE 14A 16V RAD Littelfuse Inc.	790	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRL	Bulk	Active	Polymeric	16V	14 A	28 A	100 A	16 s	3.1 mOhms	4.8 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.685" L x 0.142" W (17.40mm x 3.60mm)	1.039" (26.40mm)	-	0.400" (10.15mm)
YQS8120 PTC RESET FUSE 420V 21MA RADIAL Amphenol Advanced Sensors (Thermometrics)	730	-	RFQ	Datasheet	Radial, Disc	YP	Bulk	Active	Ceramic	420V	21 mA	39 mA	200 mA	-	-	-	600 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.256" Dia x 0.197" T (6.50mm x 5.00mm)	0.472" (12.00mm)	-	0.236" (6.00mm)
1206L350SLWR PTC RESET FUSE 6V 3.5A 1206 Littelfuse Inc.	1,561	-	RFQ	Datasheet	1206 (3216 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	3.5 A	7 A	50 A	2 s	3 mOhms	18 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.128" L x 0.065" W (3.25mm x 1.65mm)	-	0.030" (0.75mm)	-
1812L300SLPR PTC RESET FUSE 6V 3A 1812 Littelfuse Inc.	1,311	-	RFQ	Datasheet	1812 (4532 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	3 A	7 A	50 A	5 s	3 mOhms	21 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.030" (0.75mm)	-
MF-LR900/20-0 PTC RESET FUSE 20V 9A STRAP Bourns Inc.	578	-	RFQ	Datasheet	Strap	Multifuse®, MF-LR	Bulk	Active	Polymeric	20V	9 A	16.7 A	100 A	5 s	6 mOhms	14 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	1.831" L x 0.323" W (46.50mm x 8.20mm)	-	0.051" (1.30mm)	-
YS5869PTF PTC RESET FUSE 120V 60MA RADIAL Amphenol Advanced Sensors (Thermometrics)	1,476	-	RFQ	Datasheet	Radial, Disc	PTF	Bulk	Active	Ceramic	120V	60 mA	110 mA	-	-	-	-	100 Ohms	10°C ~ 55°C	-	-	-	Through Hole	0.402" Dia x 0.122" T (10.20mm x 3.10mm)	0.402" (10.20mm)	-	0.252" (6.40mm)
0805L350SLYR PTC RESET FUSE 3.5A 6V 0805 Littelfuse Inc.	1,427	-	RFQ	Datasheet	0805 (2012 Metric), Concave	POLY-FUSE®, LoRho	Tape & Reel (TR)	Active	Polymeric	6V	3.5 A	7 A	50 A	5 s	3 mOhms	25 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.083" L x 0.053" W (2.10mm x 1.35mm)	-	0.055" (1.40mm)	-

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
