PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFRA.090.2PTC RESET FUSE 60V 900MA RADIAL |
1,880 | - |
|
Datasheet | Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-USHT016KX-2PTC RESET FUSE 30V 160MA 1210 |
1,833 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Active | Polymeric | 30V | 160 mA | 800 mA | 20 A | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
0ZSC0450FF1EPTC RESET FUSE 20V 4.5A STRAP |
2,406 | - |
|
Datasheet | Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.402" W (25.00mm x 10.20mm) | - | 0.039" (1.00mm) | - |
|
PTR016V1000-TRPTC RESET FUSE 16V 10A RADIAL |
965 | - |
|
Datasheet | Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.122" W (16.50mm x 3.10mm) | 0.992" (25.20mm) | - | 0.197" (5.00mm) |
|
AHRL700PTC RESET FUSE 7A 16V RAD |
138 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 7 A | 14 A | 100 A | 6.8 s | 8.5 mOhms | 14 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.465" L x 0.118" W (11.80mm x 3.00mm) | 0.685" (17.40mm) | - | 0.199" (5.05mm) |
|
RXEF300KPTC RESET FUSE 72V 3A RADIAL |
362 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.910" Dia x 0.118" T (23.11mm x 3.00mm) | 1.154" (29.30mm) | - | 0.400" (10.15mm) |
|
MF-LSMF300X-2PTC RESET FUSE 6V 3A 2920 |
348 | - |
|
Datasheet | 2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 40 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.033" (0.85mm) | - |
|
AGRF800-2PTC RESET FUSE 16V 8A RADIAL |
234 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
B59995C0160A070PTC RESET FUSE 20V 150MA RADIAL |
1,008 | - |
|
Datasheet | Radial, Disc | B59995 | Bulk | Active | Ceramic | 20V | 150 mA | 300 mA | 700 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) |
|

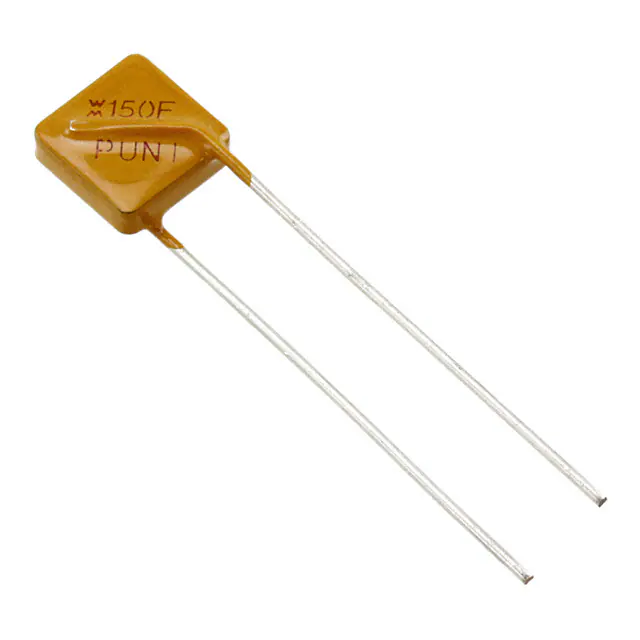

TRF600-150S-2PTC RESET FUSE 250V 150MA RADIAL |
635 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RGEF1000-1PTC RESET FUSE 16V 10A RADIAL |
225 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.098" W (16.50mm x 2.50mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|
|
MICROASMDCH075F-2PPTC-MINI-PSW |
3,655 | - |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 750 mA | 2.25 A | 20 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
|
MF-R1100-2PTC RESET FUSE 16V 11A RADIAL |
1,680 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 22 A | 100 A | 20 s | 3 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
|
RGEF1200-1PTC RESET FUSE 16V 12A RADIAL |
228 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
PTR060V0300-BKPTC RESET FUSE 60V 3A RADIAL |
240 | - |
|
Datasheet | Radial, Disc | PTR060V | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.118" T (24.90mm x 3.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) |
|
MF-RHT700-0PTC RESET FUSE 16V 7A RADIAL |
2,557 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Bag | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
.jpg "MF-PSML450/8-2")
|
MF-PSML450/8-2PTC RESET FUSE 8V 4.5A 0805 |
2,498 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 8V | 4.5 A | 9 A | 50 A | 12.5 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
RUEF800K-2PTC RESET FUSE 30V 8A RADIAL |
224 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 8 A | 16 A | 100 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.189" (30.20mm) | - | 0.400" (10.15mm) |
|
|
72R160XMRPTC RESET FUSE 72V 1.6A RADIAL |
6,947 | - |
|
Datasheet | Radial, Disc | POLY-FUSE®, 72R | Cut Tape (CT) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
|
NANOASMDCH020F-2PPTC-MINI-PSW |
3,000 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoASMDC | Tape & Reel (TR) | Active | Polymeric | 24V | 200 mA | 420 mA | 100 A | 100 ms | 650 mOhms | 3.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | - | - | - | - |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
