Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T3002NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
1,419 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
T1SB01MDL 10G SINGLE PORT N/A |
2,401 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
HX4024NLMDL SIN 2.5GD 1:1 SMT TU |
2,793 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX4024NLTMDL SIN 2.5GD 1:1 SMT TR |
1,336 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1224NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,624 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

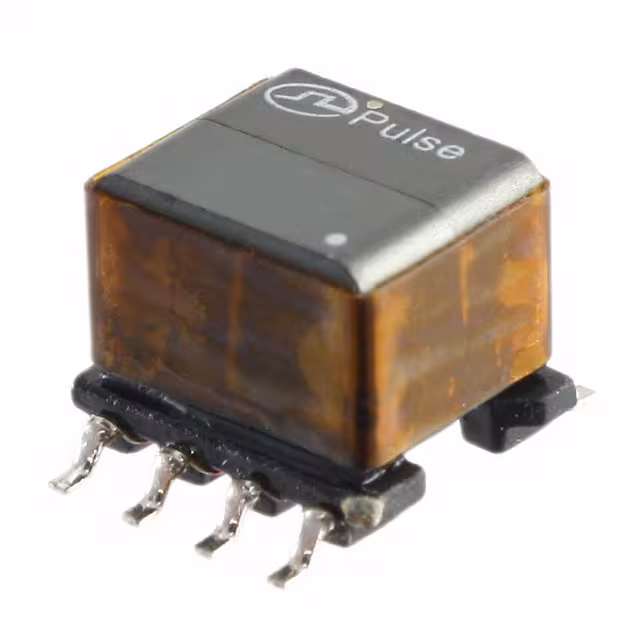

PA1281NLTXFRMR 12V 3W 310UH POE EP7 SMD |
2,806 | - |
|
Datasheet | EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | 1:0.682:0.682 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
|
T1146NLXFRMR 1:2/2.4 / 1:0.79/1 1/1MH |
1,042 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H0009TPULSE XFMR 1:1 TX 1:1 RX |
1,133 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
PA1066NLTPULSE XFMR 137UH |
3,298 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 137µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
40SS1041AX HFMDL LAN 10/100BT QUAD SMD |
3,268 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
