Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH5208RY LFMDL 1G DIP QUAD PORTS N/A |
4,744 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 70°C | - | - |
|
|
GH5210R LFMDL 1G DIP QUAD PORTS N/A |
3,484 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 85°C | - | - |
|
|
T1105NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
2,187 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TX1295NLTXFRMR 4PORT 1:1.26CT 1.2MH SMD |
3,482 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:1.26CT Transmitter, 1:1.26CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|

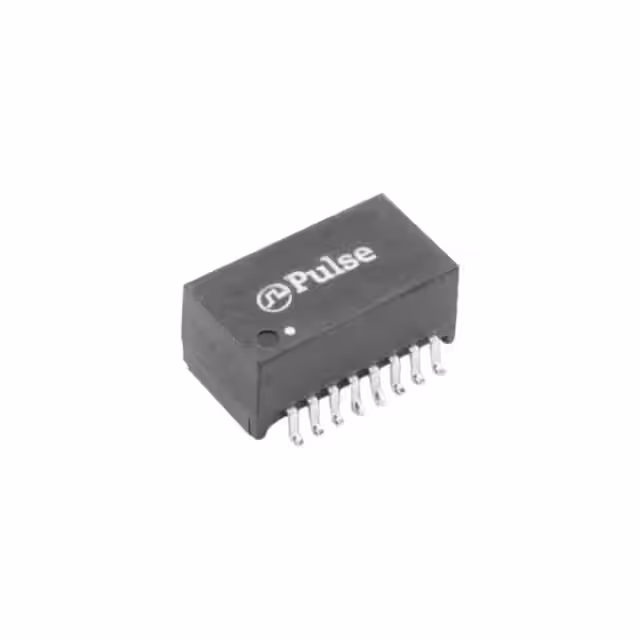

HM1193NLXFMR MDL 100BASE-T SMT AEC-Q200 |
2,806 | - |
|
Datasheet | - | Tube | Active | LAN 100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 125°C | - | - |
|
|
T1105TPULSE XFMR 1:2CT TX/RX 1.2MH |
2,245 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
EX2024FNLTPULSE XFMR 1CT:2.5CT 1CT:1CT |
3,845 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
|
HM0068BNLMDL SIN 100D 1:1 SMT TU |
3,369 | - |
|
Datasheet | - | Tube | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
|
H5143NLPULSE XFMR 1CT:1CT 350UH |
2,235 | - |
|
Datasheet | - | Tube | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
|
TX3036TPULSE XFMR 1:1 100UH |
2,601 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 100µH | - | 1:1 | Surface Mount | 0.537" L x 0.390" W (13.64mm x 9.91mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
