Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX5G1010NLTMDL SIN 5GD 1:1 SMT TR |
3,108 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General Purpose | 120µH | - | 1:1 | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

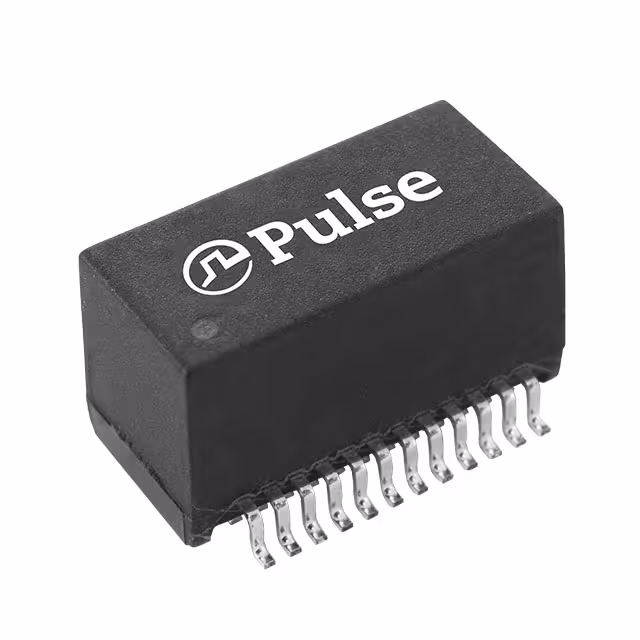

HU4108NLTMDL, SIN 2.5G, 1:1, SMT |
3,475 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.93mm) | 0.340" (8.63mm) | 0°C ~ 70°C | - | - |
|
|
GH5610RS LFMDL 1G DIP QUAD PORTS POE+ 30W |
1,570 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 70°C | - | - |
|

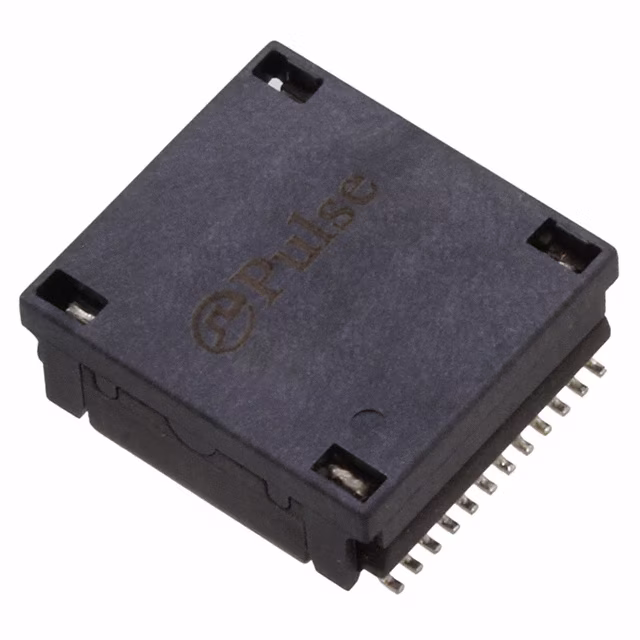

H7018FNLMODULE 10GBASE-T 1.5KVRMS SMD |
2,069 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
HDX8004NLTMDL SIN HDBT 1:1 POEP SM TR |
1,120 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HD8006FNLTMDL SIN HDBT 1:1 POEPP SMT TR |
2,804 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.625" W (17.73mm x 15.88mm) | 0.310" (7.87mm) | 0°C ~ 70°C | - | - |
|
|
H1036LNLTXFRMR MODULE 4PORT 1:1 10/100 |
4,458 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HU4108NLMODULE MAGNETIC SNGL 2.5GB SMT |
4,629 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.340" (8.63mm) | 0°C ~ 70°C | - | - |
|
|
PE-68025QNLTMODULE INTERFACE 10BASE-T SMD |
1,532 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

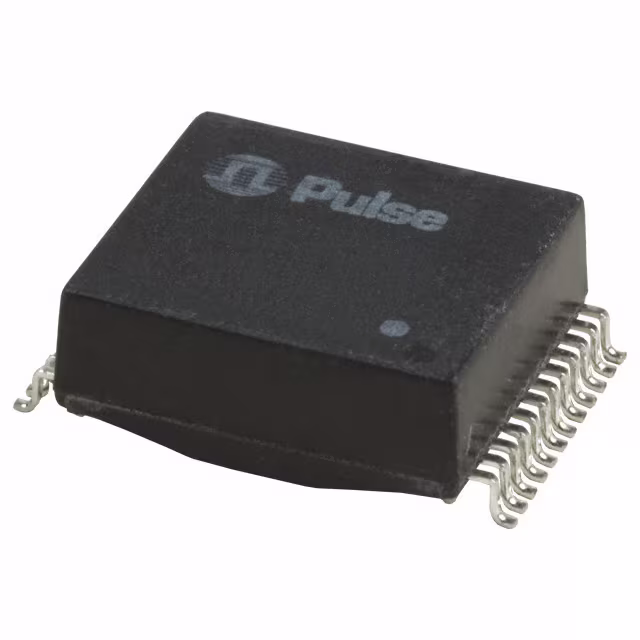

H5009NLMODULE XFORMR GIGABIT SINGLE LAN |
3,755 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
