Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EX2024NLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
3,997 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PE-2227XNLTRANSFORMER 1:1 700VRMS |
4,501 | - |
|
Datasheet | - | Tube | Active | - | 500µH | 46VµS | 1:1 | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
|
HX6106NLGIGABIT POE+ TRANSFORMER/CMC |
4,186 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
T7015NLTXFRMR 64KBPS 1:2CT/1:2CT 20MH |
1,396 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
HX5009NLTMODULE SINGLE GIGABIT 1 PORT |
2,691 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

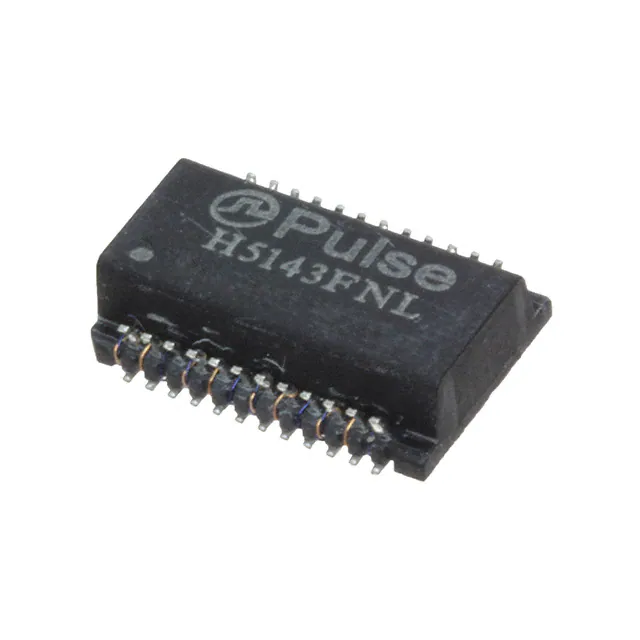

H5143FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,332 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|

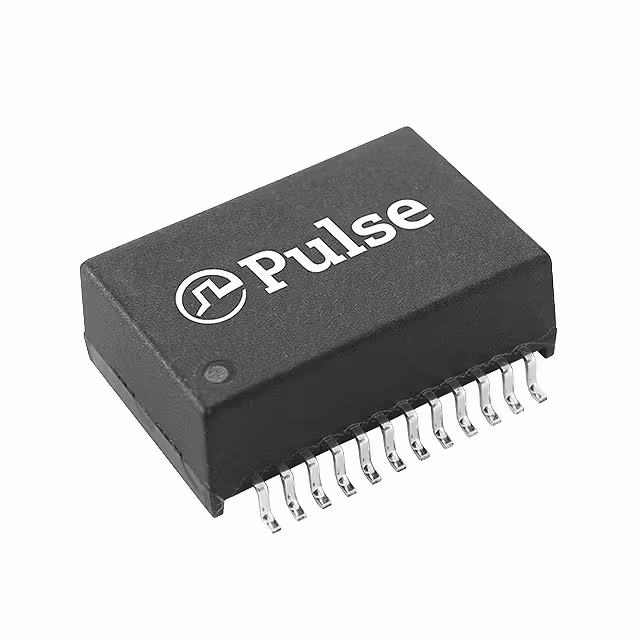

HU4009NLTMDL, SIN 2.5G, 1:1, SMT |
4,783 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.715" L x 0.630" W (18.16mm x 16.01mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
GS9015RM LFMDL 1G DUAL PORT 4PAIR POE 90W |
4,952 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 85°C | - | - |
|
|
T1231NLTXFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 |
3,489 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
HU4006NLTMDL, SIN 2.5G, 1:1, SMT |
2,611 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.540" L x 0.600" W (13.72mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
