Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1200NLMODULE TRANSFRMR DUAL LAN 10/100 |
2,660 | - |
|
Datasheet | - | Tray | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

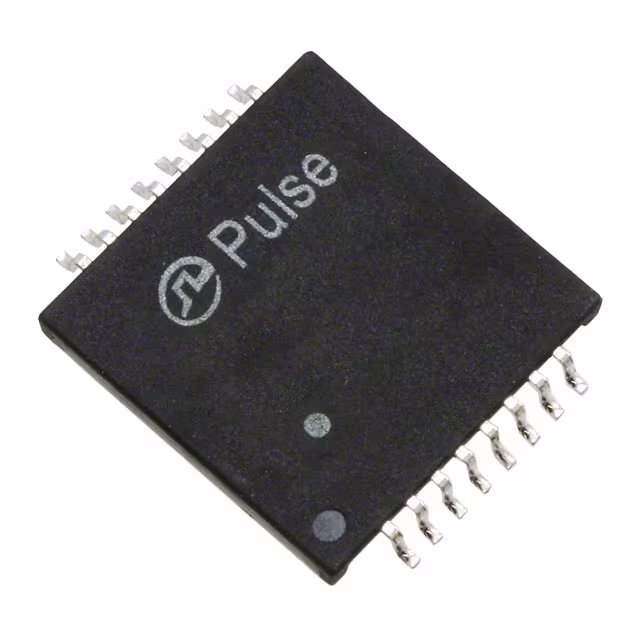

H0009NLMODULE PC CARD SNGL LAN 16PCMCIA |
2,179 | - |
|
Datasheet | - | Tube | Obsolete | - | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
H0019NLMODULE PC CARD SNGL LAN 16PCMCIA |
1,914 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|

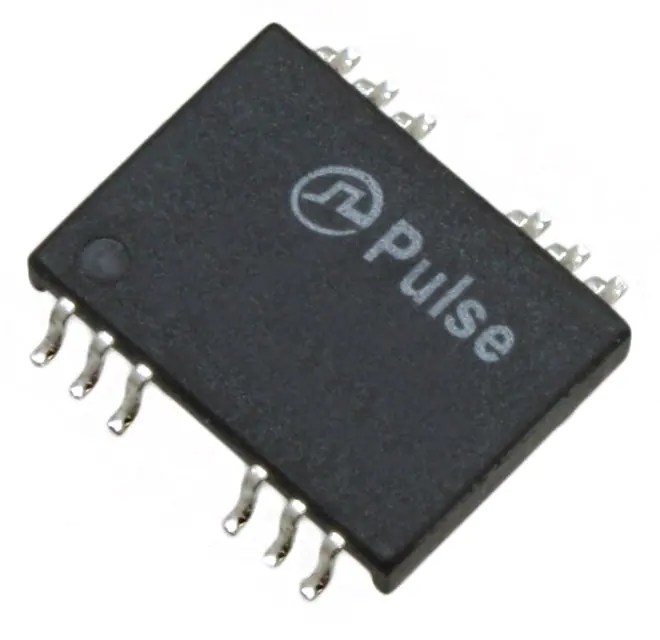

H0022NLMODULE PC CARD SNGL LAN 12PCMCIA |
2,034 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
H1060NLMODULE XFRMR QUAD ETHR LAN40SOIC |
3,427 | - |
|
Datasheet | - | Bulk | Active | LAN | - | - | 1CT:1CT | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1174NLMODULE XFRMR DUAL ETHER LAN 24P |
2,036 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.512" L x 0.500" W (13.08mm x 12.70mm) | 0.155" (3.93mm) | 0°C ~ 70°C | - | - |
|
H2005ANLMODULE XFRMR VOIP DL LAN 24-SOIC |
2,898 | - |
|
Datasheet | - | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.510" L x 0.600" W (12.95mm x 15.24mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
|
H2008NLMODULE XFRMR VOIP DL LAN 24-SOIC |
3,381 | - |
|
Datasheet | - | Tube | Obsolete | LAN | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
H5012NLMODULE DL GIGABIT ETHER LAN 48P |
3,215 | - |
|
Datasheet | - | Bulk | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA1672NLPULSE XFMR 1:4 7.75UH |
4,930 | - |
|
Datasheet | - | - | Obsolete | - | 7.75µH | - | 1:4 | Surface Mount | 0.930" L x 0.860" W (23.62mm x 21.84mm) | 0.450" (11.43mm) | -40°C ~ 130°C | - | - |
