Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

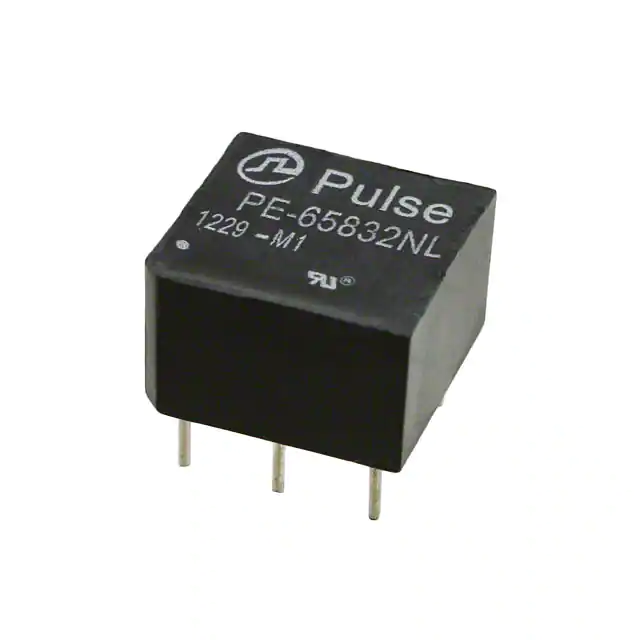

PE-65832NLXFRMR 1:1.36CT 1.20MH T/H |
3,938 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36CT | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
PE-65838NLXFRMR 1:1.14CT 1.50MH T/H |
4,277 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Single) | 1.5mH | - | 1:1.14CT | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-68646NLXFRMR T1/CEPT/ISDN-PRI 1:1.58/2 |
4,572 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Single) | 1.5mH | - | 1:1.58/2 | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
PE-65664NLXFRMR T3/DS3/E3/STS-1 1:2CT 35UH |
1,028 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Single) | 35µH | - | 1:2CT | Through Hole | 0.299" L x 0.402" W (7.60mm x 10.20mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-65663NLXFRMR T3/DS3/E3/STS-1 1:1 40UH |
2,424 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Through Hole | 0.299" L x 0.402" W (7.60mm x 10.20mm) | 0.250" (6.35mm) | - | - | - |
|
|
PE-68995NLXFRMR ISDN S-INTERFACE 1CS:2 T/H |
4,037 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 22mH | - | 1CS:2 | Through Hole | 0.750" L x 0.750" W (19.05mm x 19.05mm) | 0.500" (12.70mm) | 0°C ~ 70°C | - | - |
|
PE-63385XFRMR MOSFET GATE DRIVE 1:1 |
3,913 | - |
|
Datasheet | - | Tray | Obsolete | Gate Drive | 1.5mH | - | 1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
|
PE-65966XFRMR T3/DS3/E3/STS-1 1:1 T/H |
2,456 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Through Hole | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65969NLXFRMR T3/DS3/E3/STS-1 1:2CT T/H |
3,542 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Single) | 19µH | - | 1:2CT | Through Hole | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
PE-65389NLXFRMR T1/CEPT/ISDN-PRI 1:1/1.26 |
1,341 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Single) | 1.5mH | - | 1:1/1.26 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
