Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST6200QNLXFRMR 1:1 SONET/SDH E4/STM-1 SMD |
2,340 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 28µH | - | 1:1 | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
B4064NLXFRMR FOR METALINK VDSL CHIPSET |
4,667 | - |
|
Datasheet | - | Tray | Active | VDSL | 1.134mH | - | 1:3.6 Transmitter, 2:3.6 Receiver | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
T3012NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
3,317 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
B6105NLTTRANSFORMER HOME PHONE NETWORKNG |
1,582 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Data/Voice Coupling | 177µH | - | 1.33:1 | Surface Mount | 0.210" L x 0.330" W (5.33mm x 8.38mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|

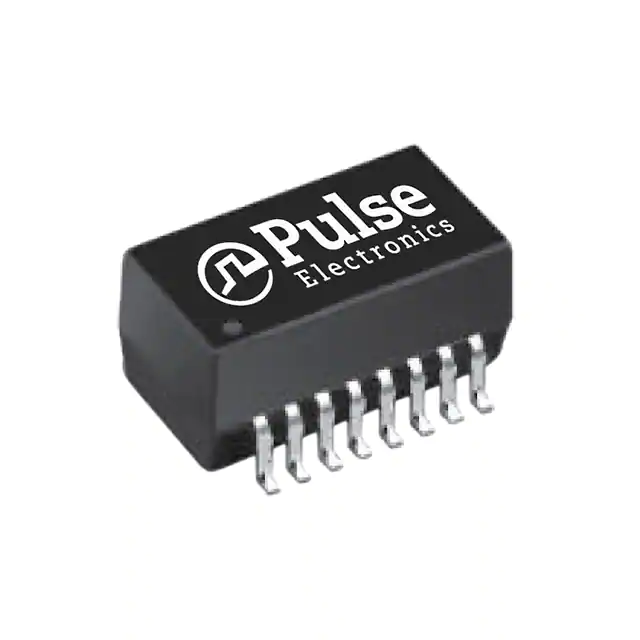

PE-65870NLTXFRMR 1CT:1.15CT/1CT:1.15CT SMD |
4,961 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1.15CT, 1CT:1.15CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
T1021NLTXFRMR 2CT:1/1.26 / 2CT:1/1.26 |
3,059 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 2CT:1/1.26, 2CT:1/1.26 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX3051NLTXFRMR 6PORT 1:1 60UH SMD |
3,411 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
H1060NLTXFRMR MODULE 4PORT 1:1 10/100 |
2,881 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
H1062NLTXFRMR MODULE 4PORT 1:1 10/100 |
3,170 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68864NLTXFRMR 1CT:2CT/1:1 1.2/1.2MH SMD |
2,208 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1:1 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
