Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1105NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
1,654 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T1065NLXFRMR 4PORT 1:2CT 1.2MH SMD |
2,430 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TX1266NLXFRMR 4PORT 1:2 1.2MH SMD |
2,187 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
B6105NLTRANSFORMER HOME PHONE NETWORKNG |
2,645 | - |
|
Datasheet | - | Tube | Active | Data/Voice Coupling | 177µH | - | 1.33:1 | Surface Mount | 0.210" L x 0.330" W (5.33mm x 8.38mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|
|
BX1194WNLXFRMR SHDSL FOR INFINEON CHIPSET |
1,663 | - |
|
Datasheet | - | Tray | Obsolete | SHDSL | 3mH | - | 4.5:1 | Surface Mount | 0.530" L x 0.555" W (13.46mm x 14.10mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
23Z91SMNLXFRMR AUI ETHERNET LAN 16SOIC |
3,382 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

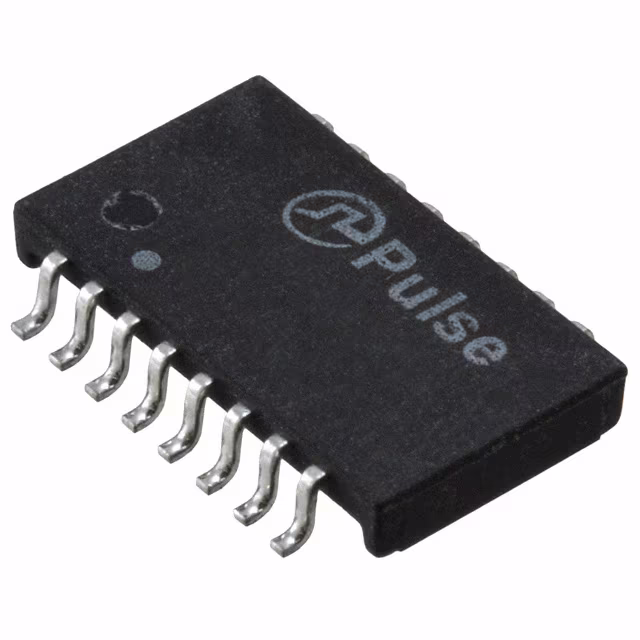

H0056NLXFRMR MODULE 1PORT 1:1 10/100 |
2,923 | - |
|
Datasheet | Star Magnetics™ | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504" L x 0.280" W (12.80mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
|
PE-68056QNLMODULE INTERFACE 10BASE-T SMD |
3,468 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1138NLXFRMR MODULE 1PORT 1:1 10/100 |
3,573 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

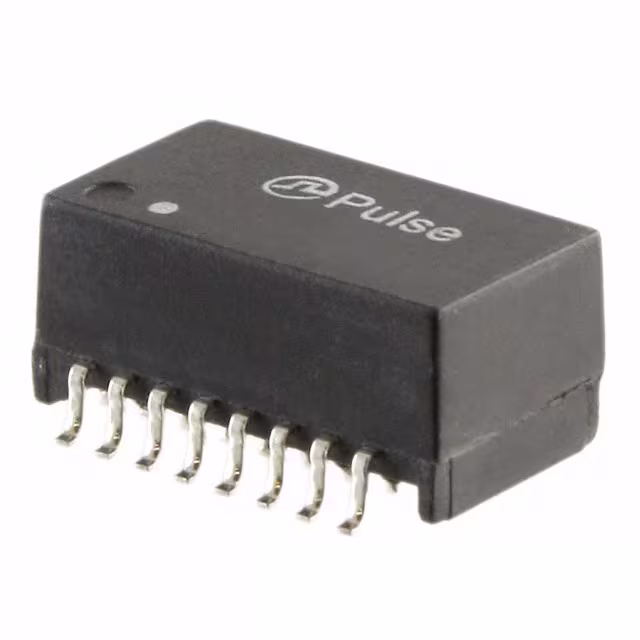

H1101NLXFRMR MAGNTC 1PORT 1.25:1 10/100 |
2,460 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1.25:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
