Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

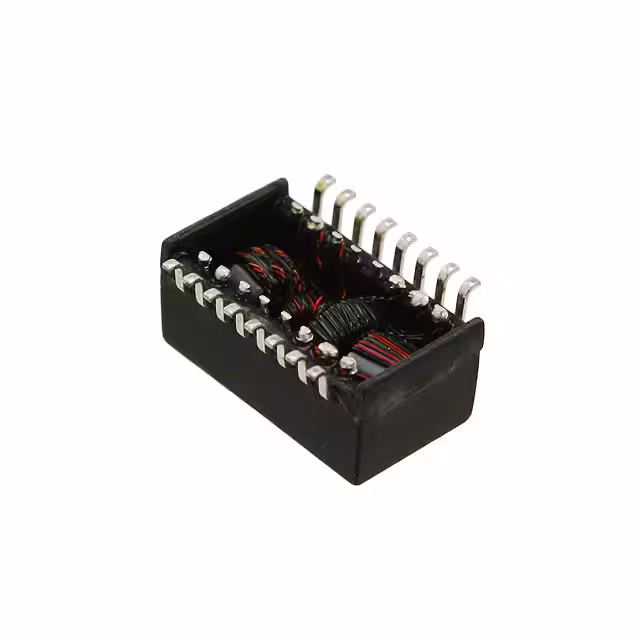

H1121NLXFRMR MAGNT 1PORT 1:1.414 10/100 |
2,837 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.414 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1023NLXFRMR 1CT:1.41CT/1CT:1.41CT SMD |
3,911 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1.41CT, 1CT:1.41CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX9027NLXFRMR 4PORT 1:2 1.2MH SMD |
2,042 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
TX9023NLXFRMR 4PORT 1:2 1.2MH SMD |
1,479 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
TX1467NLXFRMR 1CT:1:1/1CT:1:1 SMD |
4,270 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:1, 1CT:1:1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

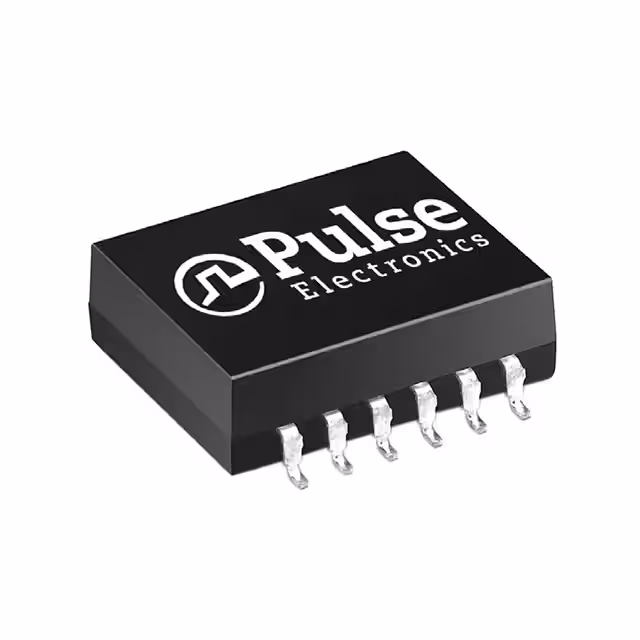

H1126NLXFRMR MODULE 1PORT 1:2 10/100 |
3,914 | - |
|
Datasheet | - | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:2CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
|
H1141NLXFRMR MODUL AUTO MDI/MDIX 10/100 |
1,760 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.495" L x 0.475" W (12.57mm x 12.07mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TX1474NLXFRMR OCTAL 1:2.42 1.2MH SMD |
4,059 | - |
|
Datasheet | - | Tube | Obsolete | T1/E1 (Octal) | 1.2mH | - | 1:2.42 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T1006NLXFRMR 1:2CT 1.2MH SMD |
2,015 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Quad) | 1.2mH | - | 1:2CT | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
T1001NLXFRMR 1:1.36/1 1.2MH SMD |
4,897 | - |
|
Datasheet | - | Tube | Active | T3/E3 (Quad) | 1.2mH | - | 1:1.36/1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
