Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HXB7015HLTMOD DUAL 10GPP 1:1 EXT. HF SMD |
300 | - |
|
Datasheet | HXB | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
HXB7014HLTMOD DUAL 10GD 1:1 EXT. HF SMD |
300 | - |
|
Datasheet | HXB | Tape & Reel (TR) | Active | LAN 10G Base-T | 100µH | - | 1CT:1CT | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 90°C | - | - |
|
|
PE-63386NLXFRMR MOSFET GATE DRIVE 1:1.5 |
124 | - |
|
Datasheet | - | Tray | Active | Gate Drive | 1.5mH | - | 1:1.5 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
|
HX2305NLTXFRMR MODUL 2PORT POE 1:1 10/100 |
700 | - |
|
Datasheet | Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|
|
T5008NLTXFRMR ISDN-S 1:1/1:1 22MH SMD |
398 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1:1, 1:1 | Surface Mount | 0.950" L x 0.580" W (24.13mm x 14.73mm) | 0.300" (7.62mm) | 0°C ~ 70°C | - | - |
|
T1108NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
375 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TX1344NLXFRMR OCTAL 1:1/1:2 1.2MH SMD |
122 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T1231NLXFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 |
109 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
H2009NLTXFRMR MAGNT MOD 2PORT POE 10/100 |
356 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|

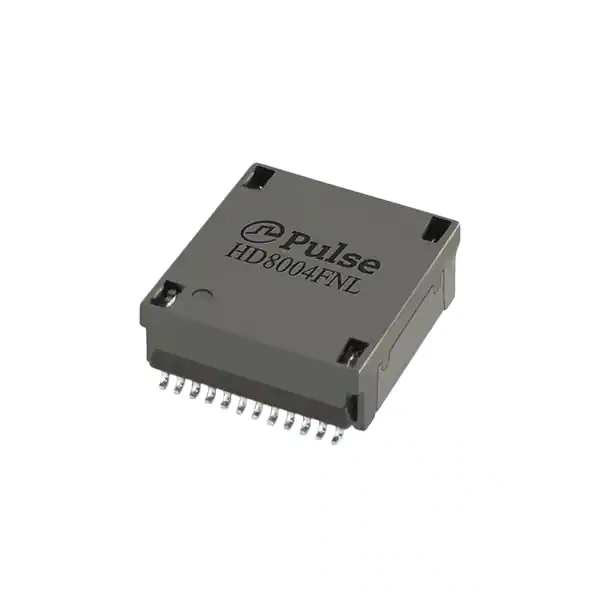

HD8004FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
313 | - |
|
Datasheet | - | Tube | Active | HDBase-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
