Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

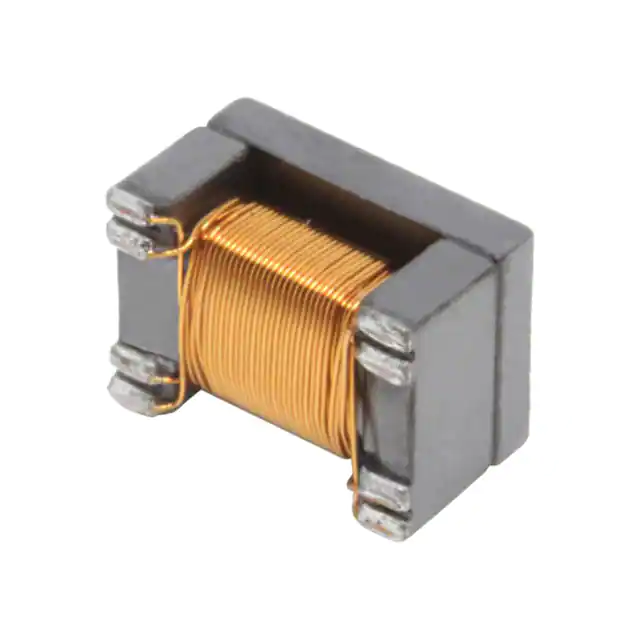

TC1000PTRANSFORMER LAN 1GB PHY POE |
4,155 | - |
|
Datasheet | PulseChip™ | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.185" L x 0.134" W (4.70mm x 3.40mm) | 0.118" (3.00mm) | -40°C ~ 85°C | - | - |
|
PA2777NLTPULSE XFMR 1:1 335.2UH |
850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 335.2µH | 9.3VµS | 1:1 | Surface Mount | 0.291" L x 0.248" W (7.40mm x 6.30mm) | 0.232" (5.90mm) | -40°C ~ 130°C | - | - |
|
PA1528ANLTPULSE XFMR 28.9UH |
1,704 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 28.9µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2454NLTPULSE XFMR 24UH |
800 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
PH9572.322NLTGDT, FUNCTIONAL, EP7, SMT |
11,986 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PE-64934NLXFRMR T1/CEPT/ISDN-PRI 1:1 |
3,054 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PM2155.034NLTXFMR PUSH-PULL SIDE CAR S NPB |
253 | - |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 3CT:4CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
PH9385.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
1,355 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.305" (7.75mm) | - | - | - |
|
|
PA1138NLXFMR PWR EP13 126.7 UH 10 NPB |
544 | - |
|
Datasheet | PA1138NL | Tray | Active | Power over Ethernet (PoE) | 126.7µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PE-65457NLTPULSE XFMR 1:1 80UH |
723 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 80µH | - | 1:1 | Surface Mount | 0.260" L x 0.340" W (6.60mm x 8.64mm) | 0.098" (2.49mm) | 0°C ~ 70°C | - | - |
