Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65967NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
1,247 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65967NLTRANSFORMER TELECOM SINGLE T3/E4 |
857 | - |
|
Datasheet | - | Tube | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65968NLTRANSFORMER TELECOM SINGLE T3/E4 |
192 | - |
|
Datasheet | - | Tube | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|

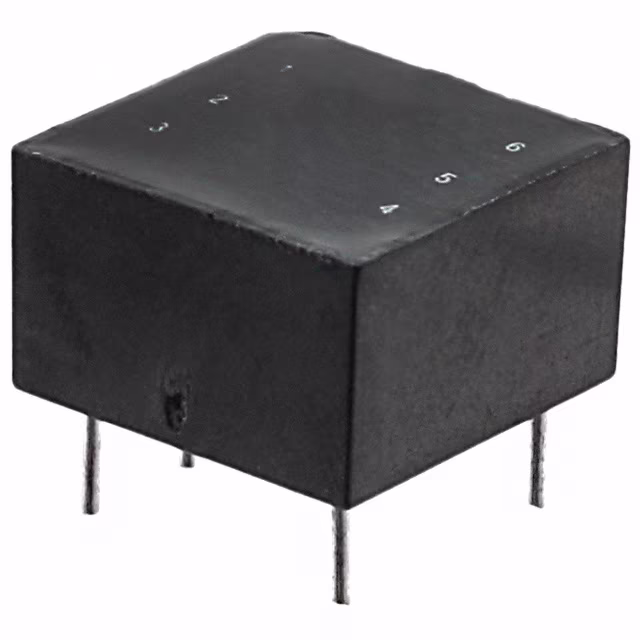

PE-65540NLXFRMR 64KBPS 1CT:1 10MH T/H |
4,478 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 10mH | - | 1CT:1 | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|

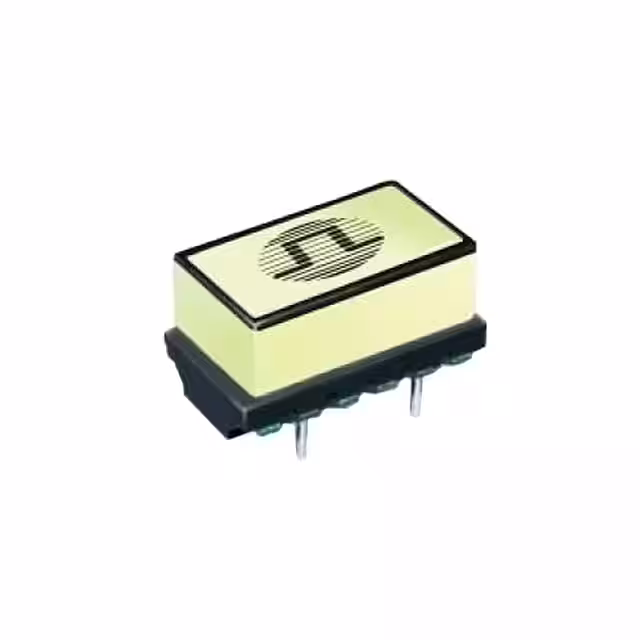

B8813NLPULSE XFMR ADSL/VDSL2 |
137 | - |
|
Datasheet | SmartER Splitter™ | Tray | Obsolete | ADSL, VDSL | - | - | - | Through Hole | 0.551" L x 0.996" W (14.00mm x 25.30mm) | 0.551" (14.00mm) | - | - | - |
|
HMU2102NLTMDL, DUAL, XFMR-CMC, 1:1, 4.3KV, |
4,849 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
H5062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
268 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PE-65848FNLTPULSE XFMR 1CS:1CS TX/RX |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS Transmitter, 1CS:1CS Receiver | Surface Mount | 0.475" L x 0.566" W (12.07mm x 14.37mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HX6062FNLTPULSE XFMR 1CT:1CT TX/RX |
2,336 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

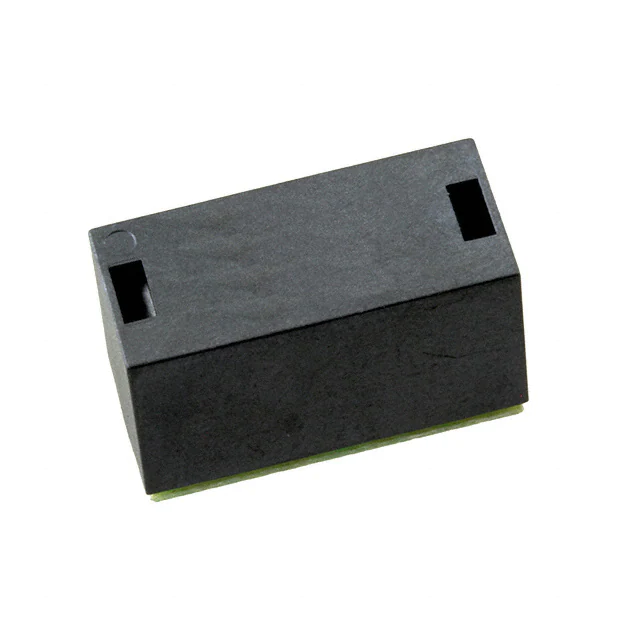

H5610NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
246 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
