Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1837NLPULSE XFMR 4.5UH |
2,586 | - |
|
Datasheet | - | Tray | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H5079NLMODULE MINI-MAG 1PORT 1000BASE-T |
2,985 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|

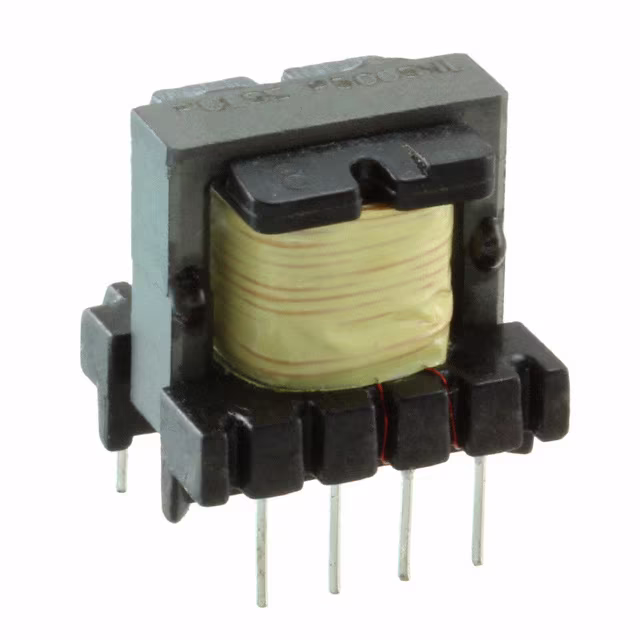

P5005NLPULSE XFMR 1:0.1:0.1 |
3,269 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
.00xNL-Series.jpg "PA3855.002NL")
|
PA3855.002NLPULSE XFMR 48UH |
2,018 | - |
|
Datasheet | - | Tray | Active | - | 48µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|

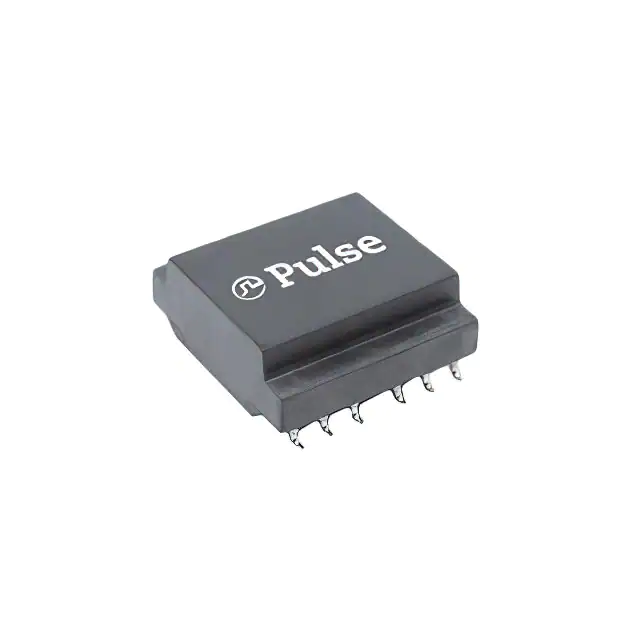

BX6158NLTRANSFORMER 20UH 1:1:1 3KV SMT |
2,350 | - |
|
Datasheet | - | Tube | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445" L x 0.411" W (11.31mm x 10.43mm) | 0.287" (7.30mm) | -40°C ~ 125°C | - | - |
|

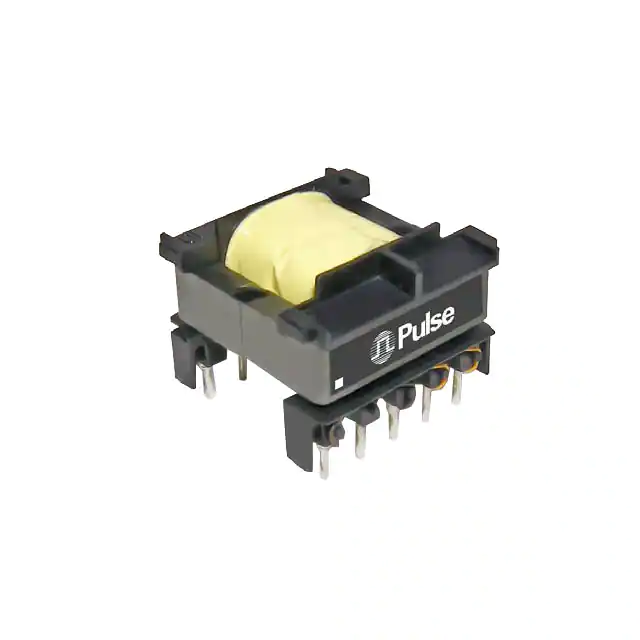

PA1297NLPULSE XFMR 380UH |
1,862 | - |
|
Datasheet | - | Tray | Active | - | 380µH | - | - | Through Hole | 1.100" L x 1.150" W (27.94mm x 29.21mm) | 0.820" (20.82mm) | -40°C ~ 130°C | - | - |
|
|
PA1837NLTPULSE XFMR 4.5UH |
3,530 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H5007EFNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,124 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H6096FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,410 | - |
|
Datasheet | - | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
HX6062FNLPULSE XFMR 1CT:1CT TX/RX |
4,449 | - |
|
Datasheet | - | Bulk | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
