Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7018NLTMODULE 10GBASE-T 1.5KVRMS SMD |
508 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

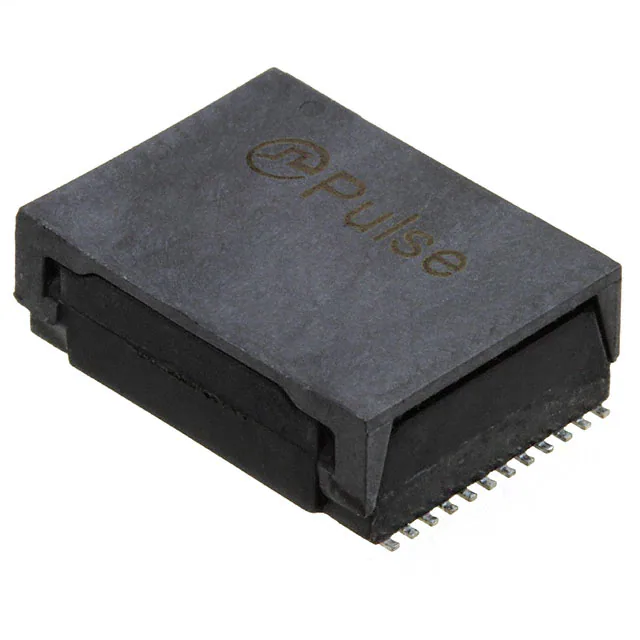

H2009FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
119 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.703" L x 0.518" W (17.86mm x 13.16mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
HX1234TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
214 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
HX7028NLTMDL SIN 10G 1:1 SM TR |
170 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
H6080NLXFRMR MODUL GIGABT 2PORT POE 1:1 |
280 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
HX1224CNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,175 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

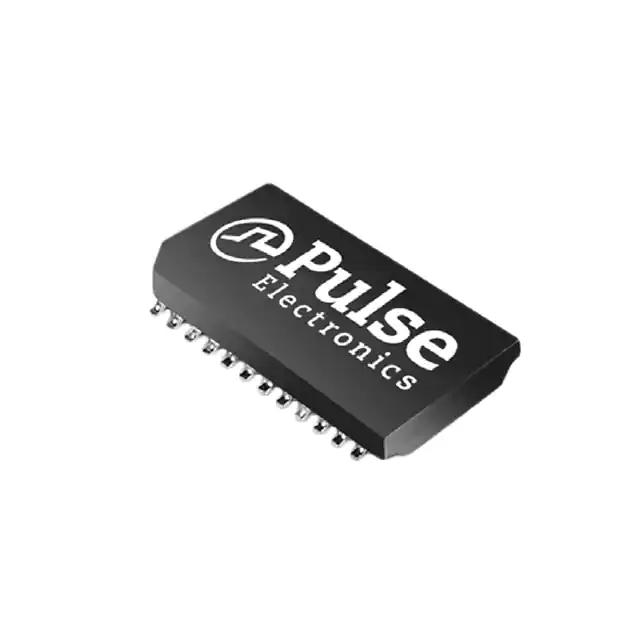

HX5149NLPULSE XFMR 1:1 360UH |
3,043 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 360µH | - | 1:1 | Surface Mount | 0.700" L x 0.390" W (17.78mm x 9.91mm) | 0.126" (3.20mm) | -40°C ~ 85°C | - | - |
|
HX5400NLXFRMR MODL 4PORT POE GIGABIT |
1,667 | - |
|
Datasheet | - | Tray | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | -40°C ~ 85°C | - | - |
|
|
HX6400NLTMDL QUAD 1GPP 1:1 SM TR |
1,894 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
|
TS8121CM HFSMD 10/100 SINGLE PORT POE 15W |
1,807 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
