Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QVP2014RMMDL 5G SINGLE PORT N/A |
1,610 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
E2467NLXFRMR ISOL 10BASE-T 1:2 SMD |
4,753 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 20µH, 100µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
|
GS6014 LFMDL 1G 2 PORT 4PAIR POE 60W |
2,809 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
HX1341NLMDL SIN 100D 1:1 SMT TU |
1,601 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

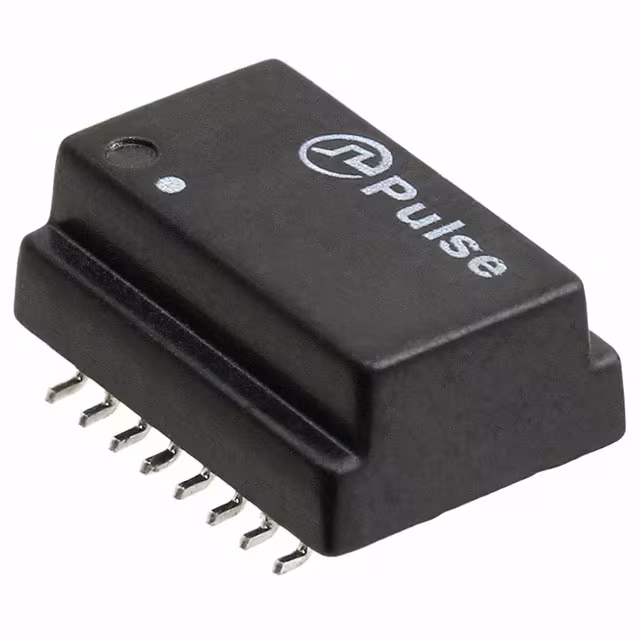

H1100FNLPULSE XFMR 2CT:1CT TX 1CT:1CT RX |
1,991 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 350µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H1100FNLTMDL SIN 100D 2:1 SMT TU |
4,150 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
24SH10410 HFMDL LAN 1GBT POE+ 30W SMD |
2,915 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LG2P109NAM LFMDL 1G DIP DUAL PORT N/A |
2,363 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
|
AVP9014RMMDL 2.5G 1 PORT 4PAIR POE 90W |
1,151 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PE-65363NLXFRMR T1/CEPT/ISDN-PRI 1:4CT T/H |
3,534 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 500µH | - | 1:4CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
