Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

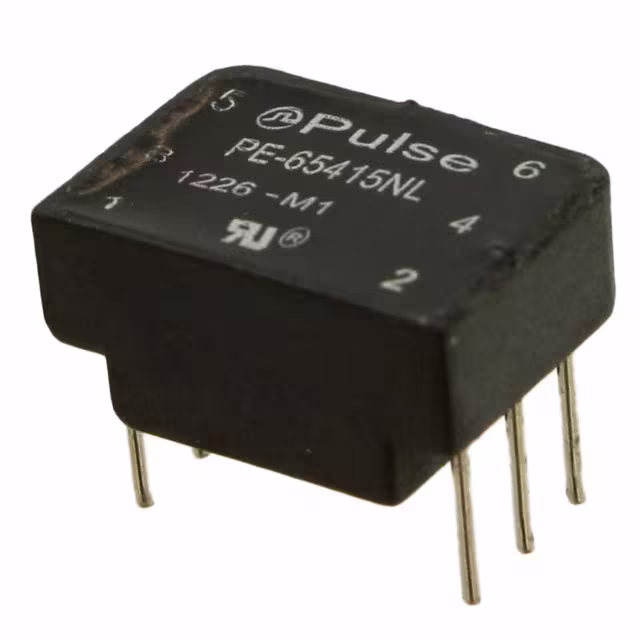

PE-65415NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT |
3,047 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
B2064NLTXFRMR FOR ALCATEL ADSL CHIPSET |
3,637 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | ADSL | 480µH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
HX2260NLXFRMR MODUL 1PORT POE 1:1 10/100 |
4,393 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
AVP6014SMDL 2.5G 1 PORT 4PAIR POE 60W |
2,091 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
H5004ENLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,292 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
H1119NLTXFRMR MODUL 1PORT 1:1.141 10/100 |
2,385 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H0056NLTXFRMR MODULE 1PORT 1:1 10/100 |
4,362 | - |
|
Datasheet | Star Magnetics™ | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 300µH | - | 1:1 | Surface Mount | 0.504" L x 0.280" W (12.80mm x 7.11mm) | 0.088" (2.24mm) | 0°C ~ 70°C | - | - |
|
PE-64936NLXFRMR T1/CEPT/ISDN-PRI 1CT:1 |
4,957 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-64937NLXFRMR T1/CEPT/ISDN-PRI 1:1.36 |
1,235 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1.36 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PE-64943NLXFRMR T1/CEPT/ISDN-PRI 1CT:2CT |
2,302 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
