Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760301103XFRMR GATE DRIVE 2.5:1:1 SMD |
771 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 350µH | 29.4VµS | 2.5:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
7490140123BWE-LAN 10/100 BASE-T SMT TRANSFO |
346 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
749052011TRANSFORMER LAN |
185 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
749050018TRANSFORMER LAN |
372 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.550" L x 0.532" W (13.97mm x 13.50mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
749024012TRANSFORMER WE-LAN 10/100/1000BT |
484 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.125" L x 0.500" W (28.57mm x 12.70mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
7490240120XFRMR WE-LAN 10/100/1000 BASE-T |
348 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
74942300WE-BMS SMT TRANSFORMER -40C TO + |
445 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.559" W (15.10mm x 14.20mm) | 0.187" (4.75mm) | -40°C ~ 125°C | - | - |
|
749014010TRANSFORMER WE-LAN MED 10/100BT |
406 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.341" (8.65mm) | 0°C ~ 70°C | - | - |
|
760301304XFRMR GATE DRIVE SMD |
572 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 1.08mH | 120VµS | 2.5:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

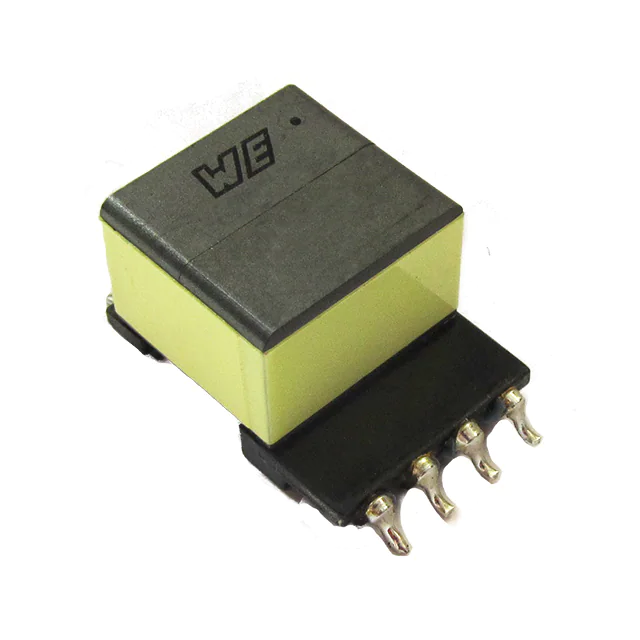

750510719DIGITAL TRANSFORMER |
130 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1µH | - | 1:1 | Surface Mount | - | 0.532" (13.50mm) | - | - | - |
