Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

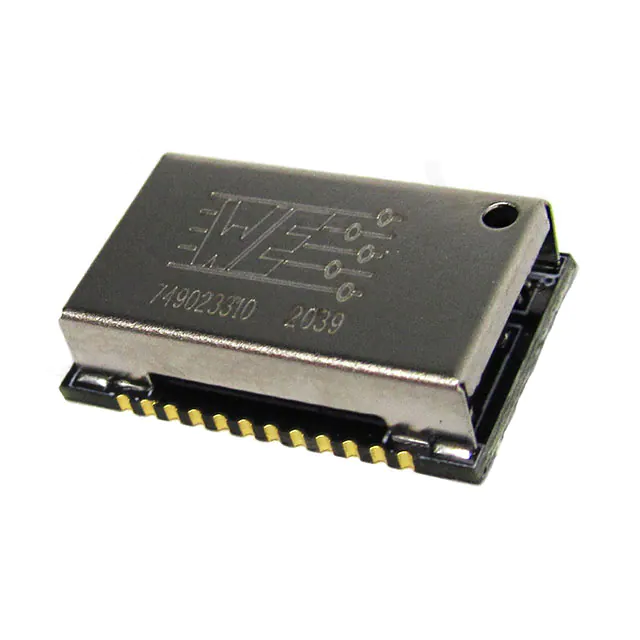

749023310WE-LAN AQ 10/100/1000 BASE-T SMT |
818 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 105°C | - | - |
|
749013310WE-LAN AQ 10/100 BASE-T SMT TRAN |
234 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.67mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
74942301WE-BMS SMT TRANSFORMER -40C TO + |
510 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.559" W (15.10mm x 14.20mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
|
74942302WE-BMS SMT TRANSFORMER -40C TO + |
281 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.594" L x 0.579" W (15.10mm x 14.70mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

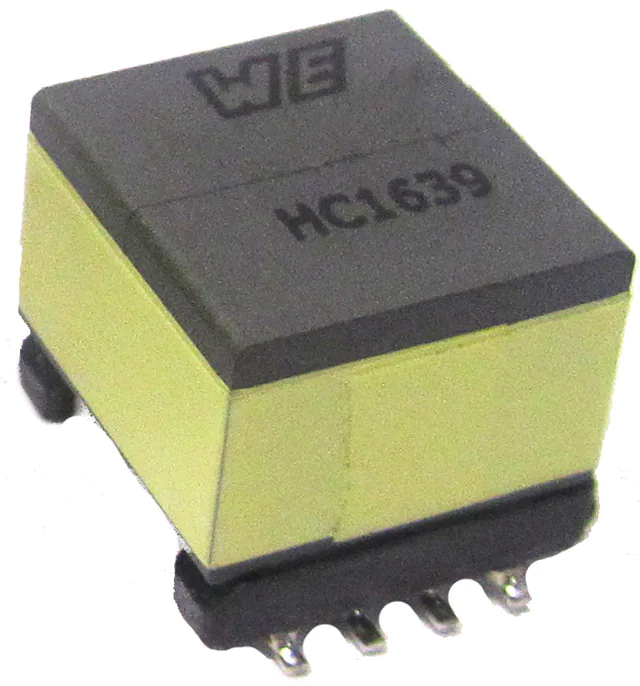

750510730DIGITAL TRANSFORMER |
1,427 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1mH | - | 1:1 | Surface Mount | - | 0.520" (13.20mm) | - | - | - |
|

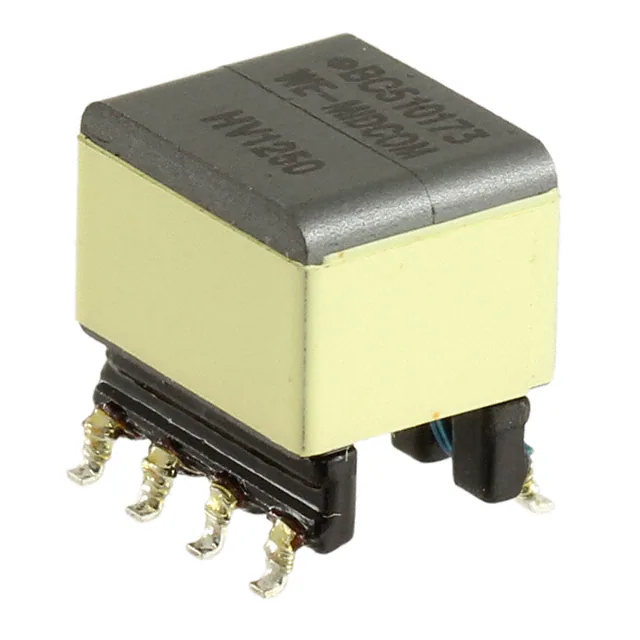

750510173XFRM WE-DSL ISDN DAUGHTERBRD |
868 | - |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 220µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
749023010ATRANSFORMER LAN 10/100/1000 SMD |
182 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
760301306XFRMR GATE DRIVE SMD |
474 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 140VµS | 3:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
760301303XFRMR GATE DRIVE SMD |
198 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 750µH | 102VµS | 2:1:1 | Surface Mount | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

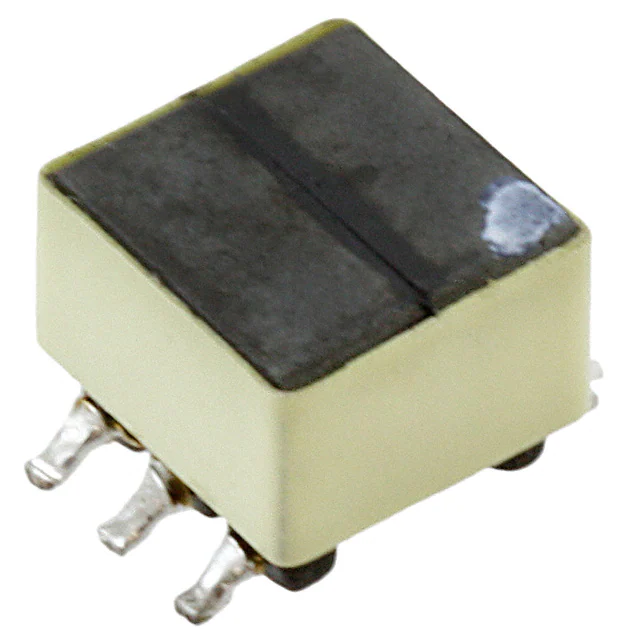

760301105XFRMR GATE DRIVE 1:1:1 SMD |
1,341 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 260µH | 25.2VµS | 1:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
