Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91519L-EBMS TRANSFORMER/CMC,6PIN,SGL,6.4 |
173 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
HCTSM150102HL-ETRANSF HIGH VOLTAGE ISOLATION |
626 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 80µH | 25VµS | - | Surface Mount | 0.839" L x 0.591" W (21.30mm x 15.00mm) | 0.380" (9.65mm) | -40°C ~ 125°C | - | - |
|
SM453229-231N7YCHIP LAN,10/100/1G XFORMER,POE,4 |
1,743 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 200µH | - | 1:1 | Surface Mount | - | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|

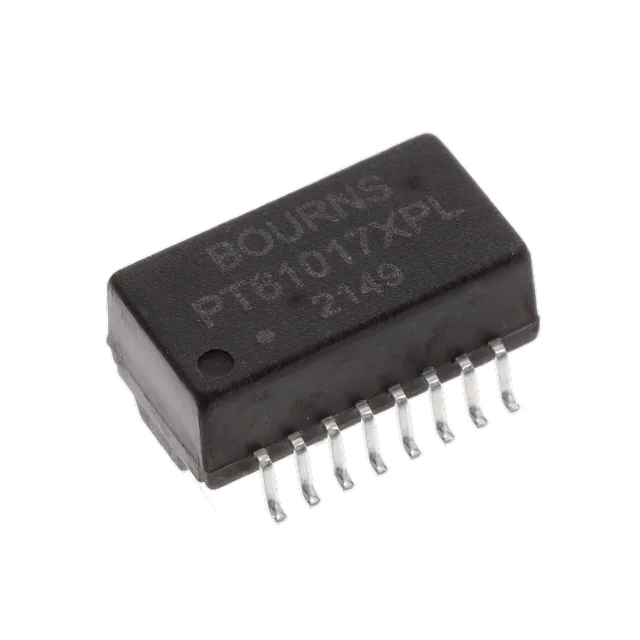

PT61017XPEL10/100 BASE T XFORMER,CMC(TX/RX) |
1,404 | - |
|
Datasheet | PT | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

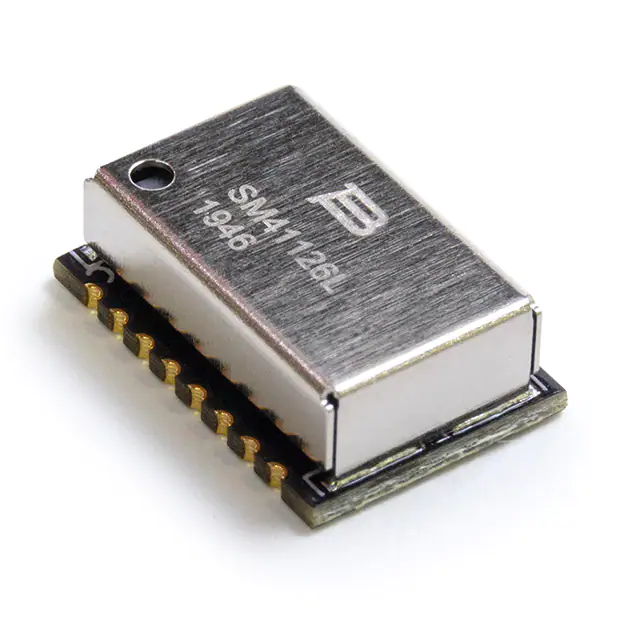

SM41126ELCHIP LAN XFMR MODULE,10/100 TX,W |
1,070 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|
SM42P01ELLAN TRANSFORMER |
153 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 230µH | - | - | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 85°C | - | - |
|
SM91502ALA-EBMS TRANSFORMER/CMC, 6PIN, SGL, |
5,125 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
SM91525AL-ETRANSFORMER CMC BMS 4.3KVDC |
3,089 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

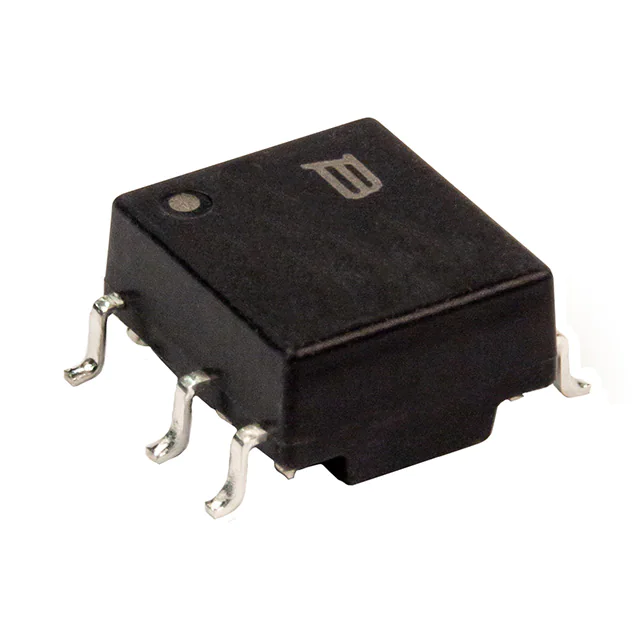

SM91508AL-EXFRMR PULSE 1:1 300UH SMD |
3,468 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | Automotive | AEC-Q200 |
|
SM91501ALO-EBMS TRANSFORMER/CMC, 12PIN, DUAL |
2,000 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
