Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91501AL-EBMS XFORMER 2-CH 1600V AECQ +125 |
4,941 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
SM91074AL-E10/100 BASE T XFORMER AECQ +125 |
2,880 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | Automotive | AEC-Q200 |
|
HCTSM80102AAL-EXFMR 3.3-5V/3.3-15V,350MA PK TR |
1,745 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 1:2 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
SM91534AL-ETRANSF BMS CMC 6.4KVDC 6 PIN |
450 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 1.102" L x 0.492" W (28.00mm x 12.50mm) | 0.374" (9.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
SM91527L-EBMS TRANSFOMER/CMC, 6PIN,SIN, DC |
157 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.374" (9.50mm) | -40°C ~ 125°C | - | - |
|
SM353230-181N7YCHIP LAN XFMR,1 /2.5/5G,3.5X3.2X |
312 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 1/2.5/5G Base-T | 180µH | - | 1:1 | Surface Mount | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|

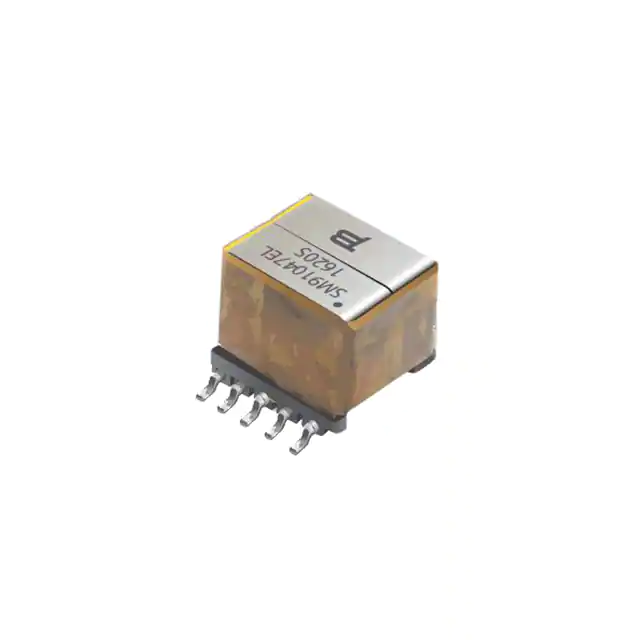

SM91047ELPULSE XFMR 11.875:1 5MH |
378 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 5mH | - | 11.875:1 | Surface Mount | 0.531" L x 0.701" W (13.50mm x 17.80mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|

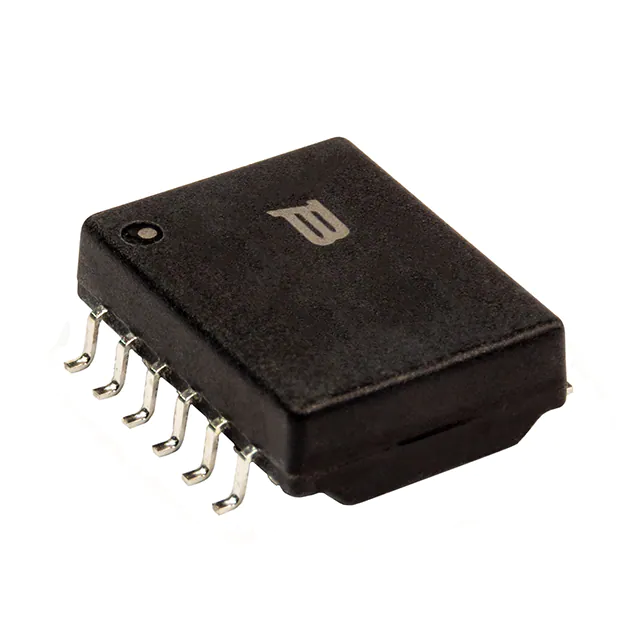

SM91509AL-EXFRMR PULSE 1:1 600UH SMD |
4,313 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 600µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|

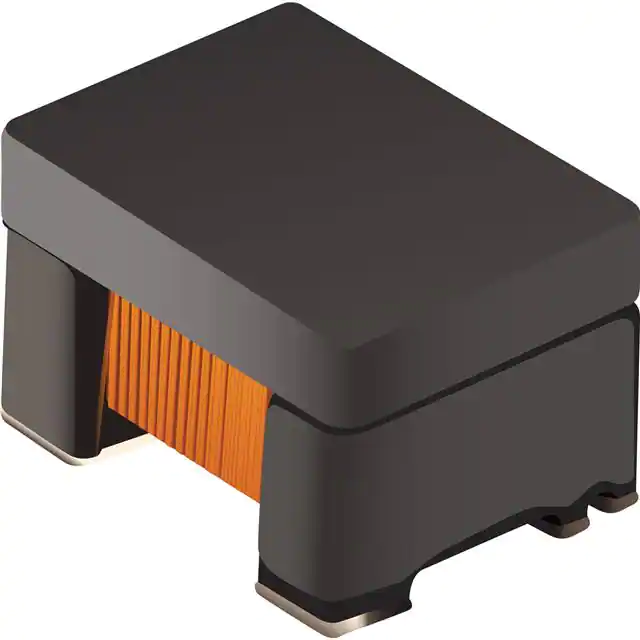

SM453230-231N7YPLAN XFMR,1/2.5/5GBE,POE+,IEEE |
4,602 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 1/2.5/5G Base-T | 230µH | - | 1:1 | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
|
SM453230-181N7YCHIP LAN XFMR,1 /2.5/5G,4.7X3.2X |
2,054 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 1/2.5/5G Base-T | 180µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
