Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91076L-E10/100 BASE-T SINGLE PORT, 16PIN |
5,160 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.524" L x 0.291" W (13.30mm x 7.40mm) | 0.240" (6.10mm) | -40°C ~ 125°C | - | - |
|
SM91536AL-EBMS TRANSFOMER,6PIN,SGL,3KVAC |
2,000 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | Battery Management | 150µH, 450µH | - | 1:1 | Surface Mount | 0.528" L x 0.409" W (13.40mm x 10.40mm) | 0.331" (8.40mm) | -40°C ~ 125°C | - | - |
|
HCTSM100304FL-ETRANSF HIGH VOLTAGE ISOLATION |
4,110 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 400µH | 11.0VµS | 1:1.33 | Surface Mount | 0.620" L x 0.425" W (15.70mm x 10.08mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
SM91872AL-ETRANSF BMS 4KV ISOL 6 PIN |
390 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | Battery Management | 450µH | - | 1:1 | Surface Mount | 0.646" L x 0.417" W (16.40mm x 10.60mm) | 0.319" (8.10mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
SM91604L-ETRANSF CMC LAN 1000B-T |
197 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN | 0.035µH | - | 1:1 | Surface Mount | 1.299" L x 0.772" W (33.00mm x 19.60mm) | 0.413" (10.50mm) | -40°C ~ 105°C | - | - |
|

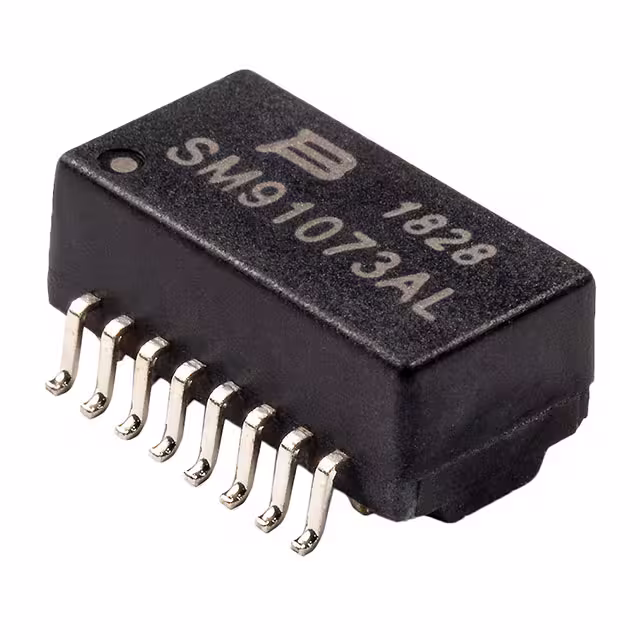

SM91073AL-EXFRMR PULSE 10 BASE-T |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
BA60951CSTRANSF FLYBACK 25UH 2.5W ISO SMD |
531 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
HCTSM80308BAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
788 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 300µH | 11.0VµS | 3:8 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
HCTSM81017CAL-E1XFRMR POWER 10:17 350UH SMD |
473 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 350µH | 11.0VµS | 10:17 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80101AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
146 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 1:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
