Diode Arrays

Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DSP45-12AZ-TRL DIODE ARRAY GP 1200V 45A TO268AA IXYS	1,200	-	RFQ	Datasheet	DSP	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tape & Reel (TR)	Active	1 Pair Series Connection	Standard	1200 V	45A	1.26 V @ 45 A	Standard Recovery >500ns, > 200mA (Io)	-	40 µA @ 1200 V	-40°C ~ 175°C	-	-	Surface Mount	TO-268AA (D3Pak-HV)
DSSK60-02A DIODE ARR SCHOT 200V 30A TO247AD IXYS	874	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Common Cathode	Schottky	200 V	30A	850 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247AD
DCG45X1200NA DIODE MOD SIC 1200V 22A SOT227B IXYS	196	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Obsolete	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	22A	1.8 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	SOT-227B
DCG130X1200NA DIODE MOD SIC 1200V 64A SOT227B IXYS	335	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Obsolete	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	64A	1.8 V @ 60 A	No Recovery Time > 500mA (Io)	0 ns	800 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	SOT-227B

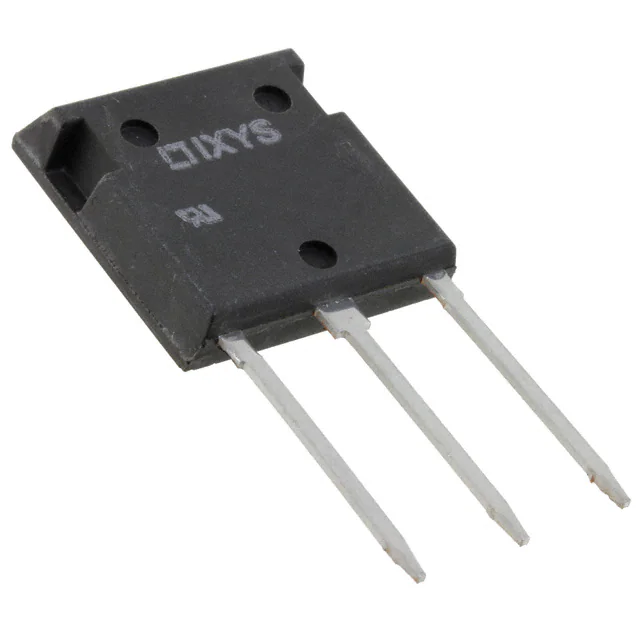

DHH55-36N1F DIODE ARRAY GP 1800V 60A I4PAC IXYS	29	-	RFQ	Datasheet	-	i4-Pac™-3	Tube	Active	1 Pair Series Connection	Standard	1800 V	60A	2.04 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	230 ns	200 µA @ 1800 V	-55°C ~ 150°C	-	-	Through Hole	i4-PAC™
DSEI2X30-06C DIODE MODULE GP 600V 30A SOT227B IXYS	79	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	600 V	30A	1.6 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	100 µA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSEI2X101-12A DIODE MOD GP 1200V 91A SOT227B IXYS	51	-	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	91A	1.87 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	150 ns	3 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
DSP25-16A DIODE ARRAY GP 1600V 28A TO247AD IXYS	99	-	RFQ	Datasheet	-	TO-247-3	Tube	Active	1 Pair Series Connection	Standard	1600 V	28A	1.6 V @ 55 A	Standard Recovery >500ns, > 200mA (Io)	-	2 mA @ 1600 V	-40°C ~ 180°C	-	-	Through Hole	TO-247AD
MDD44-16N1B DIODE MOD GP 1600V 64A TO-240AA IXYS	38	-	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1600 V	64A	1.6 V @ 200 A	Standard Recovery >500ns, > 200mA (Io)	-	10 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
MEE75-12DA DIODE MOD GP 1200V 75A TO-240AA IXYS	8	-	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Series Connection	Standard	1200 V	75A	2.17 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	300 ns	2 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA

WINSUN SOURCING SUPPORT

Need Help Sourcing Diode Arrays?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Diode Arrays FAQ

Common questions about filtering, comparing and sourcing Diode Arrays components.

How can I narrow the Diode Arrays selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Diode Arrays part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
