Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD95-22N1BDIODE MOD GP 2200V 120A TO-240AA |
50 | - |
|
Datasheet | - | TO-240AA | Box | Active | 1 Pair Series Connection | Standard | 2200 V | 120A | 1.43 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 15 mA @ 2200 V | -40°C ~ 150°C | - | - | Chassis Mount | TO-240AA |
|
MEE300-06DADIODE MODULE GP 600V 304A Y4-M6 |
18 | - |
|
Datasheet | FRED | Y4-M6 | Box | Active | 1 Pair Series Connection | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
MEK300-06DADIODE MODULE GP 600V 304A Y4-M6 |
6 | - |
|
Datasheet | FRED | Y4-M6 | Box | Active | 1 Pair Common Cathode | Standard | 600 V | 304A | 1.36 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 12 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|

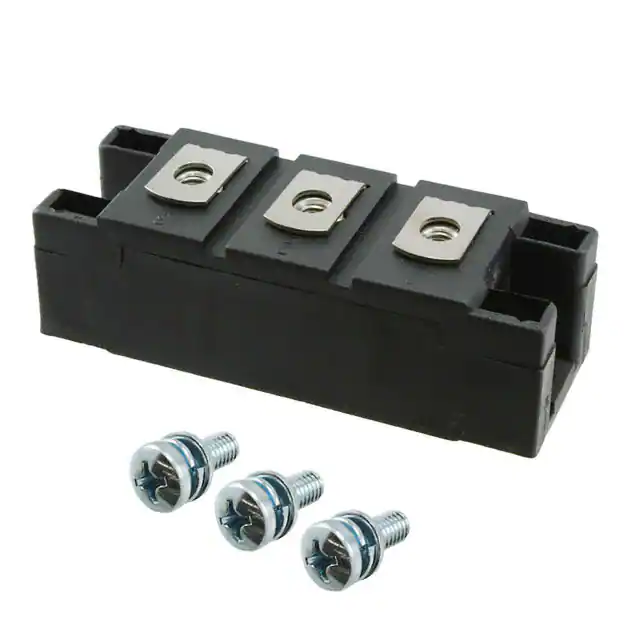

MEK250-12DADIODE MODULE GP 1200V 260A Y4-M6 |
12 | - |
|
Datasheet | FRED | Y4-M6 | Box | Active | 1 Pair Common Cathode | Standard | 1200 V | 260A | 1.8 V @ 260 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 12 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | Y4-M6 |
|
DSEC16-06ADIODE ARRAY GP 600V 10A TO-220-3 |
30 | - |
|
Datasheet | HiPerFRED™ | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 10A | 2.1 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 60 µA @ 600 V | -55°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
DPG20C400PNDIODE ARR GP 400V 10A TO-220ABFP |
96 | - |
|
Datasheet | HiPerFRED²™ | TO-220-3 Full Pack | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 10A | 1.32 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 1 µA @ 400 V | -55°C ~ 175°C | - | - | Through Hole | TO-220ABFP |
|
|
DHG20C1200PBDIODE ARRAY GP 1200V 10A TO2203 |
100 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 1200 V | 10A | 2.22 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 10 µA @ 1200 V | -55°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
DPG60C300QBDIODE ARRAY GP 300V 30A TO-3P |
77 | - |
|
Datasheet | HiPerFRED²™ | TO-3P-3, SC-65-3 | Tube | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.34 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 300 V | -55°C ~ 175°C | - | - | Through Hole | TO-3P |
|
DPG60C200QBDIODE ARRAY GP 200V 30A TO-3P |
34 | - |
|
Datasheet | HiPerFRED²™ | TO-3P-3, SC-65-3 | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 30A | 1.34 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 1 µA @ 200 V | -55°C ~ 175°C | - | - | Through Hole | TO-3P |
|
|
DPG60C400QBDIODE ARRAY GP 400V 30A TO-3P |
79 | - |
|
Datasheet | HiPerFRED²™ | TO-3P-3, SC-65-3 | Tube | Active | 1 Pair Common Cathode | Standard | 400 V | 30A | 1.41 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 1 µA @ 400 V | -55°C ~ 175°C | - | - | Through Hole | TO-3P |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
