Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR30D02DIODE GEN PURP 200V 30A DO5 |
8,757 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

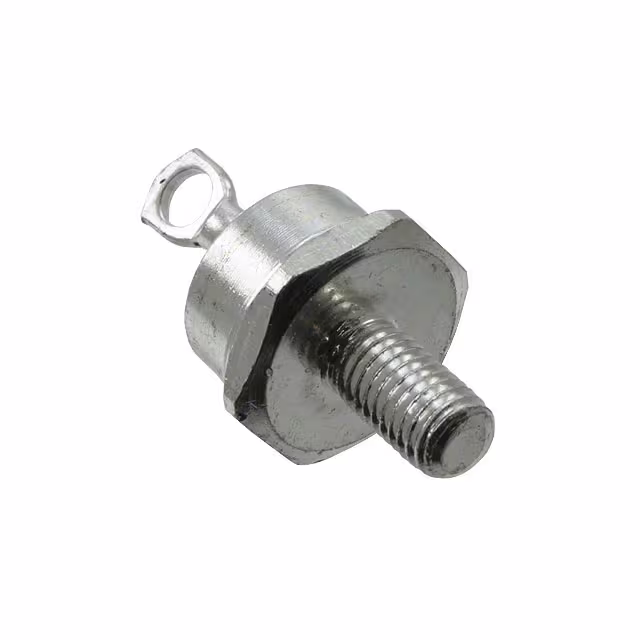

FR30GR02DIODE GEN PURP REV 400V 30A DO5 |
4,516 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30AR02DIODE GEN PURP REV 50V 30A DO5 |
2,974 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 30A | 1.4 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30BR02DIODE GEN PURP REV 100V 30A DO5 |
7,320 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30DR02DIODE GEN PURP REV 200V 30A DO5 |
9,678 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30JR02DIODE GEN PURP REV 600V 30A DO5 |
8,431 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30KR05DIODE GEN PURP REV 800V 30A DO5 |
3,123 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 800 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR30MR05DIODE GEN PURP REV 1KV 30A DO5 |
4,323 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 800 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
GB10MPS17-247DIODE SIL CARB 1.7KV 50A TO247-2 |
7,930 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Not For New Designs | SiC (Silicon Carbide) Schottky | 1700 V | 50A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 12 µA @ 1700 V | 669pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GKN71/04DIODE GEN PURP 400V 95A DO5 |
4,192 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 95A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 180°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
