Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR3540RDIODE SCHOTTKY REV 40V 35A DO4 |
8,321 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3545RDIODE SCHOTTKY REV 45V 35A DO4 |
4,402 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 45 V | 35A | 680 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
|
MBR3580RDIODE SCHOTTKY REV 80V 35A DO4 |
3,046 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 80 V | 35A | 840 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
FR30G02DIODE GEN PURP 400V 30A DO5 |
2 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 30A | 1 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
MUR5010DIODE GEN PURP 100V 50A DO5 |
7,466 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5005DIODE GEN PURP 50V 50A DO5 |
8,811 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 50 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5020DIODE GEN PURP 200V 50A DO5 |
3,660 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
|
MUR5040DIODE GEN PURP 400V 50A DO5 |
5,867 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 50A | 1 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|
FR70G02DIODE GEN PURP 400V 70A DO5 |
3,781 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 70A | 1.4 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|

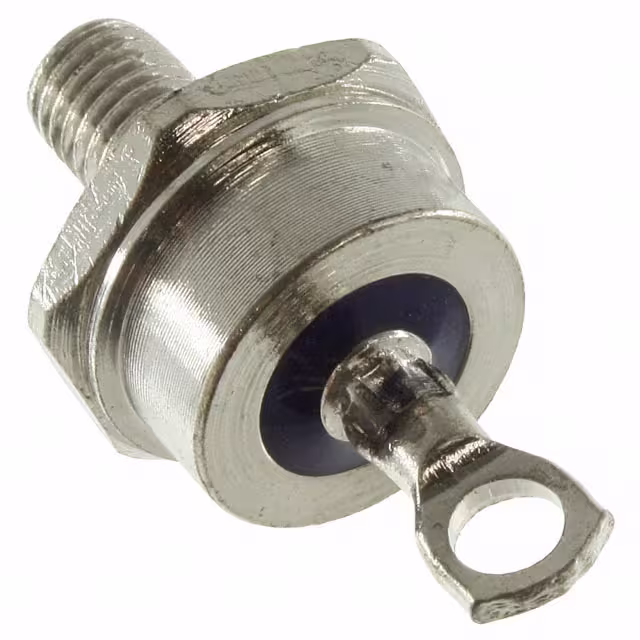

MUR7020DIODE GEN PURP 200V 70A DO5 |
6,400 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 70A | 1 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
