Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5615USDIODE GEN PURP 200V 1A D-5A |
630 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 200 V | 45pF @ 12V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N6642DIODE GEN PURP 75V 300MA DO35 |
6,996 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N5554DIODE GEN PURP 1KV 5A AXIAL |
118 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 2 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|

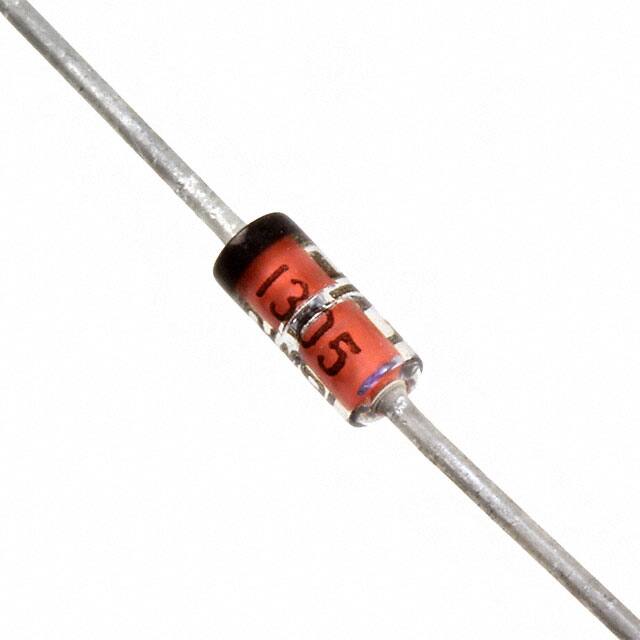

JANTX1N5712-1DIODE SCHOTTKY 20V 750MA DO35 |
154 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 750mA | 1 V @ 35 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5804USDIODE GEN PURP 100V 1A D-5A |
1,182 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N5551USDIODE GEN PURP 400V 5A B SQ-MELF |
155 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/420 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
166 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
148 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N6642DIODE GEN PURP 75V 300MA DO204AH |
434 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

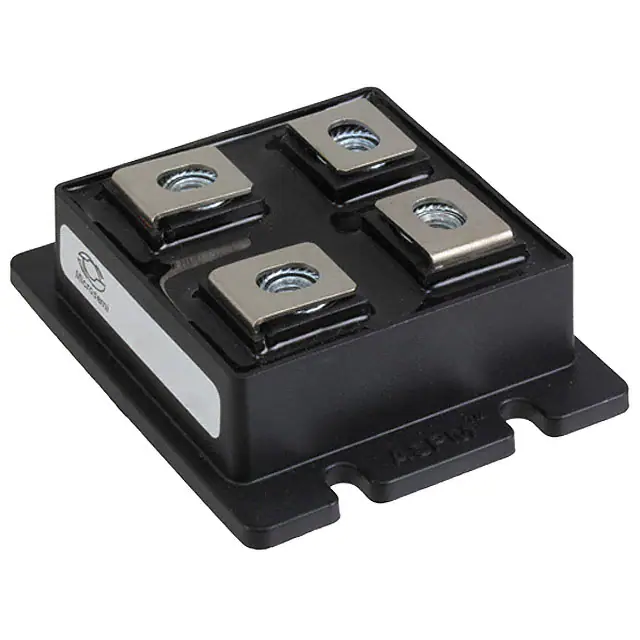

APTDF400U120GDIODE GEN PURP 1.2KV 450A LP4 |
478 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 1200 V | 450A | 2.5 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 2.5 mA @ 1200 V | - | - | - | Chassis Mount | LP4 | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
