Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC030SDA330BDIODE SIL CARB 3.3KV 30A TO247 |
36 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
MCX5622UFR,FRR |
45 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JANS1N5822USDIODE SCHOTTKY 40V 3A B SQ-MELF |
121 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | Military | MIL-PRF-19500/620 | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
UPS120EE3/TR7DIODE SCHOTTKY 20V 1A POWERMITE1 |
8,792 | - |
|
Datasheet | - | DO-216AA | Tape & Reel (TR) | Active | Schottky | 20 V | 1A | 530 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 20 V | - | - | - | Surface Mount | Powermite 1 (DO216-AA) | -55°C ~ 125°C |
|
UPS540E3/TR13DIODE SCHOTTKY 40V 5A POWERMITE3 |
5,000 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 40 V | 5A | 540 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 250pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|
UPS560E3/TR13DIODE SCHOTTKY 60V 5A POWERMITE3 |
57,846 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 60 V | 5A | 690 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|

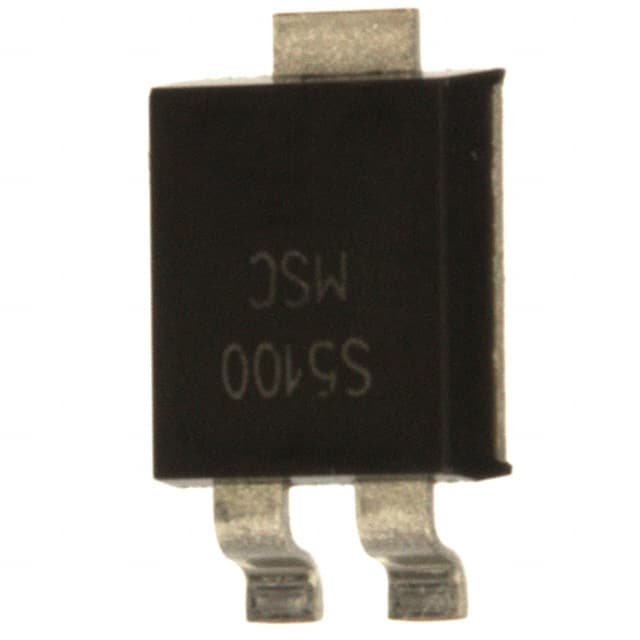

UPS5100E3/TR13DIODE SCHOTTKY 100V 5A POWERMITE |
20,844 | - |
|
Datasheet | - | Powermite®3 | Tape & Reel (TR) | Active | Schottky | 100 V | 5A | 810 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | 150pF @ 4V, 1MHz | - | - | Surface Mount | Powermite 3 | -55°C ~ 125°C |
|
5819SMJE3/TR13DIODE SCHOTTKY 40V 1A DO214AA |
6,906 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Active | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Surface Mount | DO-214AA | -55°C ~ 150°C |
|
1N4150-1DIODE GEN PURP 50V 200MA DO35 |
1,168 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
|
JANTX1N4454-1DIODE GEN PURP 50V 200MA DO35 |
1,165 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | Military | MIL-PRF-19500/144 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
