Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4249DIODE GEN PURP 1KV 1A AXIAL |
5,851 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 1000 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JAN1N5621DIODE GEN PURP 800V 1A AXIAL |
3,676 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|
CDLL1A60/TRDIODE SCHOTTKY 60V 1A DO213AB |
5,440 | - |
|
Datasheet | - | DO-213AB, MELF | Tape & Reel (TR) | Active | Schottky | 60 V | 1A | 690 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | 0.9pF @ 5V, 1MHz | - | - | Surface Mount | DO-213AB | - |
|
JAN1N5712-1/TRDIODE SCHOTTKY 16V 33MA DO35 |
5,698 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | Schottky | 16 V | 33mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
1N5619E3/TRDIODE GEN PURP 600V 1A A AXIAL |
7,282 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 600 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 400 V | 25pF @ 12V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|
1N5419DIODE GEN PURP 500V 3A B SQ-MELF |
4,328 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|

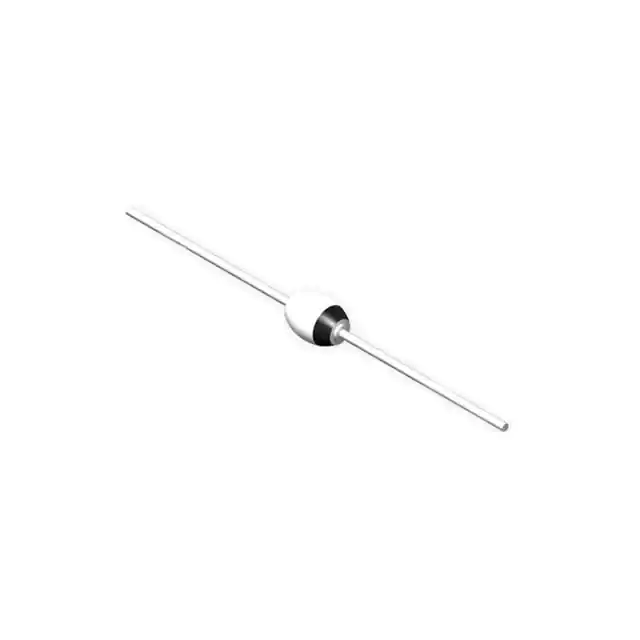

1N5803DIODE GEN PURP 75V 1A AXIAL |
8,532 | - |
|
Datasheet | - | A, Axial | Bulk | Obsolete | Standard | 75 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 75 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JAN1N6638DIODE GEN PURP 150V 300MA AXIAL |
2,367 | - |
|
Datasheet | - | D, Axial | Bulk | Active | Standard | 150 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 150 V | 2.5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | D-5D | -65°C ~ 175°C |
|
CDLL645/TRDIODE GP 225V 400MA DO213AA |
3,163 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 225 V | 400mA | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | 50 nA @ 225 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
1N459AURDIODE GP 200V 150MA DO213AA |
8,293 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 200 V | 150mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 200 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
