Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

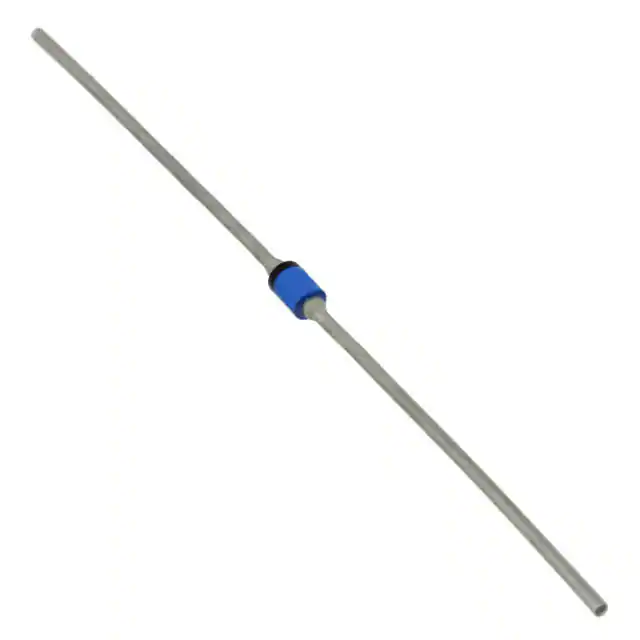

JAN1N4946DIODE GEN PURP 600V 1A AXIAL |
2,026 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 600 V | - | Military | MIL-PRF-19500/360 | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N6643DIODE GEN PURPOSE |
2,257 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 50 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 500 nA @ 50 V | 5pF @ 0V, 1MHz | - | - | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JAN1N5621/TRDIODE GEN PURP 800V 1A |
3,206 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 800 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JAN1N3612DIODE GEN PURP 400V 1A AXIAL |
8,804 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 300 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|

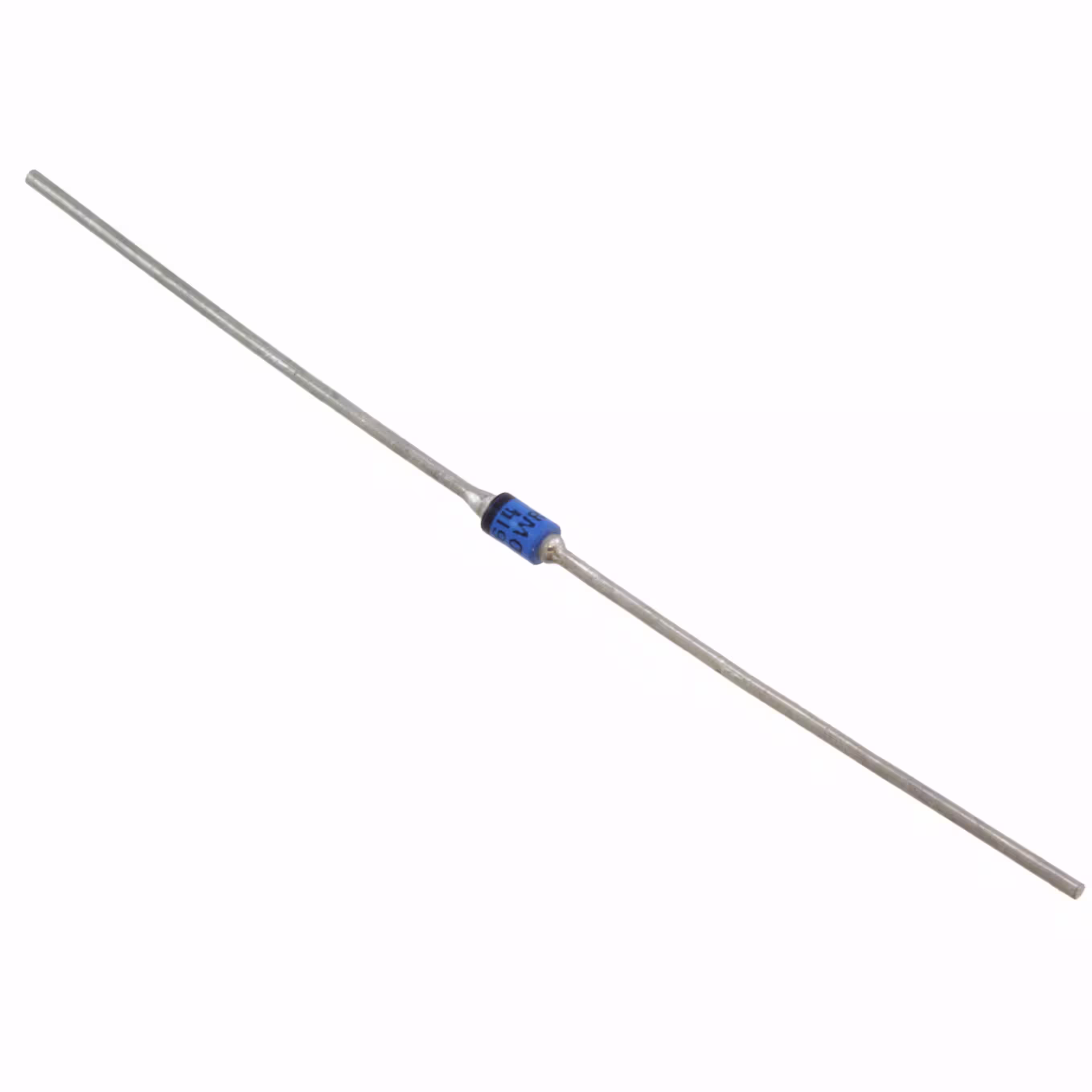

JANTX1N5614DIODE GEN PURP 200V 1A AXIAL |
8,285 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
1N5419/TRDIODE GEN PURP 500V 3A B SQ-MELF |
5,014 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 500 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 1 µA @ 500 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
1N5803/TRDIODE GEN PURP 75V 1A |
9,496 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 75 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 75 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
JAN1N4249/TRDIODE GEN PURP 1KV 1A |
3,399 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 1 V | - | Military | MIL-PRF-19500/286 | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
1N5805/TRDIODE GEN PURP 125V 1A |
2,507 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 125 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 125 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 125°C |
|
|
1N5804/TRDIODE GEN PURP 100V 1A |
8,341 | - |
|
Datasheet | - | A, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
