Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4247DIODE GEN PURP 600V 1A AXIAL |
338 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 5 µs | 1 µA @ 600 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N3595UR-1DIODE GP 125V 150MA DO213AA |
624 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|

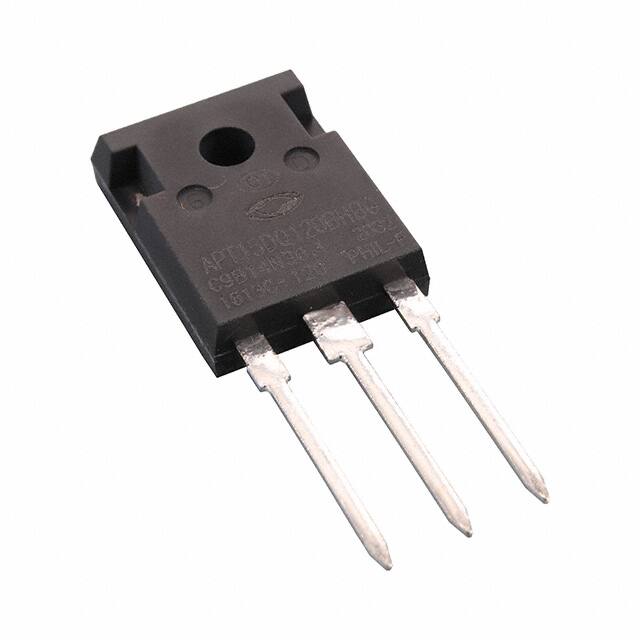

APT15DQ120BHBGDIODE GEN PURP 1.2KV 15A TO247-3 |
101 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | Standard | 1200 V | 15A | 3.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
MSC030SDA070KDIODE SIL CARB 700V 30A TO220-2 |
119 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 30A | 1.5 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
MSC015SDA120BDIODE SCHOTTKY 1.2KV 15A TO247 |
134 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 15A | 1.5 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
|
JANTX1N3595UR-1DIODE GP 125V 150MA DO213AA |
141 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 125 V | 150mA | 920 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 1 nA @ 125 V | - | Military | MIL-S-19500-241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
MSC020SDA120KDIODE SIL CARB 1.2KV 49A TO220-2 |
105 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
UES1104DIODE GEN PURP 200V 1A AXIAL |
105 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 200 V | - | - | - | Through Hole | A, Axial | -55°C ~ 150°C |
|
|
MNS1N6627US/TRDIODE GEN PURP 440V 1.75A E-MELF |
483 | - |
|
Datasheet | - | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 440 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 440 V | - | - | - | Surface Mount | E-MELF | -65°C ~ 150°C |
|
|
1N4153UR/TRSIGNAL OR COMPUTER DIODE |
610 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
